• Model NO.：HD-B609B-S
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Product Name：Tensile Testing Machine
• Test Speed：0.1~500mm,Min (Adjustable by PC)
• Load Precision：≤0.5%
• Stroke：900mm Including Fixture
• Operate and Display：Computer
• Power：One Phase, AC 220V
• Load Resolution：1,250, 000
• Load Cell：Germany Brand Load Cell for High Accuracy
• Transport Package：Strong Wooden Case
• Specification：Atsm
• Trademark：HaiDa
• Origin：Guangdong China
• HS Code：9024109000
• Production Capacity：60sets,Month

Basic Info.

Model NO. HD-B609B-S Control Computer Control Weight 0-100Kg Power Source AC220V Product Name Tensile Testing Machine Test Speed 0.1~500mm/Min (Adjustable by PC) Load Precision ≤0.5% Stroke 900mm Including Fixture Operate and Display Computer Power One Phase, AC 220V Load Resolution 1/250, 000 Load Cell Germany Brand Load Cell for High Accuracy Transport Package Strong Wooden Case Specification Atsm Trademark HaiDa Origin Guangdong China HS Code 9024109000 Production Capacity 60sets/Month

Product Description

            New Product 2KN Touch Screen Computerized Universal Tensile Test Machine

Product Description
This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

Main Technical Parameter


Item	Description
Max. Force	200 kg (2KN)
Load cell	Germany brand load cell for high accuracy
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Stoke	900mm including fixture
Load cellResolution	1/250,000
Load Precision	≤0.5%
Test speed	0.1~500mm/min (adjustable by PC)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features	E-Stop       Over-load protection       Upper and lower limit switches       Load sensor with automatic retreat

Product Features

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101software;b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product materialsuch as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

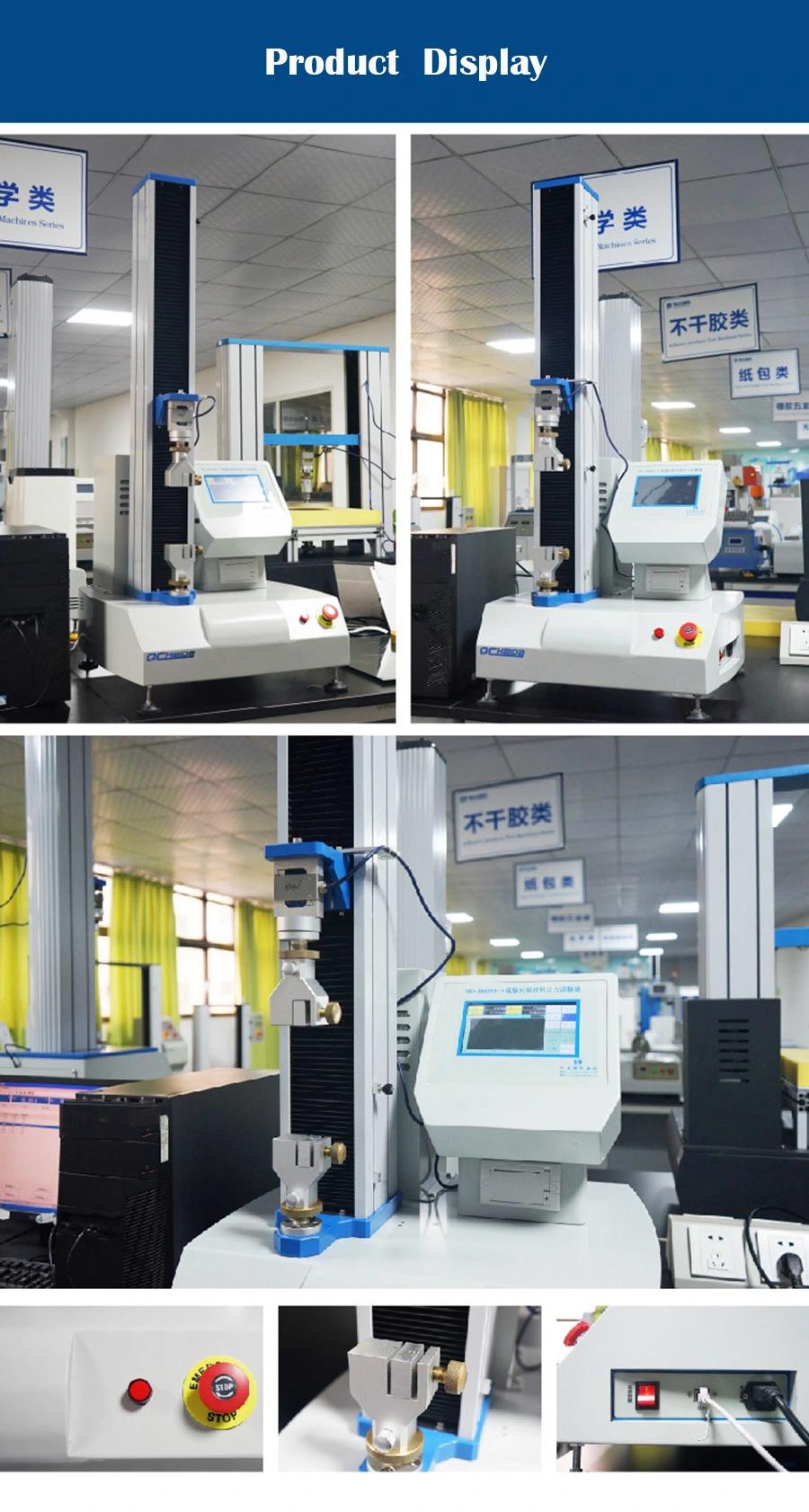

Product detail map

Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
