• Model NO.：SXBP-108kVA,108kV
• Loading Method：Static Load
• Display：LCD
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC 110V,220V at Customized
• Oil Cylinder Position：Under
• AC Withstand Test for：0~220kv
• Max. Capacity：2000kVA
• Output Frequency：45 - 300Hz
• Waveform：Pure Sine Wave
• Frequency Adjustment Sensitivity：0.01Hz
• Transport Package：Plywood Case
• Specification：ISO9001 SGS
• Trademark：Sansion
• Origin：Wuhan, China
• HS Code：9030339000
• Production Capacity：100 Units

Basic Info.

Model NO. SXBP-108kVA/108kV Loading Method Static Load Display LCD Control Computer Control Weight 100-500Kg Power Source AC 110V/220V at Customized Oil Cylinder Position Under AC Withstand Test for 0~220kv Max. Capacity 2000kVA Output Frequency 45 - 300Hz Waveform Pure Sine Wave Frequency Adjustment Sensitivity 0.01Hz Transport Package Plywood Case Specification ISO9001 SGS Trademark Sansion Origin Wuhan, China HS Code 9030339000 Production Capacity 100 Units

Product Description

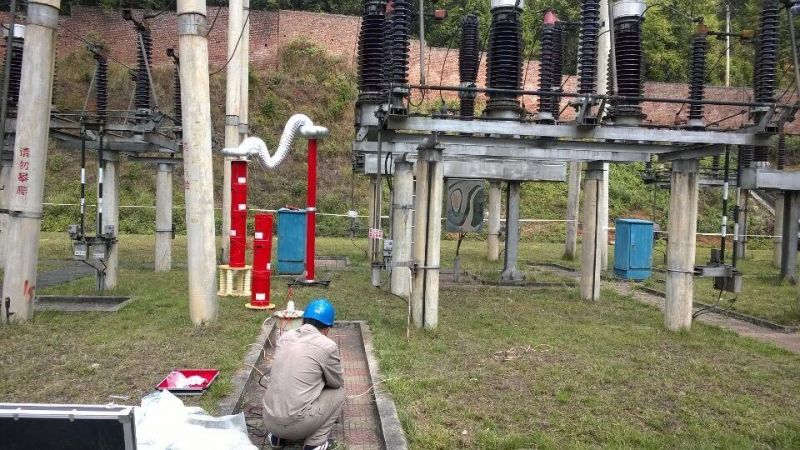

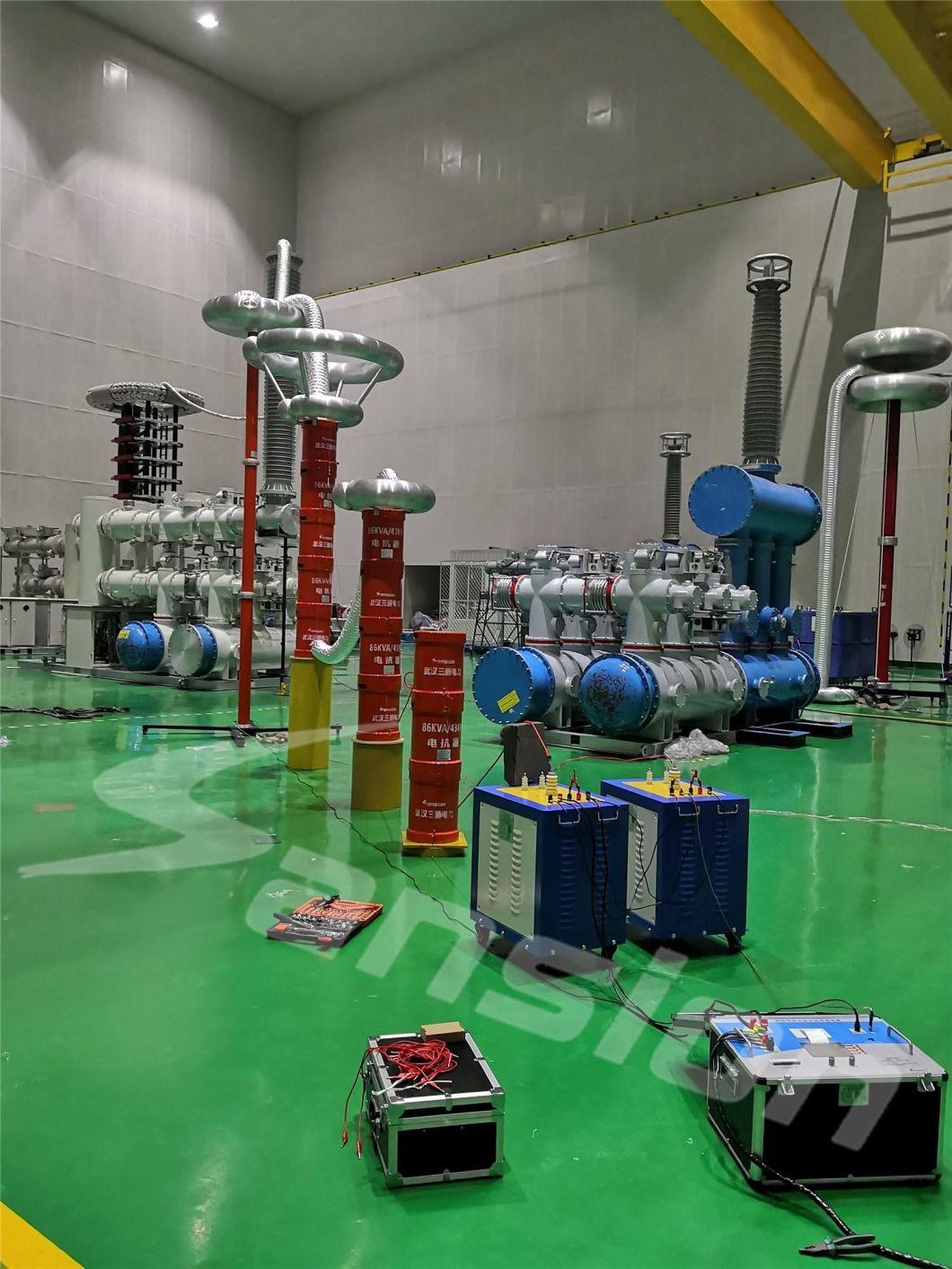

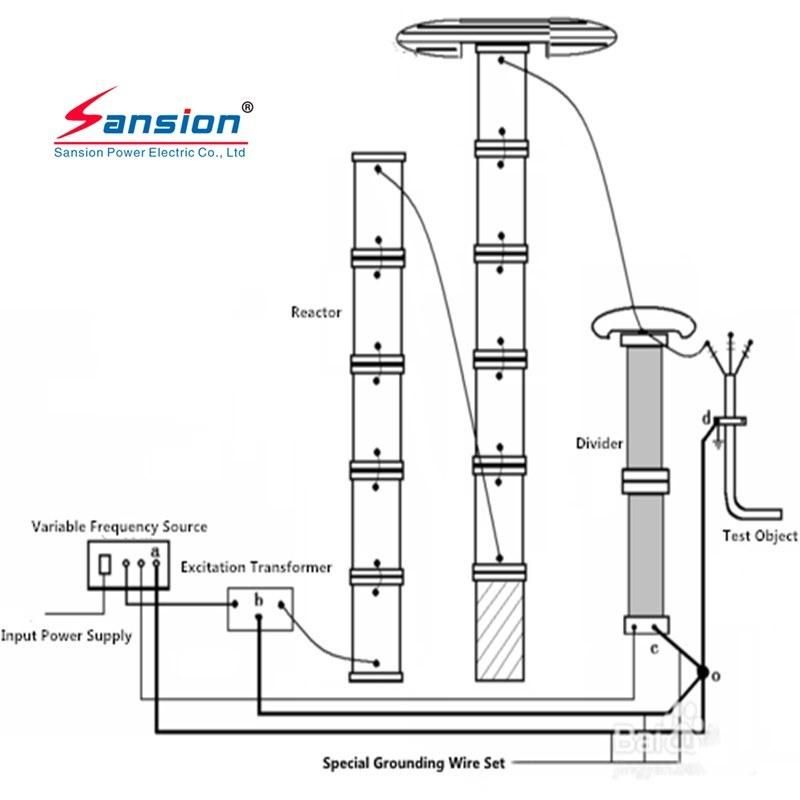

Test Object and Requirement
The system is specially designed for AC withstand voltage test for below items, with
below specifications and requirements.
1) AC withstand voltage test for 10.5kV 5000kW generator, test voltage is not more
than 22kV, test frequency:45~55Hz. Countinous testing duration 1 minute. Test
object capacity ≤0.26uF.
2) AC withstand voltage for 35kV transformer and etc electric power equipments, test
voltage is not more than 108kV, the frequcy: 45~55Hz, continuous testing duration
1 minute. Test object capacity ≤0.02uF.

Technical Data
Rated capacity: 108kVA
Input power supply: single phase 220V±10%, 50Hz
Rated voltage: 54kV; 108kV
Rated current: 2A; 1A
Working Frequency: 30-300Hz
Output waveform: sine wave
Waveform distortion rate: ≤1%
Working time: Constant working of 60mins under rated load. Working of 1min,
under 1.1 times of rated voltage
Temperature rise: ≤65K after constant working of 60mins under rated load
Quality factor: Q ≥30 (f=45Hz)
Protective function: Over-current, over-voltage and flashover protections for test
object.
Accuracy: 1.0% (RMS)

More details please contact with sansion power electric, we can select correctly designed test set for you

Warranty: One year quality guarantee after shipment.
