• Model NO.：GDZRC-10A
• Weight：9kg
• Power Source：AC220V
• Test range：1mA 10mA 1A 5A 10A
• Max. resolution：0.1μΩ
• Max. power：300W
• warranty：1 year
• Resistance range：1-20KΩ
• Accuracy：±0.2% of full range ±2digit
• Data storage：255PCS
• Transport Package：Standard Export Wooden Box
• Specification：200*400*280(mm)
• Trademark：HV Hipot
• Origin：Wuhan, China
• HS Code：9031809090
• Production Capacity：5000sets,Year

Basic Info.

Model NO. GDZRC-10A Weight 9kg Power Source AC220V Test range 1mA 10mA 1A 5A 10A Max. resolution 0.1μΩ Max. power 300W warranty 1 year Resistance range 1-20KΩ Accuracy ±0.2% of full range ±2digit Data storage 255PCS Transport Package Standard Export Wooden Box Specification 200*400*280(mm) Trademark HV Hipot Origin Wuhan, China HS Code 9031809090 Production Capacity 5000sets/Year

Product Description

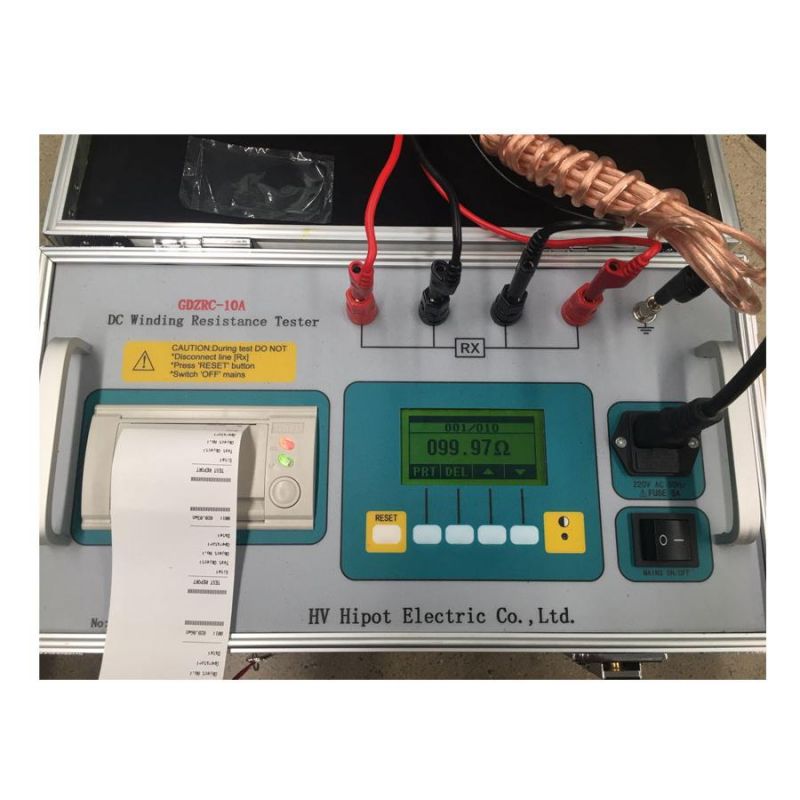

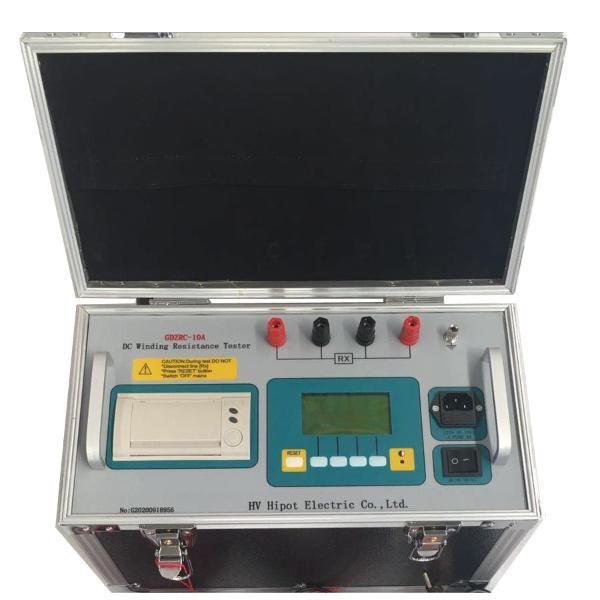

GDZRC-10A Transformer DC Winding Resistance Tester

I. General Information

GDZRC series DC Winding Resistance Tester is designed to measure DC resistance of inductive devices, such as transformers and power inductors. It has features of fast measurement, small size and high accuracy, which make it an ideal equipment for measuring DC resistance of transformer winding and high inductive equipments.

II. Features

1. LCD screen and built-in printer. Light weight, small volume.
2. Four leads measurement to ensure measuring accuracy.
3. Program-controlled current source to increase measuring speed.
4. Automatic discharge and discharge indication, to avoid error and ensure safety.

III. Specifications
 1.Test current: 1mA, 10mA, 1A, 5A, 10A
2. Measuring range:1mA:10Ω~20kΩ
                            10mA:1Ω~2kΩ
                             1A:10mΩ~20Ω
                             5A:1mΩ~4Ω
                             10A: 1mΩ~2Ω
3. Accuracy:              ±0.2%*(full range)±2 digit
4. Data saving capacity:   255 groups
5. Display:               LCD (4 1/2 digit)
6. Max.resolution:        0.1μΩ
7. Power supply:         AC 220V±22V,50Hz±2 Hz (fuse is 5A)
8. Max.consumption:     300W, when test current is 10A
9. Working conditions:    Temperature: 0-40°C
 Relative humidity: ≤80%
10. Dimensions:          200mm*400mm*280mm
11. Weight:              10kg

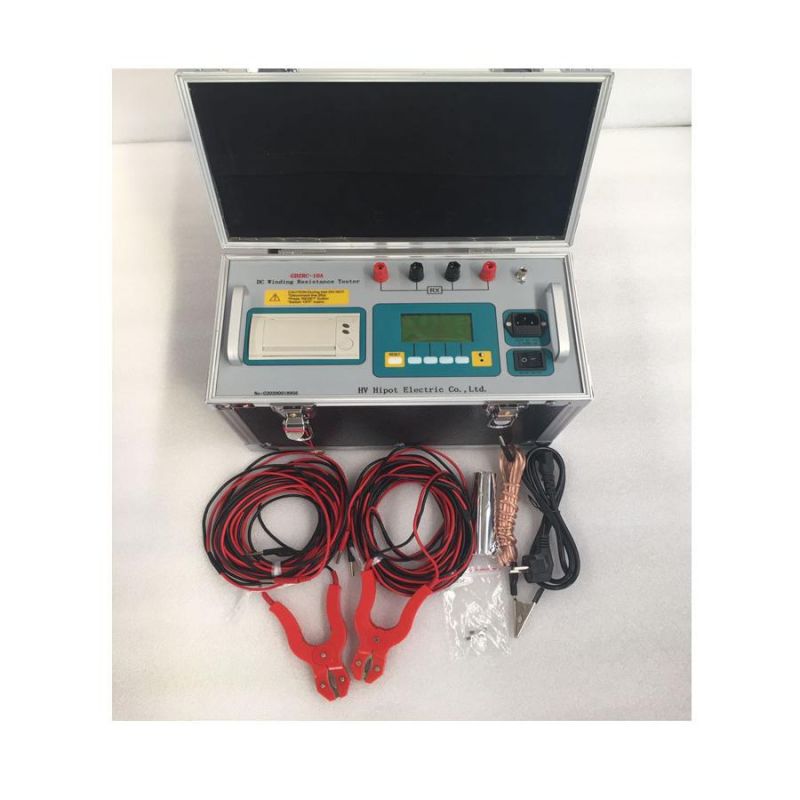

Accessories

Main Unit                1 pc
Power Cord              1 pc
Test Lead                2 pcs
Fuse                    2 pcs
Print Paper               2 rolls
Ground Cable            1 pc
User's Guide             1 copy
Test Report              1 copy
