• Model NO.：WDW-200
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：None
• Delivery Time：10-20 Days
• Certiification：Ce ISO
• Extend Configuration：Large Deformation Extensometer
• Load Cell Configuration：One(Max Load), More Load Cells Can Be Added Accord
• Tensile Space：550mm
• Test Speed：200mm,Min
• Adjustment Scope of Deformation Rate：0.005~5%Fn,S
• Transport Package：Standard Export Packing
• Specification：1000*650*2150mm
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDW-200 Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position None Delivery Time 10-20 Days Certiification Ce ISO Extend Configuration Large Deformation Extensometer Load Cell Configuration One(Max Load), More Load Cells Can Be Added Accord Tensile Space 550mm Test Speed 200mm/Min Adjustment Scope of Deformation Rate 0.005~5%Fn/S Transport Package Standard Export Packing Specification 1000*650*2150mm Trademark HST Origin China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

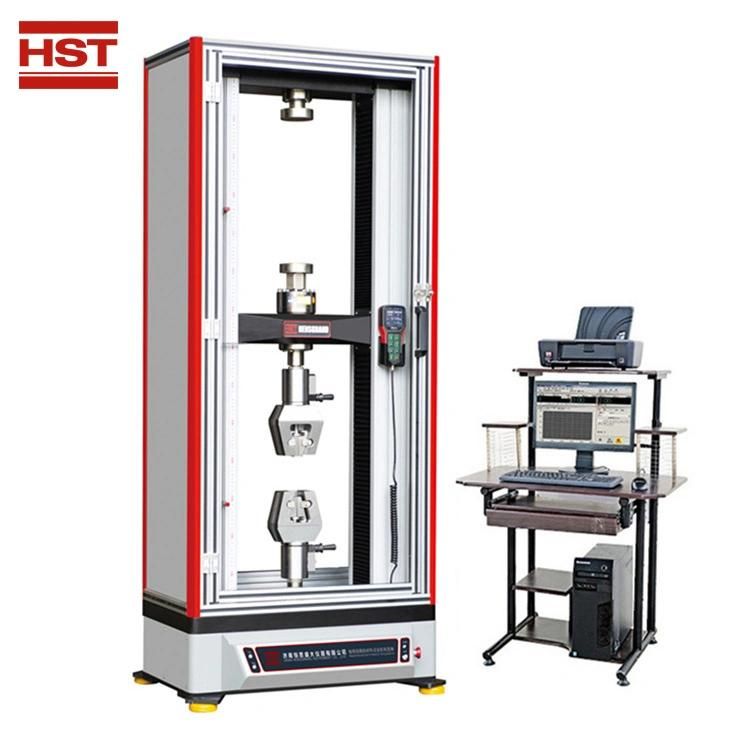

20mt Tabletop Electromechanical Universal test equipment



1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:

Model	WDW-200
Max. Load	200 KN
Structure	Four-column Floor Model (Upper Is Compression And Lower Is Tensile)
Control Method	Computer Automatic Control
Load Accuracy	1 Class
Load Range	2%~100% FS
Resolution	1/300000
Measuring Range Of Deformation	0.2%~100%
Accuracy Indication Of Deformation	≤±0.5%
Disp. Indicating Relative Error	≤±1%
Displacement Resolution	0.04um
Adjusting Range Of Control Rate Of Load	0.005~5%FS/S
Control Precision Of Control Rate Of Load	When rate < 0.05% FS/s, the precision is within ± 2% of setting value; When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value.
Adjustment Scope Of Deformation Rate	0.005~5%FN/S
Accuracy Of Deformation Rate	Test Speed<0.05%FN/s, within the ±2% of the preset value, Test Speed≥0.05%FN/s, within the ±0.5% of the preset value.
Adjusting Range Of  Displacement Rate	0.05~200mm/min (Can be customized)
