• Model NO.：WDW-5 single column
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：None
• Delivery Time：5 Days After Get Payment
• Certification：Ce and ISO
• Max. Load：5kn
• Structure：Single Column Double Spaces
• Load Range：2%~100% Fs
• Tensile Space：600mm or Customized
• Grips：Wedge Type or Customized
• Test Speed：0.05~500mm,Min
• Displacement Resolution：0.01mm
• Color：Silver or Blue or Your Choice
• Transport Package：Standard Export Wooden Box
• Specification：425*400*1315mm
• Trademark：HST or OEM
• Origin：China
• HS Code：9024800000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDW-5 single column Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position None Delivery Time 5 Days After Get Payment Certification Ce and ISO Max. Load 5kn Structure Single Column Double Spaces Load Range 2%~100% Fs Tensile Space 600mm or Customized Grips Wedge Type or Customized Test Speed 0.05~500mm/Min Displacement Resolution 0.01mm Color Silver or Blue or Your Choice Transport Package Standard Export Wooden Box Specification 425*400*1315mm Trademark HST or OEM Origin China HS Code 9024800000 Production Capacity 200 Sets Per Month

Product Description

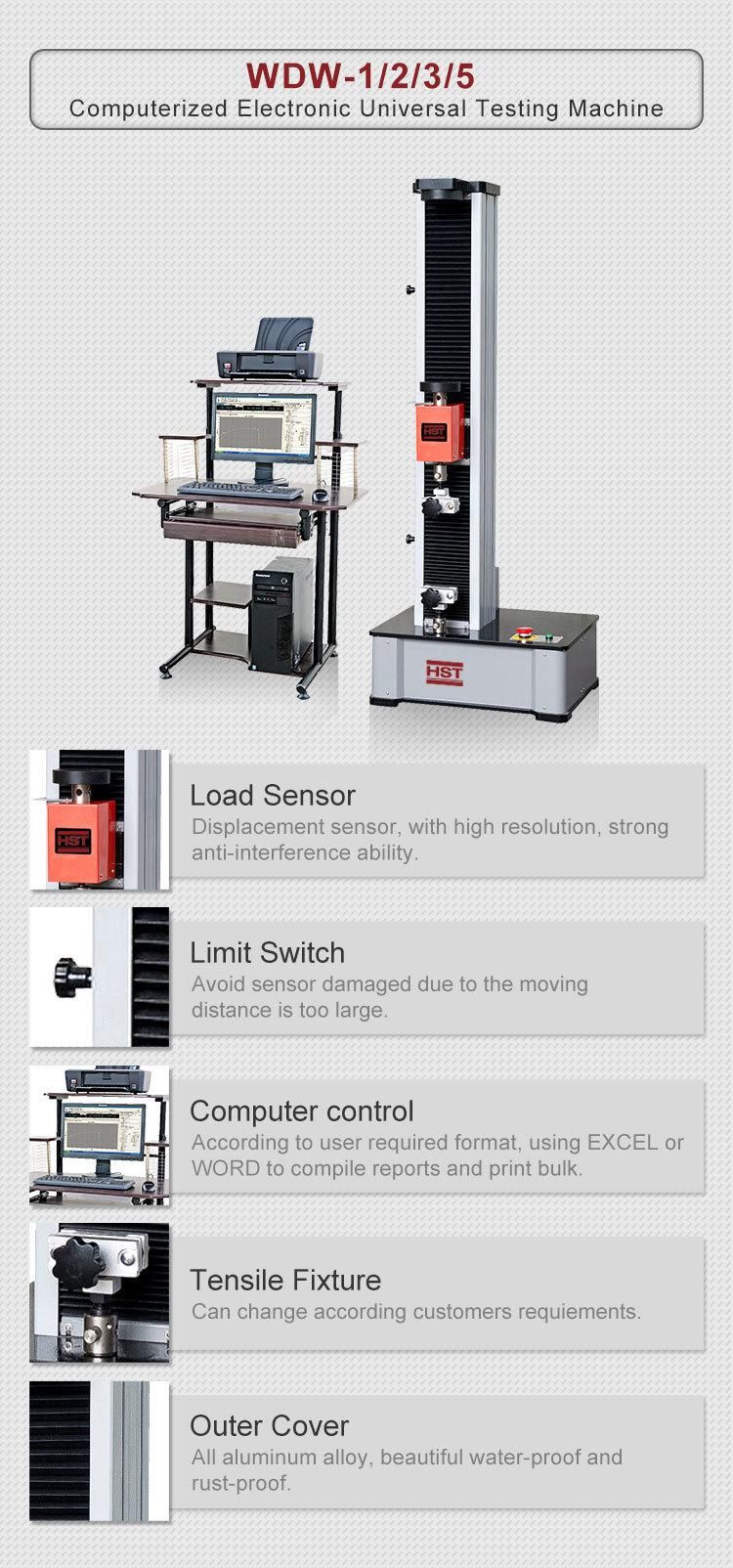

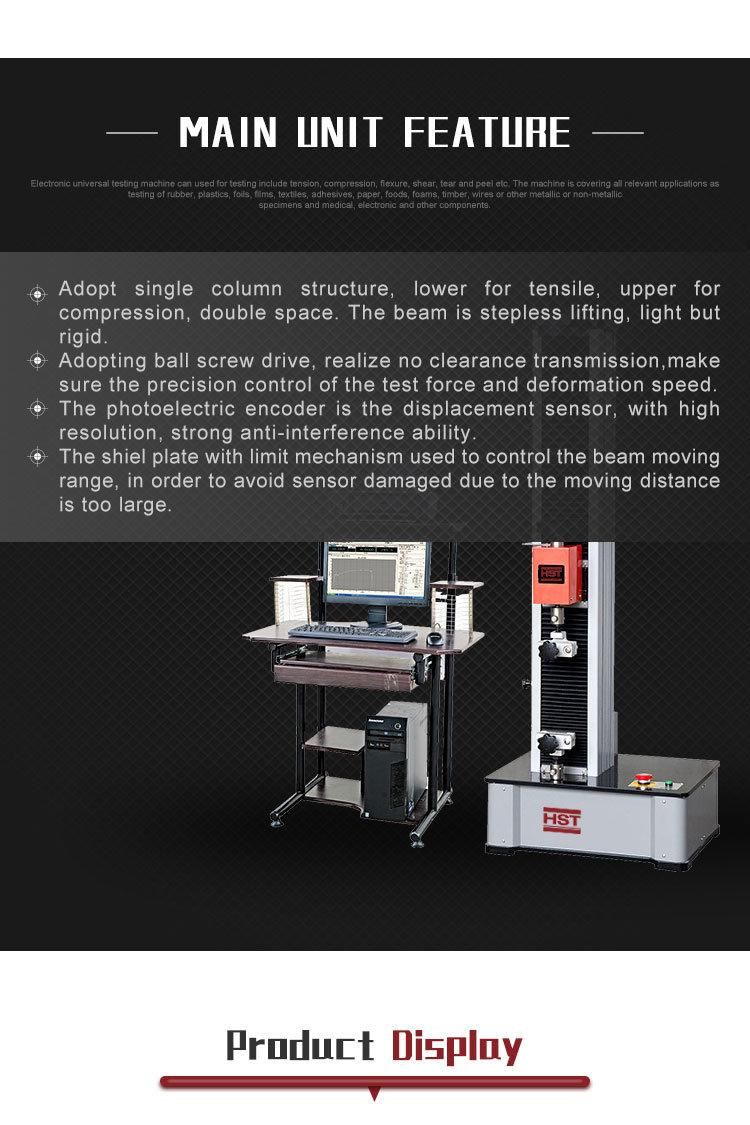

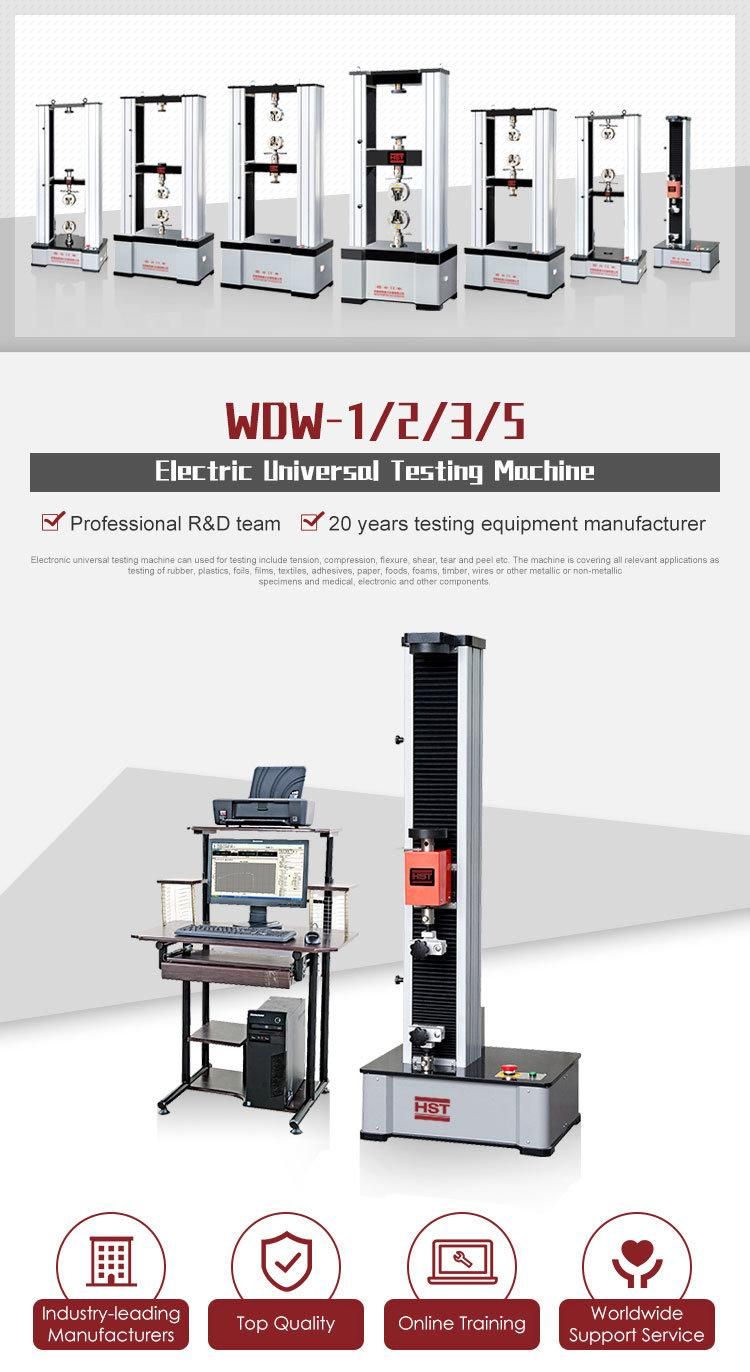

Lab Equipments 5KN single column Rubber Tensile Shear Testers with ASTM


1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:

Model	WDW-1/2/3/5
Max. Load	1/2/3/5KN
Structure	Single Column Double Spaces
Control Method	Computer Control
Load Accuracy	1 Class
Load Range	2%~100% FS
Displacement Resolution	0.01mm
Test Speed	0.05~500mm/min
Tensile Space	600mm (Can be customized)
Compression Space	600mm (Can be customized)
Power Supply	AC220V±10%, 50Hz (Can be customized)
Grips	Wedge Type, Plate Type And Other Grips As Customers' Demand
Dimension	425*400*1315mm
Weight	120.00 KG

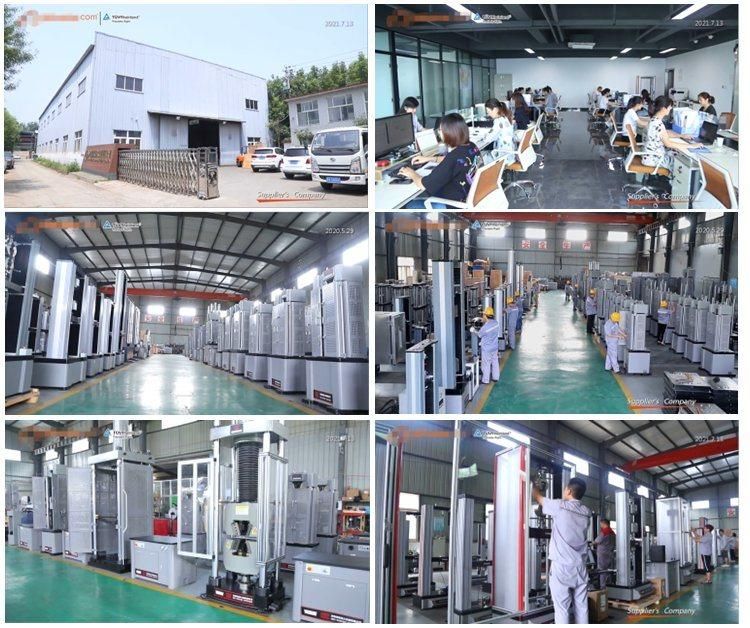

WORK SHORP:

EXHIBITON
OUR Customers all over the world

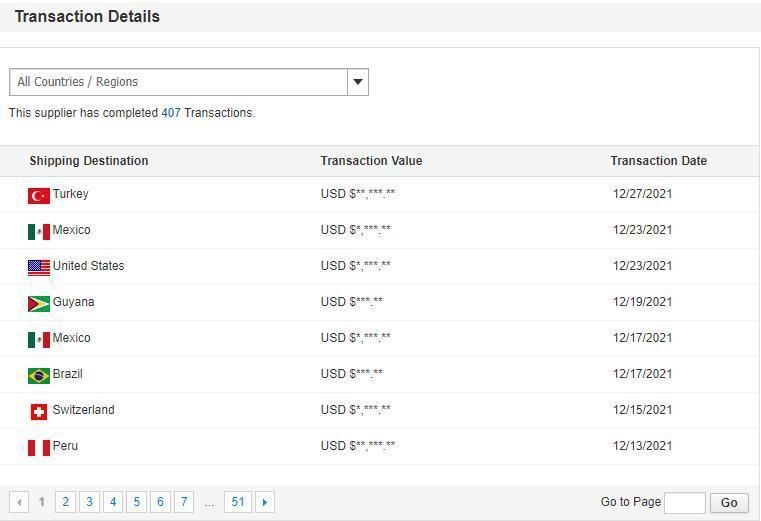

Transactions trade:
CERTIFICATE

HST GROUP machines scope:
A: Universal Testing Machine :Electronic/hydraulicSingle column/door tye WDS/WDW/WE/WEW/WAW series
B: Impact Testing Machine: JB-300B/500B JBS-300B/500B  150J to 750J
C: Compression Testing Machine: YES-2000/3000/3000D  YAW-300
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Force Gauge/Tension Meter: NK DTF HF ATG etc.
F: Friction/Wear  Resistance Tester: MMW  MRH   MMU
G: Metallographic Equipments:cutting machine, polishing and grinding machine, mounting machine, microscopes.

Dear Customer, with enough technical engineers and skilled workers, we could supply high quality machines with moderated prices. All the machines could be OEM and customized according to your special requests. Welcome to visit our factory in Jinan city, for more informations please contact Sunny for more details :
