• Model NO.：WDW-100
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Delivery Time：3 Days After Get Tt Payment
• Standard：ASTM, GB, ISO, DIN
• Certification：ISO, Ce
• Control Method：Computer Control
• Load Accuracy：Class 1
• Load Range：2-100 Percent
• Load Resolution：1,300000
• Resolution of Deformation：0.04um
• Resolution of Displacement：0.01mm
• Test Speed(mm/Min)：0.05-500 Stepless Arbitrary Setting
• Transport Package：Standard Export Packing
• Specification：750*510*1900mm
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDW-100 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Computer Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Delivery Time 3 Days After Get Tt Payment Standard ASTM, GB, ISO, DIN Certification ISO, Ce Control Method Computer Control Load Accuracy Class 1 Load Range 2-100 Percent Load Resolution 1/300000 Resolution of Deformation 0.04um Resolution of Displacement 0.01mm Test Speed(mm/Min) 0.05-500 Stepless Arbitrary Setting Transport Package Standard Export Packing Specification 750*510*1900mm Trademark HST Origin China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

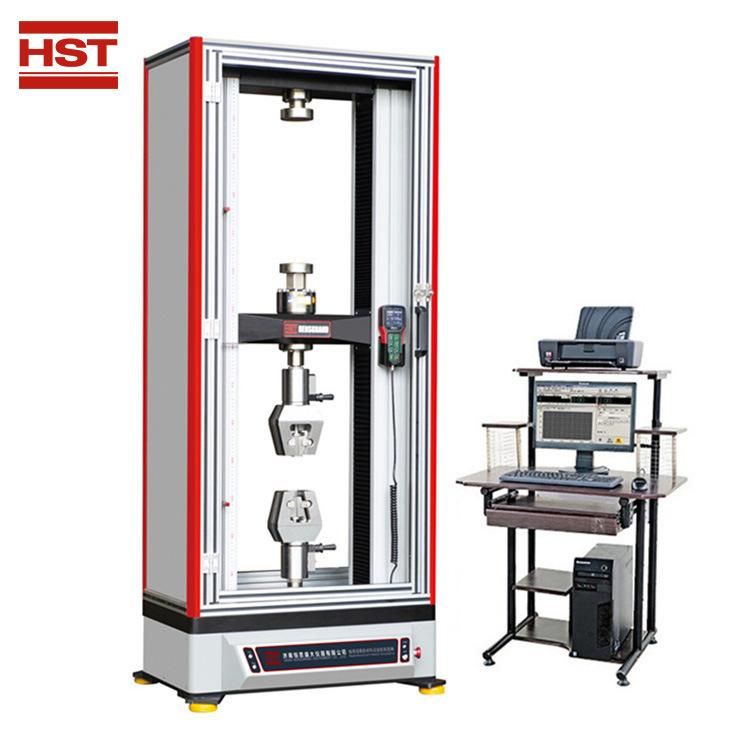

100KN Automatic Universal Tensile Test Measurement Systems



1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:

Model	WDW-100
Max. Load	100 KN
Structure	Four-column Floor Model (Upper Is Tensile And Lower Is Compression)
Control Method	Computer Automatic Control
Load Accuracy	1 Class
Load Range	2%~100% FS
Motor	TaiWan TECO AC Servo Motor
Sensor	High Precision Load Sensor, Made In China
Resolution	1/300000
Measuring Range Of Deformation	0.2%~100%
Accuracy Indication Of  Deformation	≤±0.5%
Disp. Indicating Relative Error	≤±1%
Displacement Resolution	0.04um
Adjusting Range Of Control  Rate Of Load	0.005~5%FS/S
Tensile Space	600mm (Can be customized)
Compression Space	600mm (Can be customized)
Effective Spacing	450mm (Can be customized)
Load Cell Configuration	One(Max Load), more load cells can be added according to customer requirement.
