• Model NO.：YES-200
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Piston Stroke：120mm
• Range of Test Force：4% ~100%
• Max Piston Speed：50mm,Min
• Max Compression Space：120mm
• Distance Between Upper and Lower Platen：340mm
• Working Table Size：160mm
• Transport Package：Standard Polywood Package
• Specification：950*700*1900mm
• Trademark：HST
• Origin：Shandong China
• HS Code：9024800000
• Production Capacity：800set, Month

Overview Product Parameters



1. Application
This Series machine adopts loading hydraulically with accurate and reliable test data. In order to guarantee the accuracy of test load readout, it adopts oil pressure transducer to measure the load, after amplifying, the test load, peak value and loading speed can be displayed digitally. The oil source is installed at the bottom of control cabinet in which there is a double-flow high-pressure piston pump driven by the motor. The hydraulic system is controlled manually with the functions of easy operation, safety and reliability. It is widely used for building material compression test.

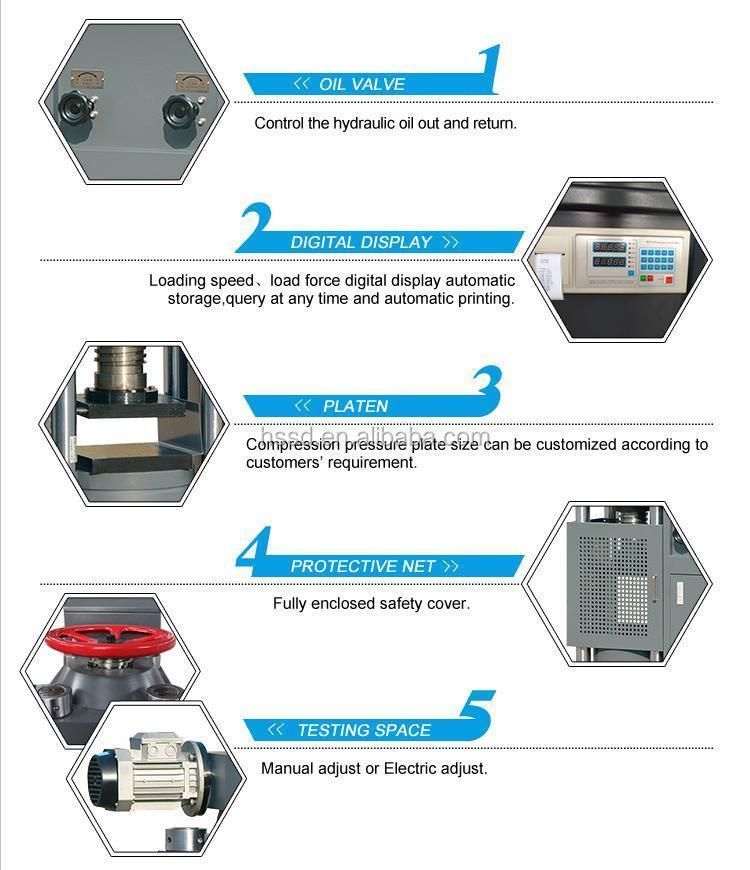

Main SpecificationsDetailed Photos

Company Profile

Our customers

Our exhibation

Packaging & Shipping

Contact



 All the machines can be customized according to your special requirements.
