• Model NO.：WEW-600D
• Loading Method：Static Load
• Display：Computer Display
• Control：Manual Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Application：Steel Rebar, Tube, Metal, Copper, etc
• Capacity：600kn
• Test Range：2%~100% (20kn~1000kn)
• Color：White, Blue or Customized
• Usage：Tensile, Compression, Bending, Shear, Peel, etc
• Certificate C：Ce ISO
• Standard：Astmd ISO , etc
• Warranty：12 Months
• Protection：Overload,Overcurrent, Protection Net, etc
• Delivery Tems：7 Days After Receiving Payment
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：1060*890*2260mm
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Set,Month

Basic Info.

Model NO. WEW-600D Loading Method Static Load Display Computer Display Control Manual Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Application Steel Rebar, Tube, Metal, Copper, etc Capacity 600kn Test Range 2%~100% (20kn~1000kn) Color White, Blue or Customized Usage Tensile, Compression, Bending, Shear, Peel, etc Certificate C Ce ISO Standard Astmd ISO , etc Warranty 12 Months Protection Overload,Overcurrent, Protection Net, etc Delivery Tems 7 Days After Receiving Payment Transport Package Standard Exporting Plywood Case with Free Fumigati Specification 1060*890*2260mm Trademark HST Origin China HS Code 9031809090 Production Capacity 300 Set/Month

Product Description

WEW-600D Computer Display Hydraulic Steel Tensile Test Equipment

1. Application
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.

2. Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

3. Host Features
3.1adopts that fuel tank is mounted under the host, tensile test space is located above the host, compression, bending, shearing test space is located under the host, means between beam and worktable.
3.2The structure is designed with solid four column and two screw, the whole machine has strong stability.
3.3The host is designed all-inclusively to ensure its super strong stiffness so that it can resist micro-deformation when it is loading.
3.4Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.
3.5 Fuel tank adopts gap sealed, improving the measurement accuracy and also extending service lifetime.

4. Overload protection
4.1 When the test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.
4.2 When the piston rises to the upper limit position, travel protection, pump motor will stop.

5. Main specifications

Model	WEW-600D
Structure	6 column
Control way	loading process manual control,computer automatic data dealing
Max.load	600kN
Load accuracy	≤±1% /≤± 0.5%
Load range	2%-100%FS /0.4%-100%FS
Load resolution	1/300000
Deformation Measurement Range	2%~100%FS
Deformation accuracy	≤±1%/± 0.5%
Displacement resolution	0.01mm
Displacement error	≤±0.5%
Max.piston stroke	250mm
Max piston moving speed	0-90mm/min Manual adjustment
Crosshead lifting speed	200mm/min
Max. tension test space	650mm (can customize)
Max.Compression Test Space	500mm (can customize)
Column clearance	475mm
Clamping method	Hydraulic clamp
Round specimen clamping range (mm)	Φ13-Φ40 (Φ6-Φ13 , Φ40-Φ50 Optional )
Flat specimen clamping range (mm)	0-15 (15-30 Optional)
Flat specimen clamping width	80mm
Compression plate size	φ160mm
Bending roller distance	450mm
Width of bending rollers	120mm
Power supply	3-phase,AC380V, 50Hz(can be customized)

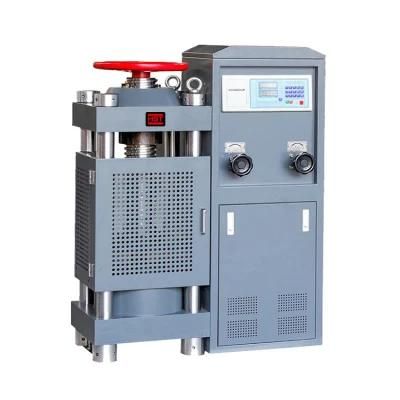

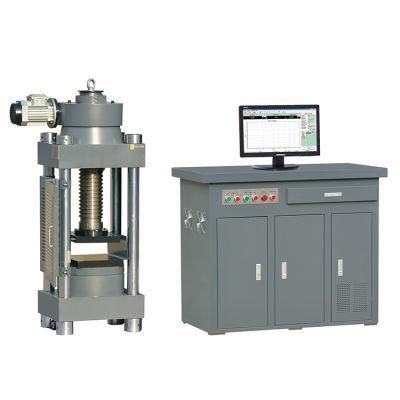

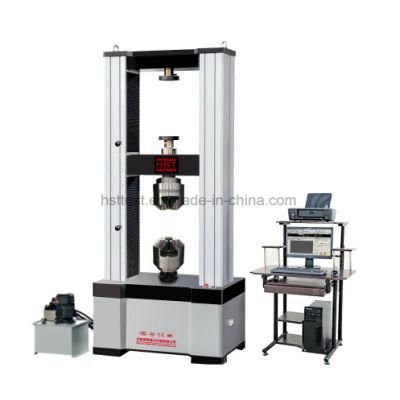

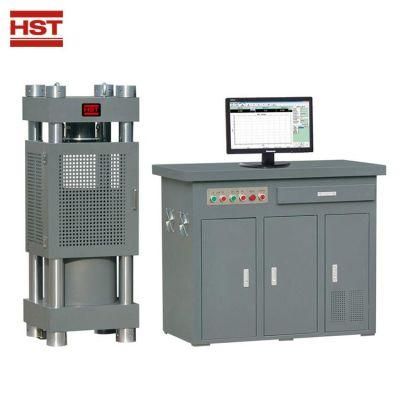

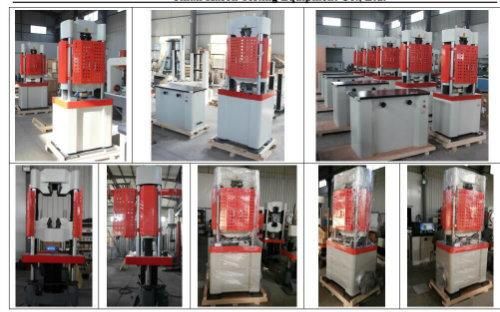

Real Pictures:

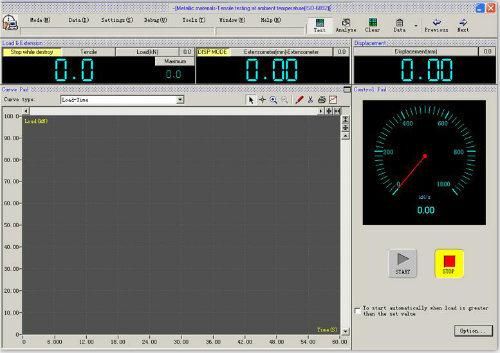

Software:

Package & Transportation :

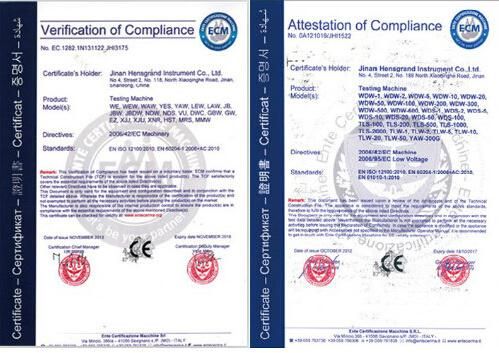

CE Certificate:
