1000kn/2000kn/3000kn/100ton/200ton/300toncomputer Control Automatic Concrete Cement Compression Testing Machine
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：Standard
- Warranty：1 Year
- Type：Compression Testing Machine
- Maxcapacity：1000kn,2000kn,3000kn
- Accuracy Grade：1
- Load Way：Mechanical Load
Base Info
- Model NO.：YAW-1000D
- Loading Method：Static Load
- Display：Computer
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V,380V
- Oil Cylinder Position：Under
- Accuracy：1 Class
- Distance Between Columns：280mm
- Distance Between Pressure Plate：320mm
- Pressure Plate：250*250mm , 270*270mm or Customized
- Transport Package：Standard Sea Shipping Case
- Specification：630*457*1410mm
- Trademark：Hensgrand or OEM
- Origin：Shandong, China
- HS Code：9024800000
- Production Capacity：5000 Sets,Month
Description
Overview
Product Description
Computer control compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:

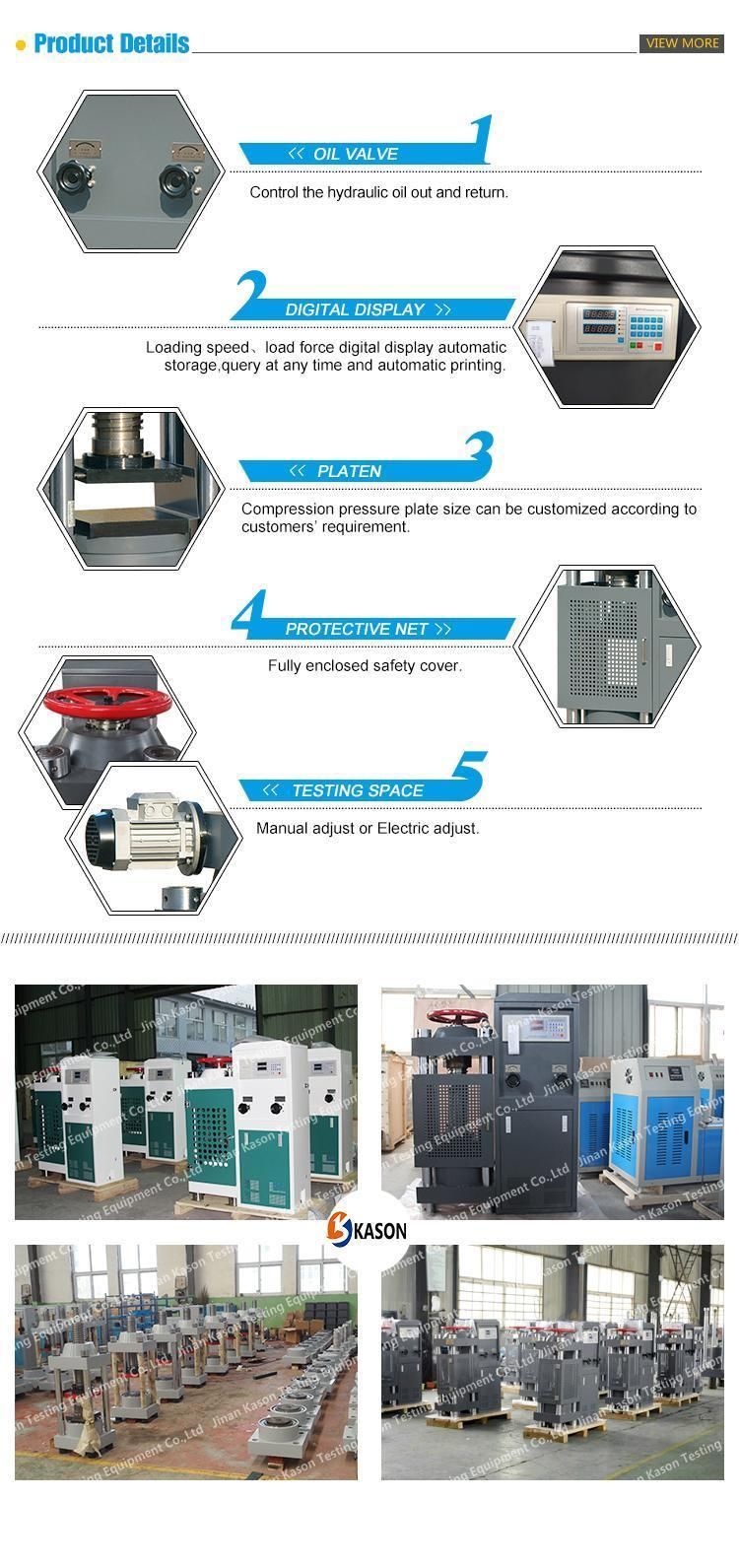

* Structure::mainly composed by main unit, oil source and measuring control system.
* Space adjusting way: Electric adjusting to realize the compression space adjusting
* Hydraulic system:The hydraulic oil in the oil box through the motor to drive the high pressure pump entering into the oil channel, flowing though one way valve, high pressure oil filter, differential pressure valve group,servo valve into the oil cylinder. The computer send out signal to the servo valve to control the servo valve openings and direction,in order to control the flow quantity into the cylinder and realize the constant speed test force control.
3. Main SpecificationsComputer Control Automatic Compression Testing MachineModel YAW-1000D YAW-2000D YAW-3000D Max test force (kN) 1000 2000 3000 Control way Computer automatically control test process Test force range (FS) 200~2000kN 300~3000kN Test value accuracy (%) Better than ±1% Test force resolution 0.01kN Oil cylinder stroke 50mm 80mm Max distance between upper and lower plate 320mm 340 Pressure plate 250×250mm 270×270mm Dimension 950×420×1350 mm 1000×500×1500mm Weight 850KG 1300KG Motor power 2.0kW/ AC 380V
Company Profile
Our exhibation
1. Application
Computer control compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:
* Structure::mainly composed by main unit, oil source and measuring control system.
* Space adjusting way: Electric adjusting to realize the compression space adjusting
* Hydraulic system:The hydraulic oil in the oil box through the motor to drive the high pressure pump entering into the oil channel, flowing though one way valve, high pressure oil filter, differential pressure valve group,servo valve into the oil cylinder. The computer send out signal to the servo valve to control the servo valve openings and direction,in order to control the flow quantity into the cylinder and realize the constant speed test force control.
3. Main SpecificationsComputer Control Automatic Compression Testing Machine

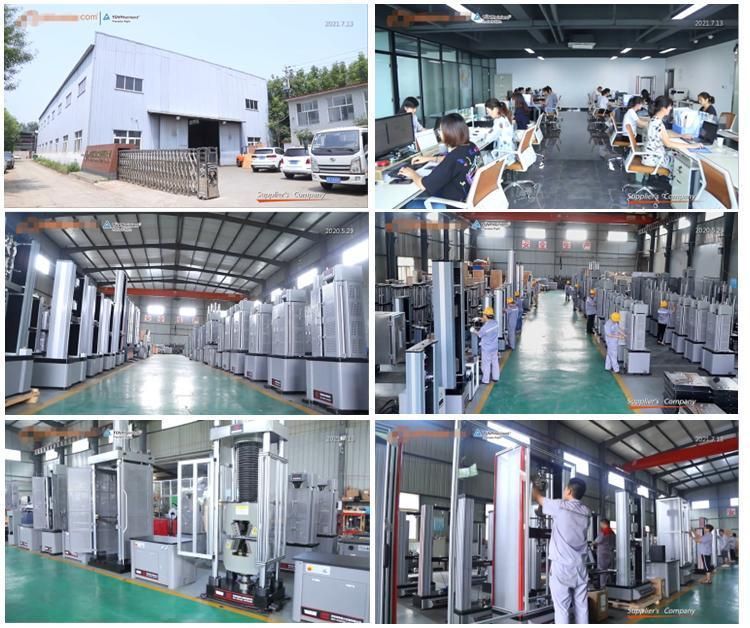

Company Profileour workshop:
Our customers over the world:
Our exhibation
Contact us, geta more detalis and best price:
