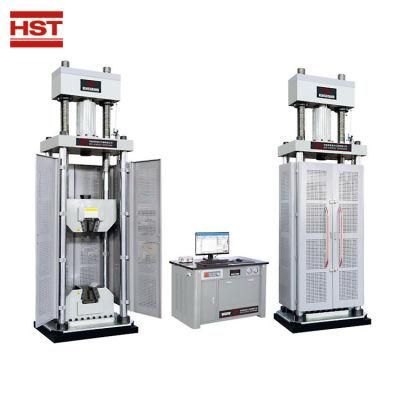

Laboratory Equipment 60ton Computer Control Material Universal Test Machine (WDW-600)

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：24 Hours Technical Supply
  • Warranty：12 Months
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：WDW-600
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：No
  • Delivery Time：3 Days After Get Payment
  • Standard：ASTM, Jin, GB
  • Max Load：600kn
  • Accuracy：1 Class
  • Application：Tensile Compression Bending Shear Test
  • Certificate：Ce ISO
  • Protection：Overload Overcurrent and Protection Ne, etc
  • Grip：Can Customized
  • Cover：All Aluminum Alloy
  • Test Speed(mm/Min)：0.05-200
  • Transport Package：Standard Export Packing
  • Specification：1360*1000*2830mm
  • Trademark：HST
  • Origin：China
  • HS Code：9024101000
  • Production Capacity：900 Sets Per Month

Description

Four-column floor or desk model,
(upper is compression and lower is tensile)CoverAll aluminum alloyControl methodComputer controlLoad accuracyClass 1Class 0.5Class 1Class 0.5Load range2%~100%F·S0.2%~100%F·S2%~100%F·S0.2%~100%F·SLoad resolution1/300000Rang of deformation4%-100%FSResolution of deformation0.04umAccuracy of displacementWithin±0.5%of indicating loadResolution of displacement0.01mmTest speed(mm/min)0.05-200 stepless arbitrary settingTensile space(mm)700(can be customized)Compression space(mm)700(can be customized)Test width(mm)760(can be customized)Laboratory Equipment 60ton Computer Control Material Universal Test Machine (WDW-600)Laboratory Equipment 60ton Computer Control Material Universal Test Machine (WDW-600)Laboratory Equipment 60ton Computer Control Material Universal Test Machine (WDW-600)Laboratory Equipment 60ton Computer Control Material Universal Test Machine (WDW-600)Laboratory Equipment 60ton Computer Control Material Universal Test Machine (WDW-600)
