• Model NO.：YAW-300C
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Control and Deal Mode：Computer Constant Control and Auto Dealing
• Range of Test Force：2% ~100%
• Load Speed：0.1~9.9kn,S
• Max Compression Space：50mm
• Distance Between Upper and Lower Platen：280mm
• Working Table Size：140mm
• Transport Package：Standard Polywood Package
• Specification：950*700*1900mm
• Trademark：HST
• Origin：Shandong China
• HS Code：9024800000
• Production Capacity：500set, Month

Basic Info.

Model NO. YAW-300C Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Control and Deal Mode Computer Constant Control and Auto Dealing Range of Test Force 2% ~100% Load Speed 0.1~9.9kn/S Max Compression Space 50mm Distance Between Upper and Lower Platen 280mm Working Table Size 140mm Transport Package Standard Polywood Package Specification 950*700*1900mm Trademark HST Origin Shandong China HS Code 9024800000 Production Capacity 500set/ Month

Product Description

300KN/10KN Computerized Servo Concrete compression and flexural Tester


Introduction:
This machine adopt computer auto control, with constant test speed, constant stress, test force keeping and other control mode. The computer realize test data and test curve'display, save,manage function, can print test report. With special fixtures, can test other material compression and flexual testing.
Features and Function:
1. This testing machine adopt AC servo system drive the AC servo motor,by precision reduction gears drives the ball screw,with high test accuracy,low noise.
2. Without pressure oil leakage and proportional valve blocking, low noise, more reliable.
3. Window control and dealing software, design more reasonable.
can arbitrarily set pressure value, pressure time, auto calculate test result.
4. Advanced auto control function, can do single or batch test.
5. Auto stop,after sample broken.
6. With over load protection.
Main Specs:

Max compression test force	300kN
Max flexual test force	10kN
Test force range	2%~100%FS
Test force accuracy	≤±1%
Load speed	0.1~9.9KN/S
Displacement indicate error	±1%
Displacement resolution	0.01mm
Displacement speed adjust	0.01~40mm/min
Control and deal mode	Computer constant control and auto dealing
Effective test width	300mm
Space between upper and lower	280mm (optional)
Effective compression space	50mm
Compression plate size	140mm
Machine size	630×457×1410mm
Power supply	220V,50Hz,1500W

Software show;

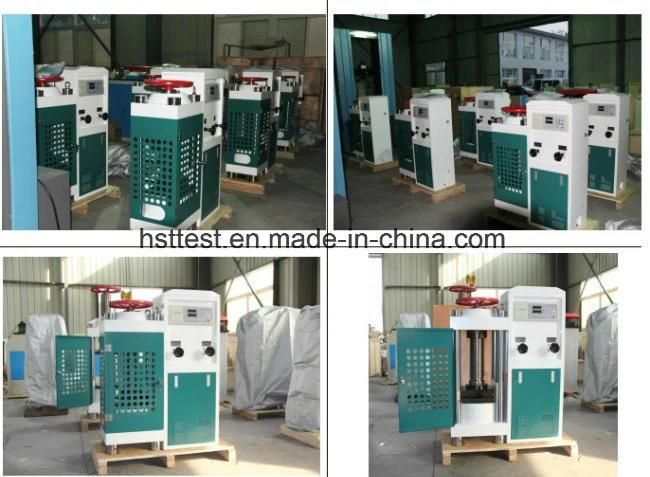

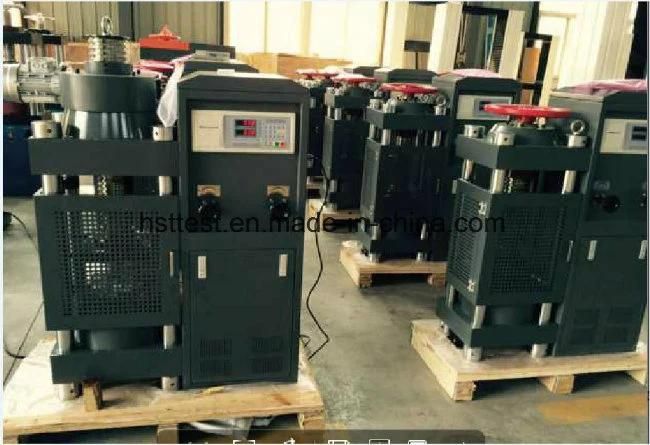

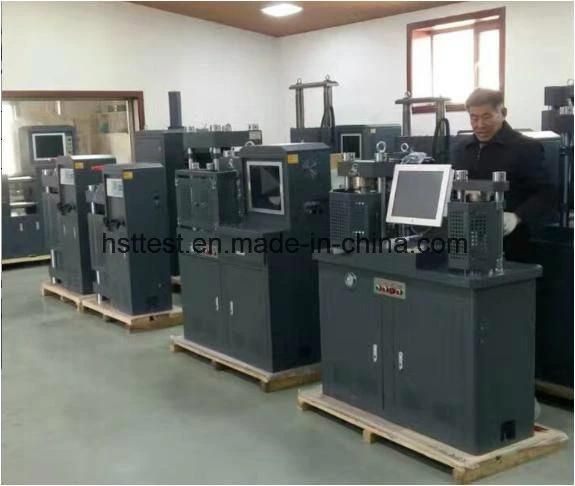

Machines in store show:




Dear Customer, we have compresion testing machines for concrete/cement/mortar/rock/brick for choice.
For more informations please send enquiry directly to Sunny:Jinan Hensgrand Instrument Co., Ltd
ADD: NO. 4915, West Jingshi Road, Jinan 250012, PR CHINA.
Tel: +86-531-58618759 82351201
Fax: +86-531-81901323
Mobile: +86-15866777590
Website: http://hsttest.en.made-in-china.com
