• Model NO.：WE-1000H
• Control：Manual Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Application：Steel Rebar, Tube, Metal, Copper, etc
• Capacity：100kn,300kn,600kn,1000kn,1500kn,2000kn
• Test Range：2%~100%
• Color：White, Blue or Customized
• Usage：Tensile, Compression, Bending, Shear, Peel, etc
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：1060*890*2260mm
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Set,Month

WEW-300DWEW-600DWEW-1000DMax load (kN)3006001000Structure6 columnControl wayloading process manual control,computer automatic data dealingLoad accuracy≤±1%   or  ≤± 0.5% Load range2%-100%FS  or  0.4%-100%FS Load resolution1/300000Deformation Measurement Range 2%~100%FSDeformation accuracy≤±1%/± 0.5%Displacement resolution 0.01mmDisplacement error≤±0.5%Max.piston stroke250mmMax. tension test space 650mm (can customize)Max.Compression Test Space500mm (can customize)Oil cylinder moving speed 1409050Crosshead moving speed200150120Effective space between columns (mm)430475525Round specimen clamping rangeΦ10-Φ32mmΦ13-Φ40mmΦ13-Φ40mmFlat specimen clamping range0-15mmClamping methodHydraulic clampClamp height70mm90mm90mmClamping width75mm80mm80mmCompression plate size φ160mmBending roller distance450mmWidth of bending rollers 120mmPower supply3-phase,AC380V, 50Hz(can be customized)

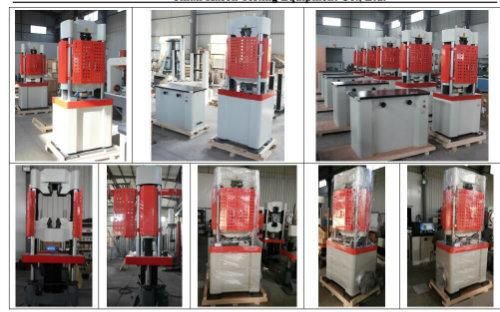

Real Pictures:

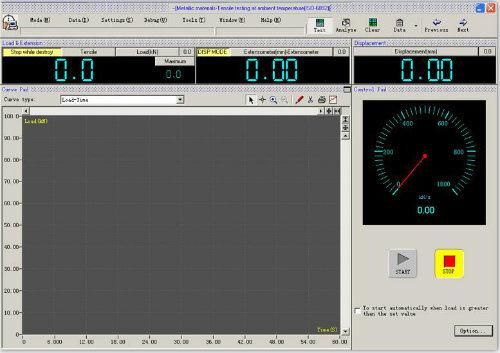

Software:

Package & Transportation :

CE Certificate:

Company information
