• Model NO.：HST-HY3000
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：None
• Color：White
• Measuring Range：50n-30000n
• Resolution：1n
• Maximum Distance：78mm
• Speed：12.5±2.5mm,Min
• Variability：≤1%
• Accuracy：±1%
• Transport Package：Standard Polywood Package
• Specification：450*400*500 mm
• Trademark：HST OR OEM
• Origin：Shandong China
• HS Code：9024800000
• Production Capacity：300set, Month

Basic Info.

Model NO. HST-HY3000 Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position None Color White Measuring Range 50n-30000n Resolution 1n Maximum Distance 78mm Speed 12.5±2.5mm/Min Variability ≤1% Accuracy ±1% Transport Package Standard Polywood Package Specification 450*400*500 mm Trademark HST OR OEM Origin Shandong China HS Code 9024800000 Production Capacity 300set/ Month

Product Description

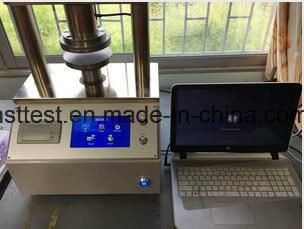

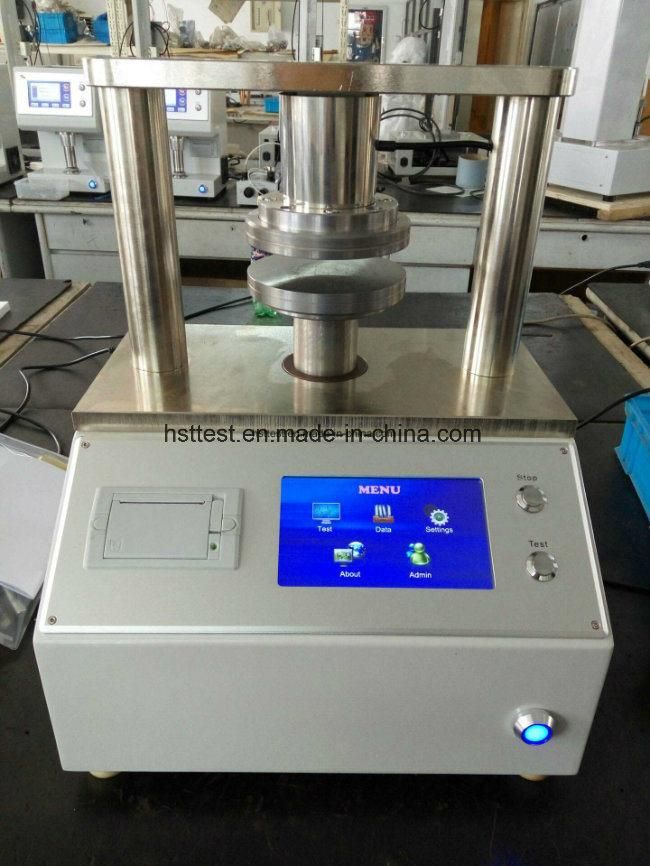

Rct Ect Pat Fct CCT Cmt Paper Crush Tester (HST-HY3000)


Introduction
HST-HY3000 Crush tester adopts the advanced parts, MCU to have a reasonable frame and multifunctional design.It can test ,translate,adjust,display,remember,and print.Besides, it is the basic equipment to test the compression.

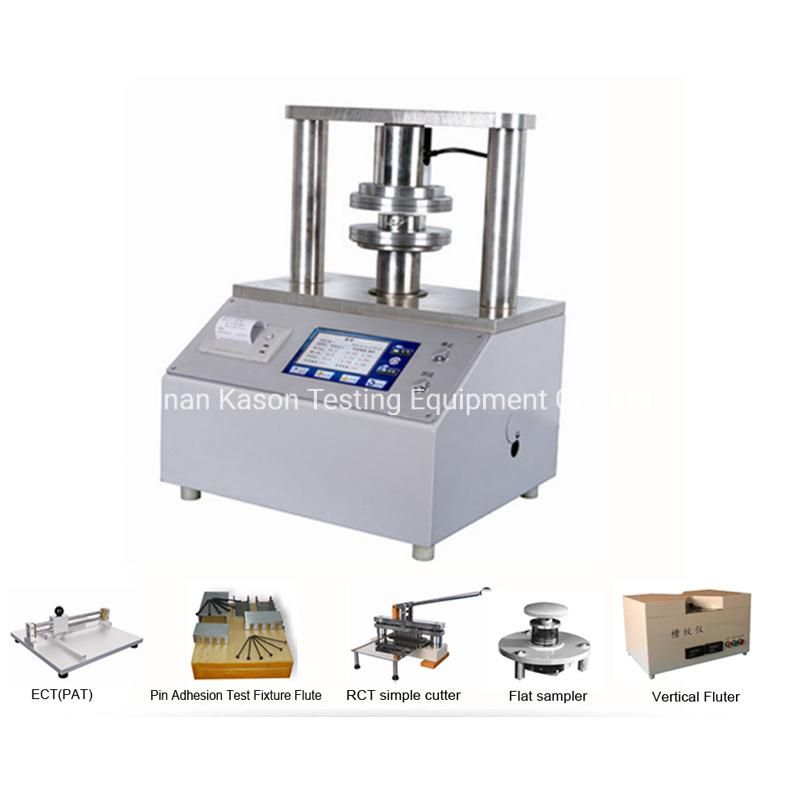

(1)With the compression plate and compression special sampler, can have the Ring Crush Test (RCT)
(2)With the edge crush cutter and auxiliary guide block can have Edge Crush Test(ECT)
(3)With the peel test rack to test the peel strength (PAT)
(4)Equipped with flat compression sampler to test the strength of flat compression (FCT)
(5)With other auxiliary appliance can test CCT and CMT
Standards
ISO 12192  ISO 3037  ISO 7263  ISO 3035  GB/T 2679.8  GB/T 6546  GB/T 6548  GB/T 2679.6  GB/T22874
Main features
1The user can order corresponding accessories according to actual conditions , to achieve a variety of paper and cardboard strength test
2.Test data can be printed out
3.Mechatronics design, compact structure, nice appearance, easy maintenance
Main technical parameters

Power supply	AC220V±10%   50HZ
Measuring range	50-3000N
Resolution	1N
Accuracy	±1%
Variability	≤1%
Speed	12.5±2.5mm/min
Maximum distance	78mm
Dimension	450*400*500 mm
Weight	75kg
