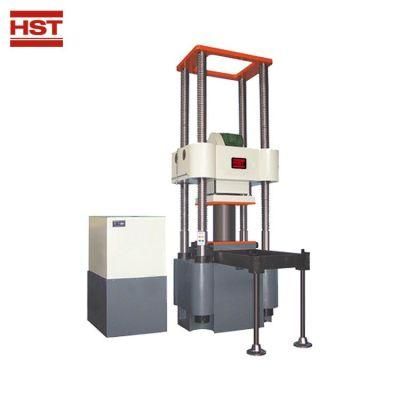

2000kn 200ton Computerized Automatic Hydraulic Compression Testing Machine (YAW-2000D)
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：Standard
- Warranty：1 Year
- Type：Compression Testing Machine
- Maxcapacity：2000kn
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：YAW-2000D
- Loading Method：Dynamic Load
- Display：Computer Display
- Control：Computer Control
- Weight：>2000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Color：Gray or Green or White
- Range of Test Force：4% ~100%
- Load Display Accuracy：±1%
- Piston Stroke：50mm
- The Largest Spacing of Upper and Lower：320mm
- The Largest Spacing of Two Columns：270mm
- Pressure Plates Size：250*250mm
- Transport Package：Standard Polywood Package
- Specification：900× 430× 1300mm
- Trademark：HST
- Origin：Shandong China
- HS Code：9024800000
- Production Capacity：800set, Month
Description
Overview
Product Description
YAW-D mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.

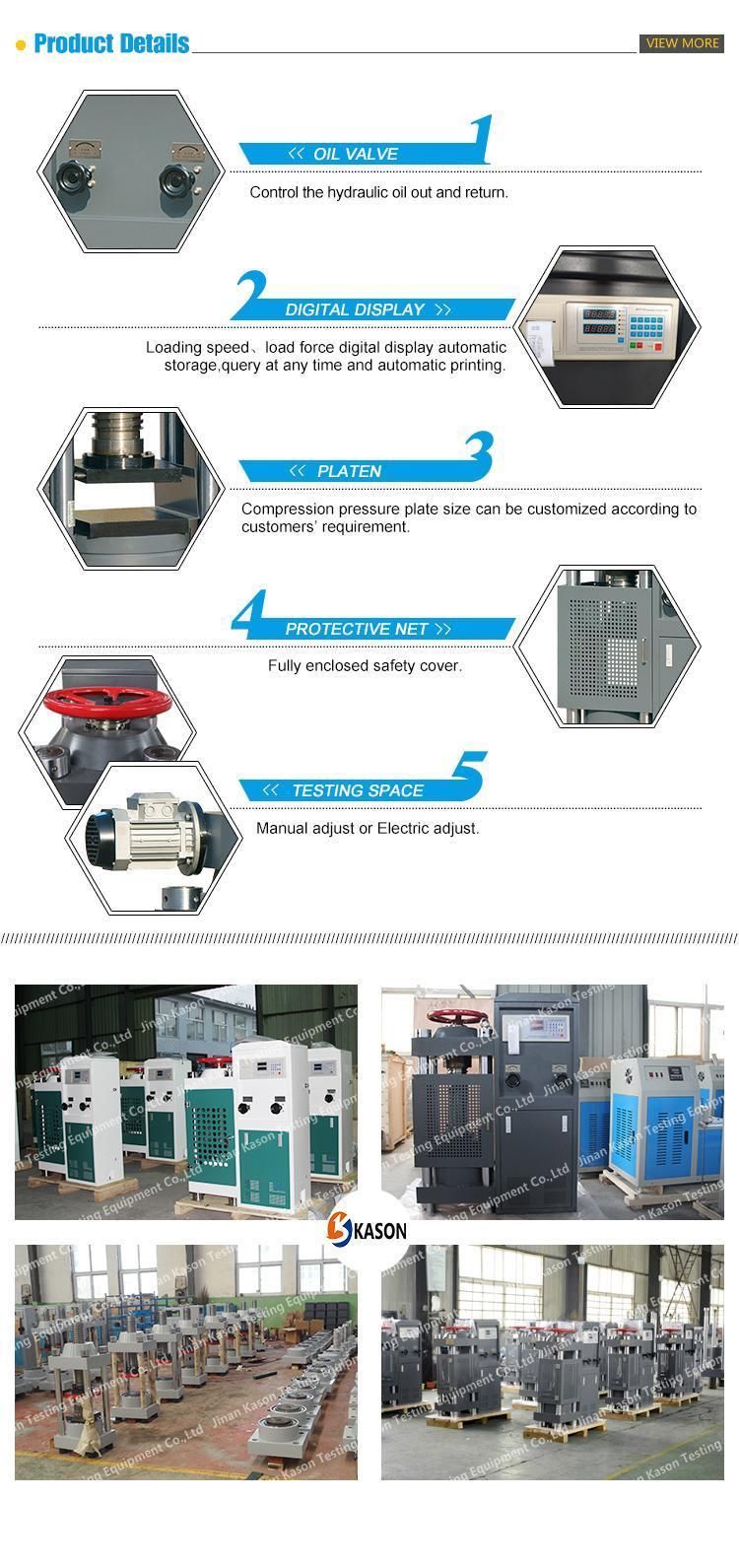

Features:
1. Computer control up, down, test, stop and loading progress
2. Electric screw ball adjust test space
3. One-piece oil source control cabinet
4. This machine consist of the host machine, oil source and control system.
Technical parameters
YAW-3000D
Max testing force
1000KN/2000kN
3000kN
Control method
Computer auto control loading process
Test space adjust method
Electric ball screw adjust
Oil source control cabinet structure
One-piece oil source control cabinet
Test class
1 class
Testing range
4%-100%FS
Test force value accuracy
Better than ±1%
Hydro-cylinder Stroke
50mm
80mm
Max space between compression plates
320mm
340mm
Max space between two columns
270mm
280mm
Compression plate size
250×250mm
260×260mm
Machine size
900×430×1300mm
1000×500×1450
Power supply
2.1Kw/AC380V
2.3Kw/AC380V
Machine weight
2100Kg
2800Kg

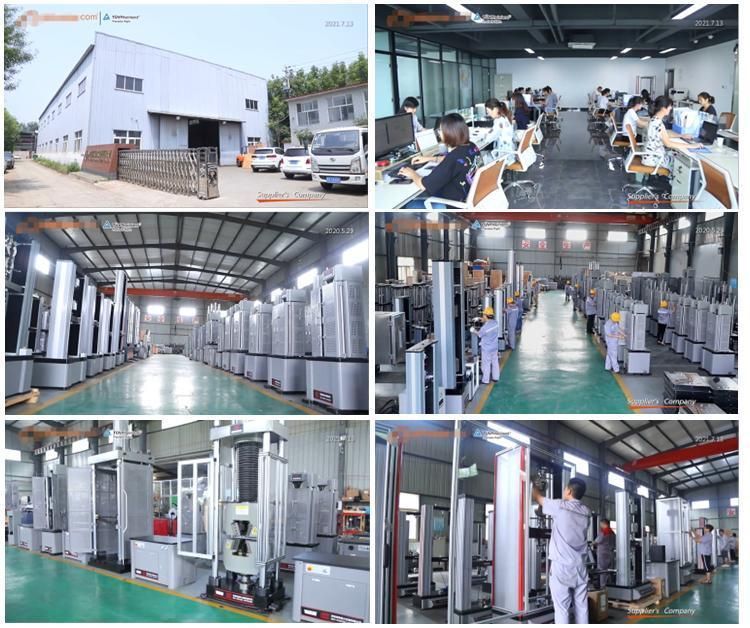

Company Profile
Our exhibation
Application:
YAW-D mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Features:
1. Computer control up, down, test, stop and loading progress
2. Electric screw ball adjust test space
3. One-piece oil source control cabinet
4. This machine consist of the host machine, oil source and control system.
Technical parameters
YAW-3000D
Max testing force
1000KN/2000kN
3000kN
Control method
Computer auto control loading process
Test space adjust method
Electric ball screw adjust
Oil source control cabinet structure
One-piece oil source control cabinet
Test class
1 class
Testing range
4%-100%FS
Test force value accuracy
Better than ±1%
Hydro-cylinder Stroke
50mm
80mm
Max space between compression plates
320mm
340mm
Max space between two columns
270mm
280mm
Compression plate size
250×250mm
260×260mm
Machine size
900×430×1300mm
1000×500×1450
Power supply
2.1Kw/AC380V
2.3Kw/AC380V
Machine weight
2100Kg
2800Kg
All the machines can be customized, welcome to your inquiry.
