• Model NO.：HD-E802-2
• Control：Touch Screen Operation
• Weight：100-500Kg
• Power Source：AC220V
• Condensation Temperature Range：40ºC~60ºC
• Light Temperature Range：50ºC~70ºC
• Delivery Time：15 Days After Receive The Deposit
• Studio Size (W×d×h)：114cm×40cm×50cm
• Chamber Material：SUS#304 Stainless Steel
• Transport Package：Resin Fiber and Strong Wooden Case
• Specification：ISO9001: 2008, Ce, SGS
• Trademark：Haida
• Origin：Guangdong, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E802-2 Control Touch Screen Operation Weight 100-500Kg Power Source AC220V Condensation Temperature Range 40ºC~60ºC Light Temperature Range 50ºC~70ºC Delivery Time 15 Days After Receive The Deposit Studio Size (W×d×h) 114cm×40cm×50cm Chamber Material SUS#304 Stainless Steel Transport Package Resin Fiber and Strong Wooden Case Specification ISO9001: 2008, Ce, SGS Trademark Haida Origin Guangdong, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

Plastics Simulation Climatic Solar UV Lamps Aging Testing Chamber
Description:
Quv accelerated weathering tester can simulate the harm caused by sunlight, rain and dew to the material, use the ultraviolet (UV) lamp to simulate the effect of sunlight, use the cold wet-like rain and dew.
The tested material is placed at a certain temperature in a cycle of alternating light and moisture.
After a few days or weeks of testing, the damage seen outdoors can be reproduced for months to years.

Hazard types include: fading, discoloration, loss of light, silting, cracking, turbidity, foaming, embrittlement, strength degradation and oxidation.

Application industry:
it is widely used in coatings, inks, paints, resins, plastics, printing and packaging, aluminum profiles, adhesives, automobile and motorcycle industries, cosmetics, metals, electronics, electroplating, medicine and so on.

Standard Features:

Studio size (W×D×H)	1140mm×400 mm×500 mm
Overall size (W×D×H)	1340mm×530 mm×1400 mm
Center distance of the lamp	70mm
Distance between the specimen and the nearest parallel surface of the lamp surface	about 50mm±2mm
Wavelength range	UVA wavelength range of 315 to 400nm, the peak at about 340nm
Radiation intensity	within 1W/m2/340nm
Temperature resolution	0.1ºC
Light temperature range	50ºC~70ºC / temperature tolerance is ±3ºC
Condensation temperature range	40ºC~60ºC / temperature tolerance of ±3ºC
Measuring range of blackboard thermometer	30~80ºC / tolerance is ±1ºC
Temperature control mode	PID self - tuning temperature control mode
Humidity range	about 45%~70% R.H.
Water tank requirements	water depth not more than 50mm, and with an automatic water supply controller
Standard specimen size	75×150mm 48pcs
Recommended operating environment	5~35ºC, 40%~85%R•H, 300mm away from the wall
Voltage	220V±5%, single-phase three-wire, 50Hz, 10A, required 15A leakage switch
Lamp selection	domestic Huaqiang lamp/American Atlecs lamp
Protection system	Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Temperature control system
1.UV cycle:
In the process of UV exposure test, temperature control is very important, and more important is to match the test temperature used in the accelerated test with the maximum temperature of the material in the practical application.
The UV temperature setting in the equipment can be anywhere from 50C to 70ºCC, depending on the level of illumination and indoor ambient temperature.
The temperature adjustment of the equipment is accomplished by a controller with microcomputer function to command a series of systems such as air heater, water heater and so on in the equipment.
2.Moisture circulation:
As the temperature increases, the destructive power of moisture on the material increases dramatically.
Therefore, in the process of wet exposure, temperature control is the most basic requirement.
Furthermore, to produce an acceleration effect, it is necessary to maintain a high temperature environment during the wet exposure.
The condensation temperature in the device can be set from 40ºC to 60ºC at any point.
3.Heating system:
U - type high - speed heating tube of titanium alloy is used
Temperature control and lighting completely independent system
The temperature control output power is calculated by microcomputer to achieve high accuracy and high efficiency
It has the function of preventing over-temperature of heating system.

Applications

1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.

Function
Meet Specifications
* Meet customer requirements
* Stay ahead of government regulations
Prevent Field Failures
* Improve quality and durability
* Enhance reputation
* Assure product performance
Gain a Competitive Edge
* Save on material costs
* Expand product lines
* Enter new markets
* Outrun the competition

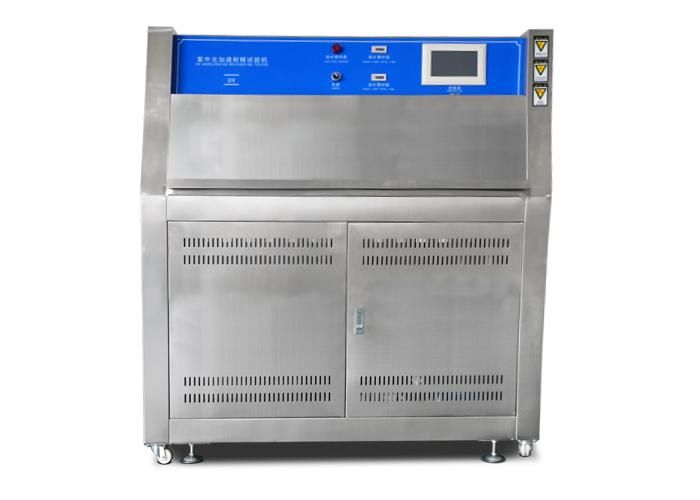

Product Image:


The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Customer Feedback:


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
