Automatic Control Environmental Test Chambers, Temperature Shock Test Chamber

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Certification：CE, TUV, ISO, SGS
  • Warranty：1 Year
  • Inner Size：500*750*600mm
  • Volume：225 Liters
  • Temp. Range：-40ºC~+150ºC(Ks)
  • Temp. Rapid Change Range：-40ºC~+85ºC

Base Info

  • Model NO.：YTH-225
  • Heating&Cooling Rate：3ºC,Min; 5ºC,Min
  • Temp. Fluctuation：+,- 2 ºC
  • Temp. Uniformity：+,-1.5ºC
  • Interior Chamber Material：SUS#304 Stainless Steel Plate
  • Exterior Chamber Material：Stainless Steel Plate + Powder Coated
  • Customiztion：Special Requirements Are All Welcome
  • Transport Package：Strong Wood Carton
  • Specification：CE, ISO, SGS, TUV Certification
  • Trademark：Yuanyao
  • Origin：China
  • HS Code：9032100000
  • Production Capacity：10 Sets,Month

Description

SpecificationModelYICT-225YICT-306YICT-408YICT-800YICT-1000Internal Dim.W×H×D(mm)Temperature Range -70ºC--  -150ºC(KS); -40ºC--   -150ºC(KL); +20ºC--  -150ºC(KR)Rapid Changes Temp.Range -70ºC;-50ºC-- +85ºC(KS),-40ºC; -20ºC--  +85ºC(KL),-20ºC; 0ºC-- +85ºC(KR)Heating & cooling rate3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/minFerformanceTemp.Fluctuation±0.3ºCTemp.UniformityIndication Resolution0.01ºCHeat-up Time Pull-down Time MaterialExteriorStainless steel piate+powder CoatedInteriorSUS#304 stainless steel piateInsulationPU & Fiberglass woolSystemsCirulationSiroco fanHeatingHeater;stainless-gang Fin-type heat pipe heat pipe heating mode of air circulationCoolingAirtight compressor+vaporator fins+air-cooling condenser Other ComponentsVacuum glass inspection window, cable port(ø 60mm),control status indicator lights,chamber lamp,
experiment separation shelves(freely adjustable 2pcs) Sevey DevicesNo fuse overload protection, the compressor overheating,over-current, over-pressure,dry heat,
inside the over-temperature warning system Power Source[K.W.]AC 3Ψ 380V 60/50HzCustomization service is available, we can set & design equipments according to your own specific requirements!

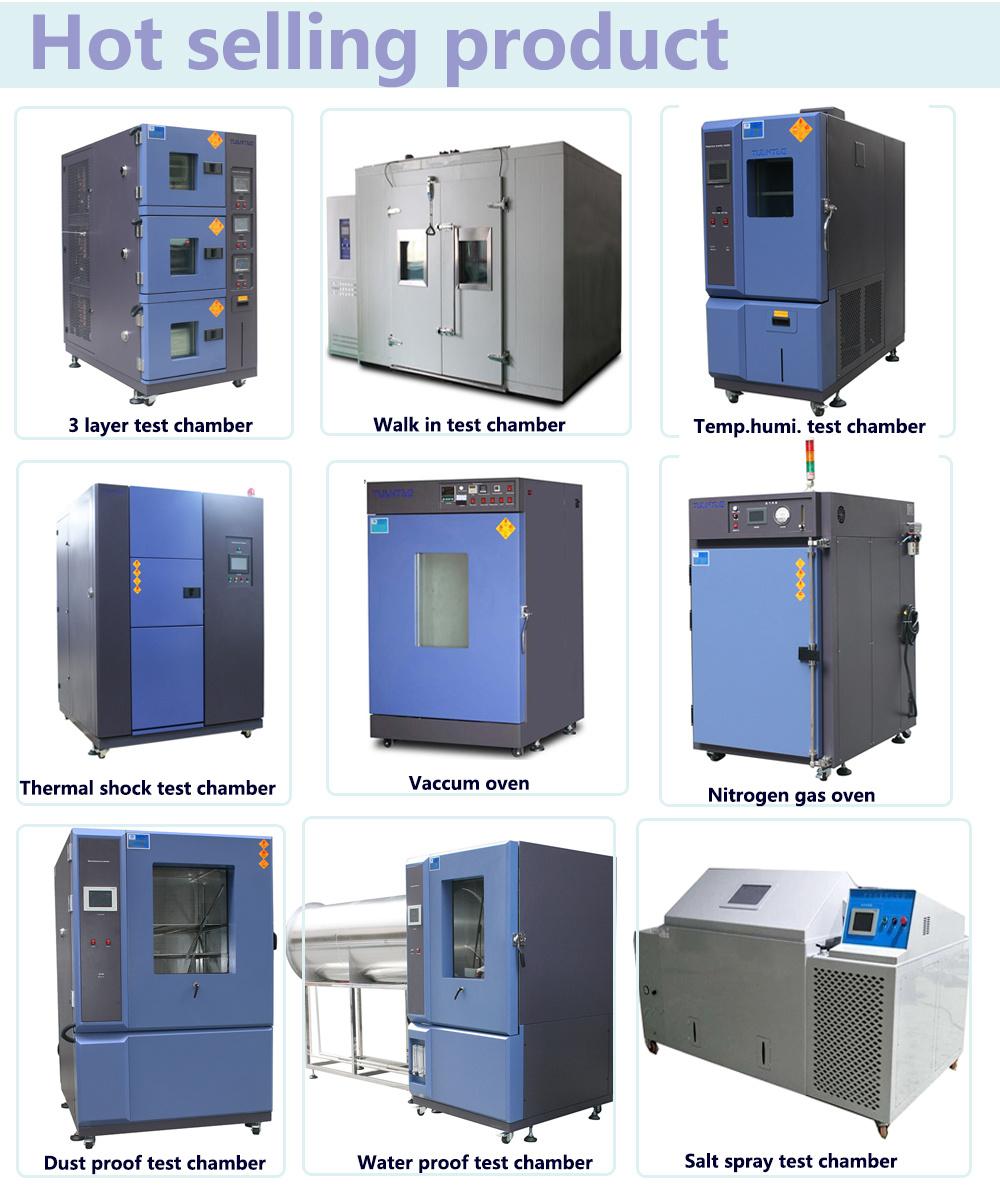

In addition to Constant Temperature and Humidity Test Chamber, we also produce:
Automatic Control Environmental Test Chambers, Temperature Shock Test Chamber

Customer visit us.
Automatic Control Environmental Test Chambers, Temperature Shock Test Chamber

Welcome to contact us and thanks for your reading !
