• Model NO.：YICT-225
• Heating&Cooling Rate：3ºC,Min; 5ºC,Min
• Temp. Fluctuation：+,- 2 ºC
• Temp. Uniformity：+,-1.5ºC
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Exterior Chamber Material：Stainless Steel Plate + Powder Coated
• Customiztion：Special Requirements Are All Welcome
• Transport Package：Strong Wood Carton
• Specification：CE, ISO, SGS, TUV Certification
• Trademark：Yuanyao
• Origin：China
• HS Code：9032100000
• Production Capacity：10 Sets,Month

ModelYICT-225YICT-306YICT-408YICT800YICT-1000Inner chamber size w×h×d(cm)50×75×6060×85×6050×85×80100×100×80100×100×100 Exterior chamber size w×h×d(cm)Depends on inner chamber sizeTesting temperature range -70~150ºC(KS);-40~150ºC(KL);-20~150ºC(KR)Fast change temperature range -70ºC kinds:-50~+85ºC(KS);-40ºC kinds:-20~+85ºC(KL);-20ºC kinds:0~+85ºC(KR)Heating-up&Cooling-down speed3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(Linear or Non-linear)PerformanceTemp.fluctuation±2.0ºCTemp.uniformity±1.5ºCTemp.resolution0.01ºCHeating-up time -70~150ºC<60min;-40~150ºC<50min;-20~150ºC<35minCooling-down time +20~ -70ºC<70min;+20~ -40ºC<55min;+20~ -20ºC<35minMaterialExterior chamber materialCold-rolled steel+Powder coatingInterior chamber materialSUS#304 Stainless steelInsulationPU fiberglass woolSystemWind circulationCooling fanHeating systemSUS#Stainless steel high-speed heaterRefrigeration systemImported tecumseh compressor+fin type evaporator+air(water)cooling systemOther componentsMulti-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable)Safety protection deviceOver-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lampPower supplyAC 3phase380V 60/50HzCustomization serviceNon-standard or special requirements are all welcome
Customization service is available, we can set & design equipments according to your own specific requirements!

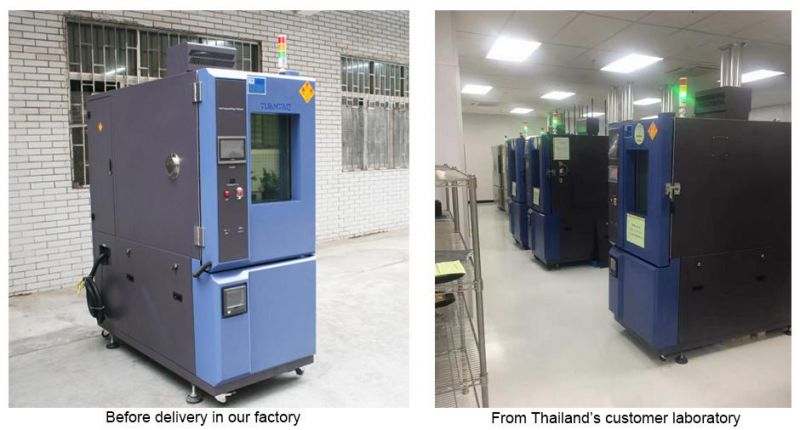

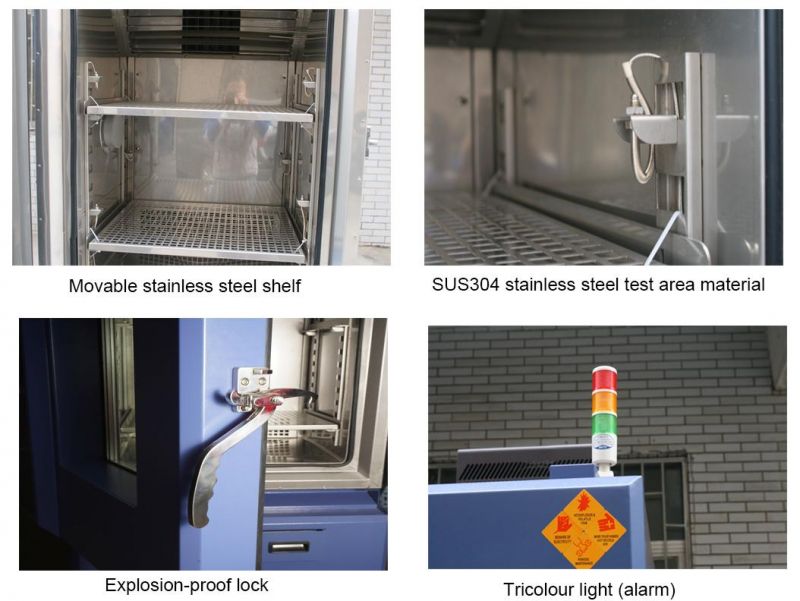

Product detailes:



Company profile










In addition to water rain spray test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles / size with different configurations are available upon request, welcome to enquire and purchase!





If you want to know more about water resisitance test chamber,please feel free to contact us.

Thank you for your reading !
