• Model NO.：HTJY-80A
• Total Voltage Distortion：<3%
• Dimensions：470×390×420mm3
• Weight：40kg
• Environment Temperature：0ºC~+40ºC
• Relative Humidity：<80%
• Capacity of The Oil Cup：200ml
• Distance Between The Electrodes：2.5mm
• Transport Package：Wooden Case or Carton
• Specification：see details
• Trademark：HV TEST
• Origin：China
• HS Code：9030899090
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. HTJY-80A Total Voltage Distortion <3% Dimensions 470×390×420mm3 Weight 40kg Environment Temperature 0ºC~+40ºC Relative Humidity <80% Capacity of The Oil Cup 200ml Distance Between The Electrodes 2.5mm Transport Package Wooden Case or Carton Specification see details Trademark HV TEST Origin China HS Code 9030899090 Production Capacity 200 Sets Per Month

Product Description

Product overview
This instrument was developed according GB/T507-2002 and DL/T846.7-2004, leading by single chip, pre-set method, the whole procedure controlled by micro computer, easy to operate.

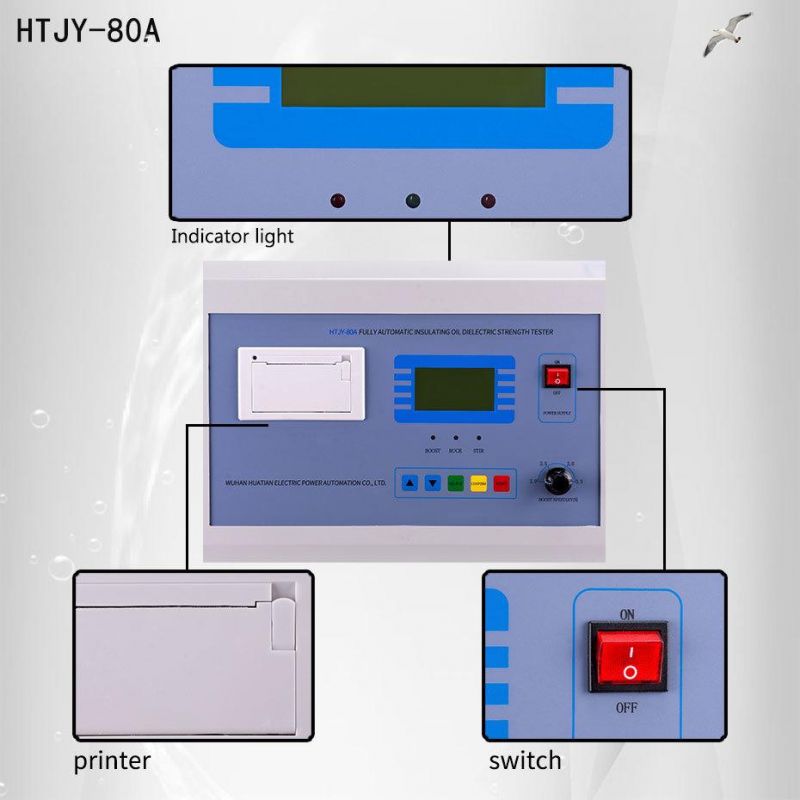

Products features1. This device with the self-detect function, after start up the device will auto enter the reset condition to regulate the voltage to 0. 2. Can change the measurement times, stirring and standing time, sound and light alarm, print or not.3. This device use automatic magnon stirring, eliminate the asymmetry and bubble of the sample oil.4. Use micro TPU-A panel type printer.
 Technique parameters

Power supply voltage	AC 220V±22V
Power frequency	50Hz ±2.5Hz
Work rate	<200W
Output voltage	0-80kV
Booster capacity	1.5kVA
Booster speed	2.0,2.5,3.0,3.5kV/s(adjustable)
Total voltage distortion	<3%

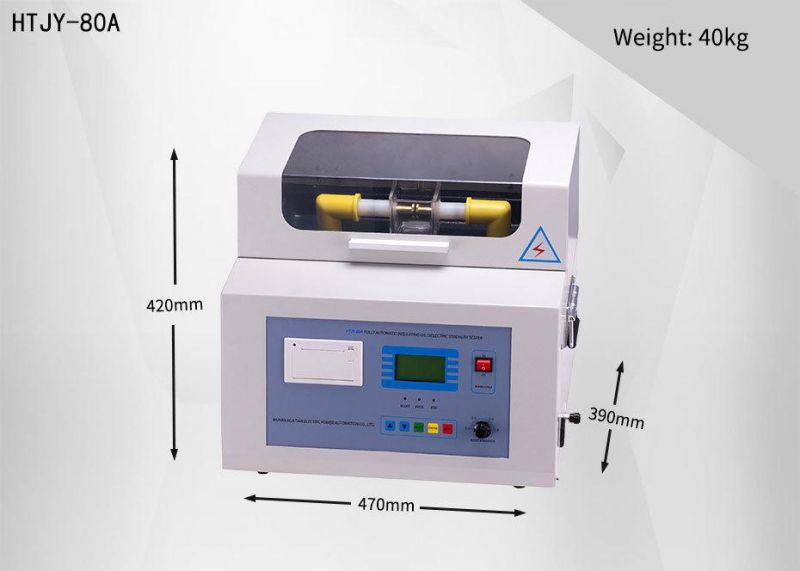

Dimensions	470×390×420mm3
Weight	40kg
Environment temperature	0ºC~+40ºC
Relative humidity	<80%
Capacity of the oil cup	200ml
distance between the electrodes	2.5mm

Common problem
1. Is your company a sales company or a manufacturer?
Wuhan Huatian Electric Power Automation CO., LTD.is an industrial and trade enterprise, with its own  factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.

2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

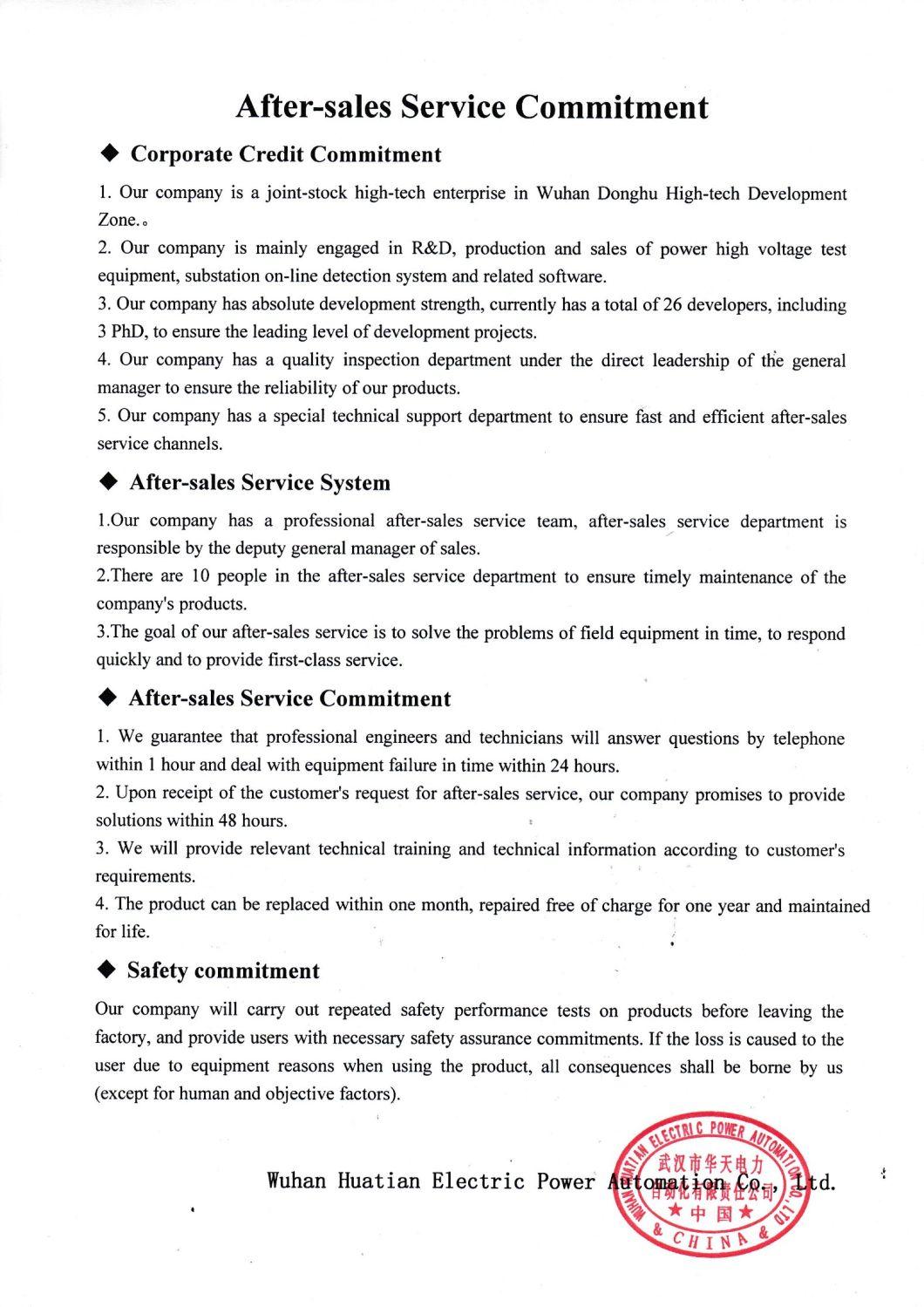

4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
