• Model NO.：TVTA-40-DN400-PC
• Load Way：Nitrogen Pressure Test
• Loading Method：Pneumatic Gas Booster Pump
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Control Type：Manual or Computer Control
• Testing Medium：Air,Nitrogen ,Water, Hydraulic Oil
• Driven Power：Compressed Air
• Usage：Auto Testing Machine
• Transport Package：Standard Export Wooden Case
• Specification：1500KG
• Trademark：Terek
• Origin：Shandong
• Production Capacity：5000 Pieces,Year

Provide Provide High pressure test connecting pipe, high pressure gas pipe of nitrogen cylinder,operation instruction, operation video, repair kit, seal gasket, screw fitting, Seal ring, joint fitting, PU air pipe,Provide flange connection fittings and threaded connection fittings of corresponding specifications .USB disk(Including equipment pictures, operation instructions and operation video files.)etc

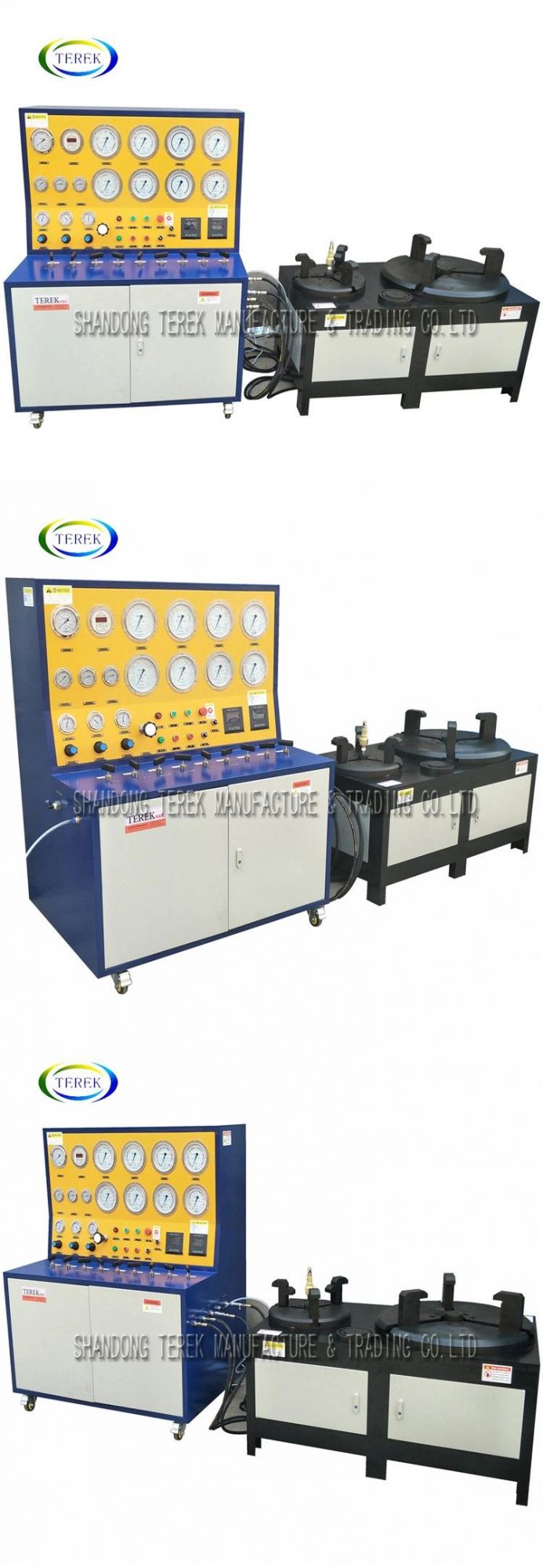

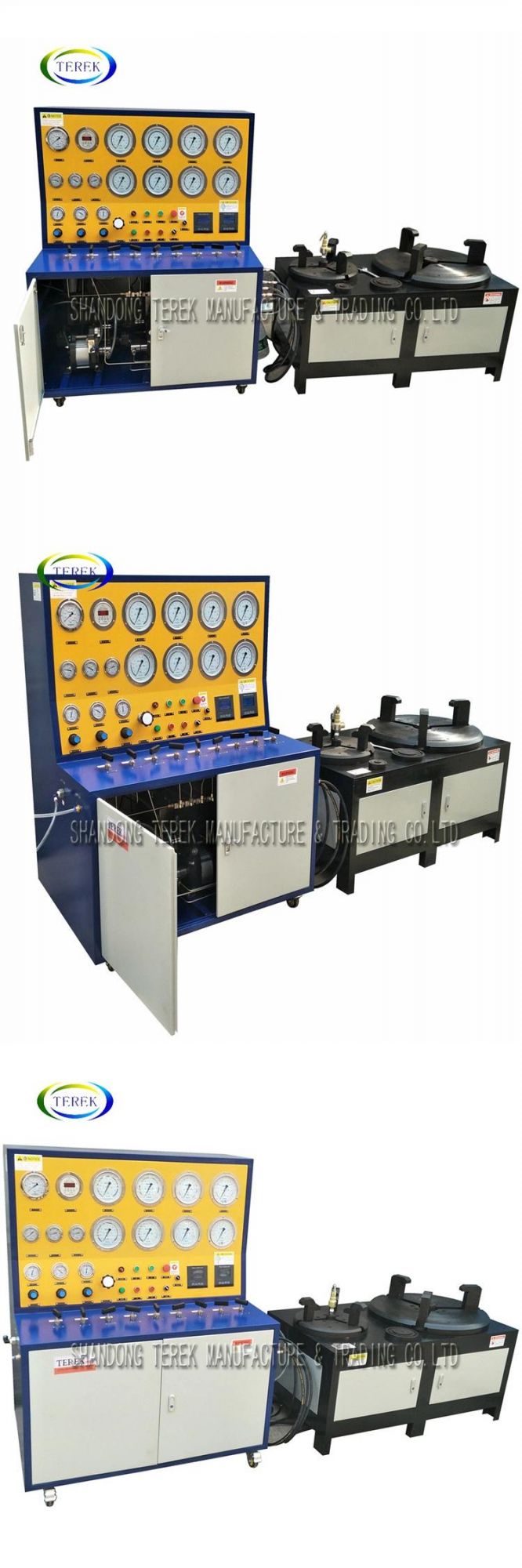

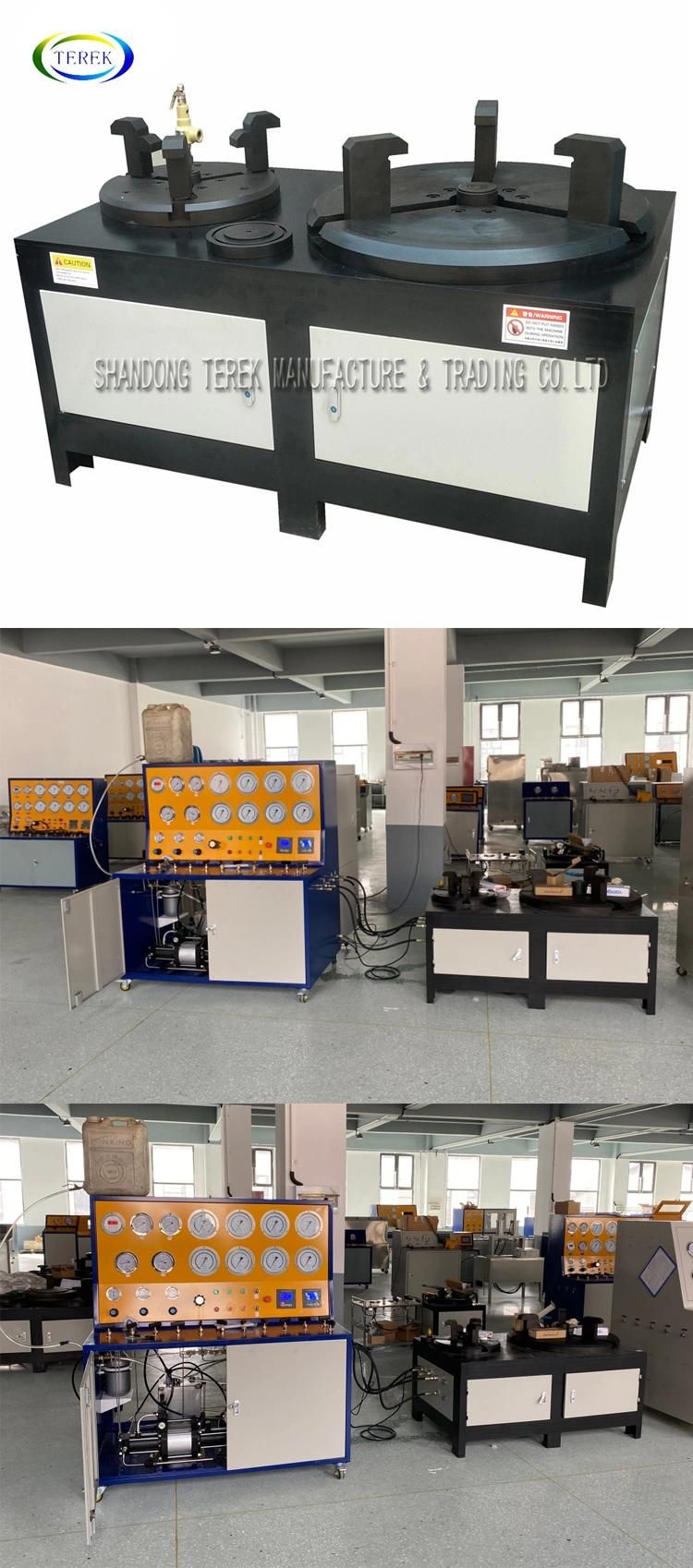

PRODUCT PICTURES:


System configuration:
The safety valve test bench system is mainly composed of power system, valve clamping system,  testing system, electrical control system.

1)Power system Air drive gas or nitrogen booster pump, air driving pressure 3-8bar;Maximum Output pressure 480bar; Provide high pressure for valve test.

2)Clamping system. The liquid booster pump provides high pressure power. Cylinder clamping ensures the sealing between the tested parts and the pipeline.

3)Test system. Pressure range: 0-1MPA; 0-2.5 MPA, 0 -16 MPA, 0-25 MPA and 0-60MPA. The performance index is up to the accuracy of ± 1%FS, and the range ratio is 100:1.

4) Electrical control system. Reliable and high quality electrical components ensure high efficiency of the testing process.

WHY CHOOSE TEREK PUMP:
Structure and reliable, long life, high stability, no electricity, simple maintenance.

Safety Operation:use gas driven, no arc and sparks, it can be used in hazardous locations.

• Flexible application:different series of pumps can be used to obtain different pressure intervals and flow intervals.

• Simple maintenance:Compared with other air-driving pumps,the pneumatic booster pump can perform the same job as other gas drive pumps, but with fewer parts and seals, and easier maintenance.

• Structure and reliable, long life, high stability, no electricity, simple maintenance.

• Automatic pressure holding, whatever the cause of the pressure drop, the pump will automatically start, keep the loop pressure constant


Application Fields:
Used for testing all kinds of safety valve, such as spring directly load safety valve, Power assisted safety valve, Supplementary loaded safety valve, fully open, slightly open, flange, thread type safety valve. Safety valve test bench is to use high pressure air or nitrogen as the medium to test the sealing performance of the safety valve, jump pressure, back seat pressure, etc., for a variety of safety valve set pressure adjustment, set pressure test, discharge pressure test, back seat pressure test, test the pressure sealing performance of the safety valve, leakage rate. Safety Relief Valve Test bench has obvious advantages in techniques, test accuracy, safety etc.

The safety valve checkout platform is a device that simulates the working environment of the safety valve offline and makes the internal pressure rise to the safety valve lift.

At the same time, the pressure gauge on the device can show the starting pressure of the safety valve.

The test pressure can be checked to check the starting pressure (also called opening pressure, setting pressure) of the safety valve.  Suitable for performance testing of fixed pressure, backseat pressure and tightness of direct loading and pilot safety valves.

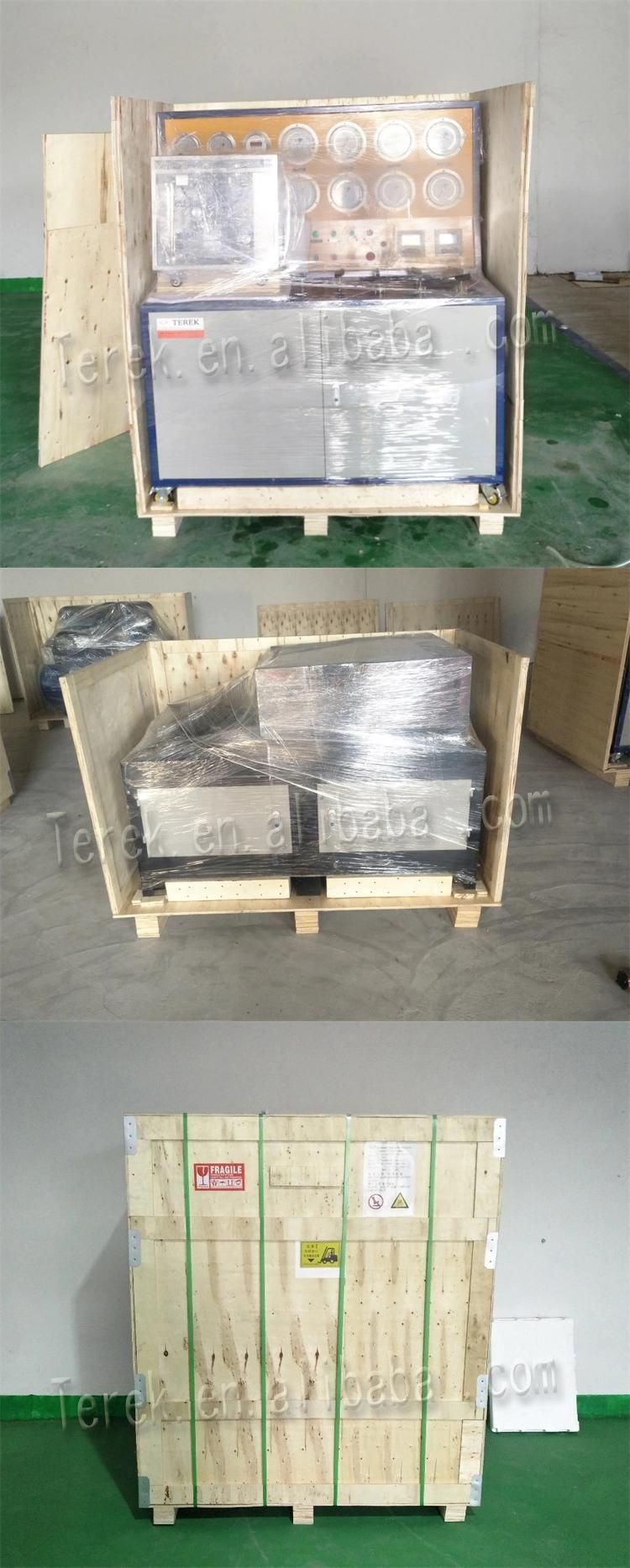

Packaging & Shipping:


FREQUENTLY ASKED QUESTION:
Q1. Where is your factory located ? How can I visit there?
Our factory is located in Jinan city, Shang dong Province, China. We can go to Jinan airport and wait for your arrival.
Q2 : Do you have stock for all items?
A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
Q3. How long can be finished the goods ?
A : Sample order : within one week ;
Large order : 15-25 days ; According to your purchase quantity.
Q4. At which port do you usually ship the good?
We usually ship goods via Qingdao port of China.
Q5 : What is payment terms ?
A: Sample order : 100% full payment before start to production;
Large order : 30% deposit first, 70% pay after see the BL copy ;
Q6: Can give free sample ?
A : Free : if small spare parts and the cost not too much is ok ;
Not Free : the cost expensive and all the machine can not be free ;

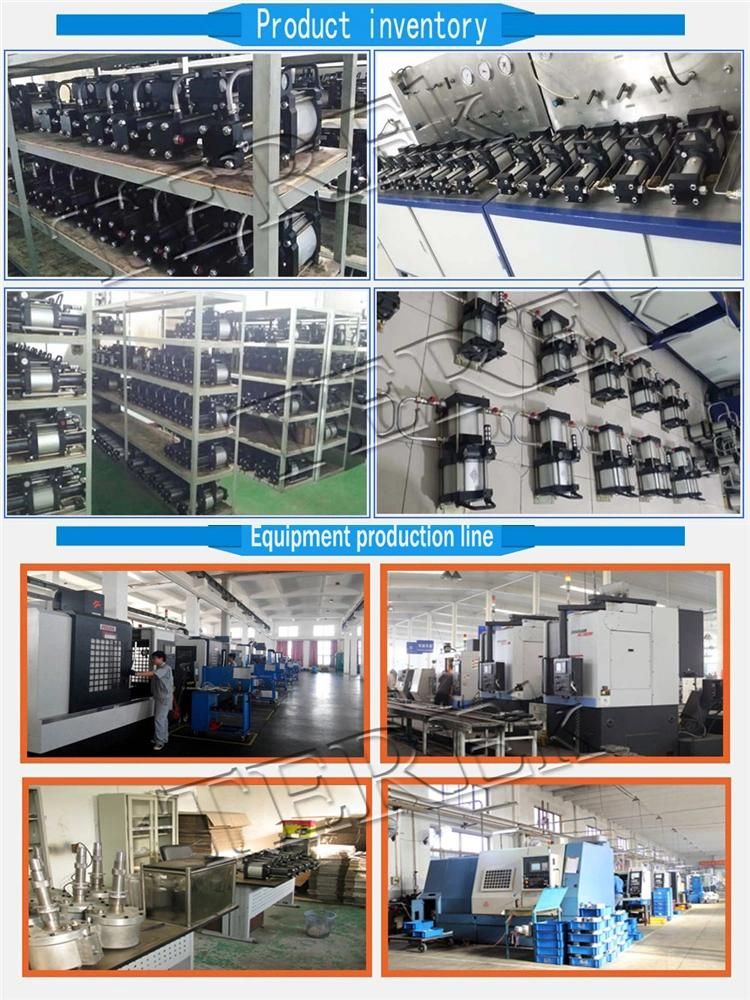

Company Information:

TEREK Company focus on high pressure fluid transfer all the time and supply perfect high pressure fluid transfer solution and service, Supplying high-quality product and service is the eternal aim of TEREK.
As the experienced manufacturer of industrial booster pump. The technology of air driven booster pump and pressurization system reach to a good level. Can pressurize almost any liquid, Such as oil,water ,corrosive liquid and chemical liquid applications. High quality seals, long service life available.
Based on the high quality of our products, reasonable prices and excellent after-sales service, we have gained a high reputation in this field of fluid pressure control equipment.

Our main products including Pneumatic Gas/Liquid Booster Pumps. Refrigerant booster pump and Air Amplifier. Fluid pressurized hydrostatic hydraulic pressure test equipment or high pressure Chemical fluid injection equipment. High pressure oxygen, hydrogen ,nitrogen, argon, Helium ,N2O,CO2 or other gas pressurized transfer refilling equipment or gas injection equipment. Pneumatic pump Glycerin Oil pressurized injection equipment. LPG / Propane and butane Pressurized transfer filling station equipment. Pipe/tube/valve/cylinder/Brake pipe, automobile pipe, aircraft hydraulic pipe ,pressure vessels Hydraulic Pressure Test Machine(Computer control or manual control or Intelligent digital display instrument) MCU Intelligent digital display instrument Pneumatic gas booster pump system leak test bench. Computer control /Intelligent instrument control Safety relief valve PSV test bench,Portable Safety valve test clamping table and test equipment. Online safety valve test instrument equipment.
