• Model NO.：WDW-50
• Accuracy Grade：1 or 0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Computer Display
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Motor Under
• Transport Package：Plywood Exporting Package
• Specification：350kg 1.37CBM
• Trademark：HST
• Origin：Jinan, Shandong, China
• HS Code：9024109000
• Production Capacity：1200sets,Month

Basic Info.

Model NO. WDW-50 Accuracy Grade 1 or 0.5 Load Way Electronic Load Loading Method Static Load Display Computer Display Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Motor Under Transport Package Plywood Exporting Package Specification 350kg 1.37CBM Trademark HST Origin Jinan, Shandong, China HS Code 9024109000 Production Capacity 1200sets/Month

Product Description

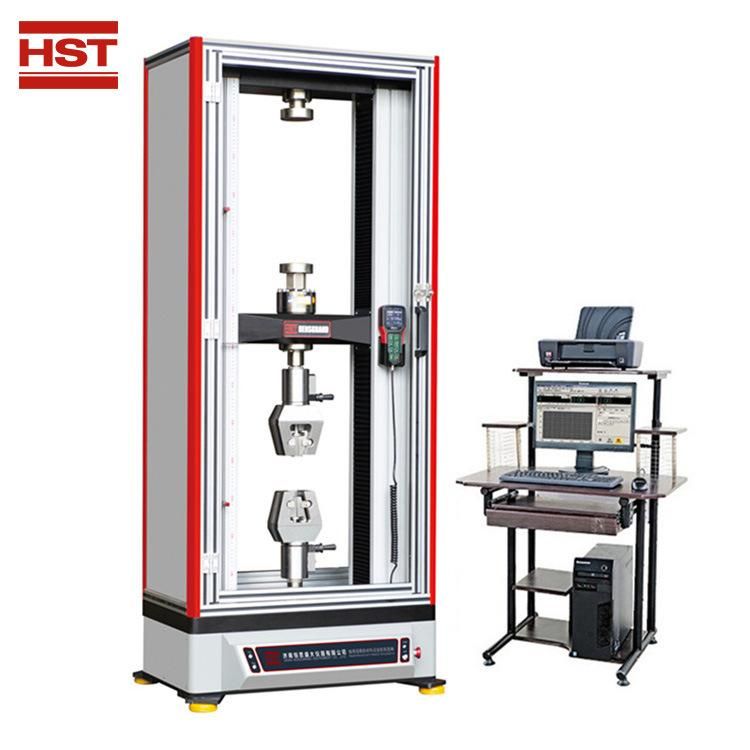

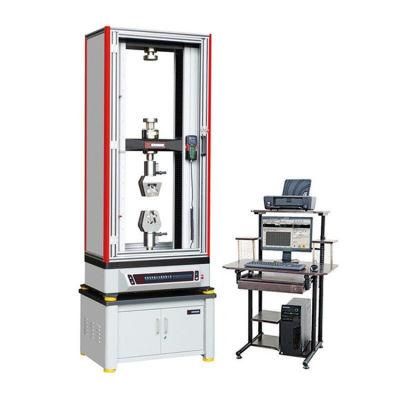

WDW-50kN Computerized  Electronic Universal Testing Machine

1. Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:

Model	WDW-50
Max. load	50 kN
Structure	Four-column floor model, (upper is tensile and lower is compression; upper is compression and lower is tensile)
Control method	Computer control
Load accuracy	1 class/0.5 class (optional)
Load range	2%~100%F·S/0.4%-100% FS (optional)
Resolution	1/300000
Measuring range of deformation	2%-100%
Accuracy Indication of deformation	≤±1%
Disp. indicating relative error	≤±1%
Displacement Resolution	0.01mm
Test Speed	0.05~500mm/min(can be customized)
Effective Tensile space	700mm(can be customized)
Effective Compression space	700mm(can be customized)
Effective Testing width	400mm(can be customized)
Power supply	AC220V±10%,50Hz (can be customized)
