Z Connect Portable Automatic TTR Meter Equipment Turn Ratio Tester for Measuring Single Phase and Three Phase Transformer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Applicable to Transformer：Connected in Y Type, D Type and Z Type
  • Turns Ratio Range：0.8-10000
  • Group Testing Range：1~12
  • Phase Measurement Error：1 Degree
  • Turns Ratio Resolution：0.0001
  • Test Voltage：0~180V

Base Info

  • Model NO.：GDB-D
  • Printing：Print The Test Results by Micro Printer
  • Relative Humidity：≤85% No Condensation
  • Power Input：220V±10% 50Hz±1Hz
  • Working Temperature：-20ºC~40ºC
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：1000 Sets , Month

Description

Turns ratio accuracy0.2% (180V: 0.8~1000)0.5% (180V: 1000~10000)0.2%( 0.8~200)Turns ratio resolution0.0001Test voltage0~180VCommunicationUpload the test results to PC by USB port and make word report by softwarePrintingPrint the test results by micro printerRelative humidity≤85%  no condensationPower input220V±10%  50HZ±1HzWorking temperature-20ºC~40ºCDimension325mm×278mm×188 mmWeight7kg

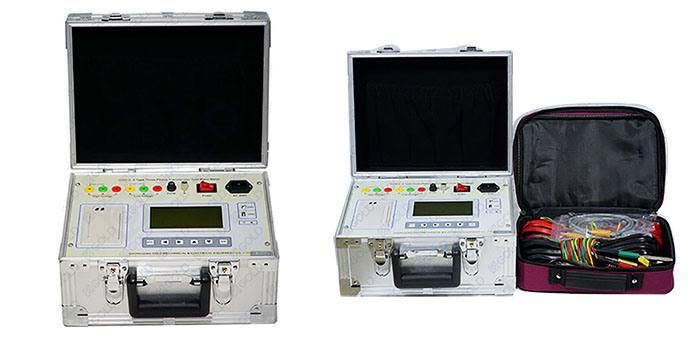

  • Product Show:
Z Connect Portable Automatic TTR Meter Equipment Turn Ratio Tester for Measuring Single Phase and Three Phase Transformer

  • Contacts:


COMPANY PROFILE


CHONGQING GOLD MECHANICAL & ELECTRICAL EQUIPMENT CO., LTD


Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd.  mainly design and manufacture the oil purifier and electrical testing equipment for more than 10 years.

After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;

We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.

And we have gained strong advantage and high reputation in international market.

We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!

Z Connect Portable Automatic TTR Meter Equipment Turn Ratio Tester for Measuring Single Phase and Three Phase Transformer

SERVICE

Pre-sale Service:

  • Inquiry will be replied within 24 hours.
  • Welcome to visit our factory.
  • Technical datas and operation manual sent for evaluation.

After-sale Service:

  • Training how to instal the machine, training how to use the machine at our factory.
  • Engineers available to service machinery overseas at customers' cost.

SHIPPING & PACKING
Z Connect Portable Automatic TTR Meter Equipment Turn Ratio Tester for Measuring Single Phase and Three Phase Transformer

FAQ

  • What's the delivery lead time?

"For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person."

  • What's the payment term?

"For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable."

  • What's the warranty period?

"Warranty period is 1 year"
