• Model NO.：HTGY
• HS Code：9030390000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. HTGY HS Code 9030390000 Production Capacity 200 Sets Per Month

Product Description

Brief introduction

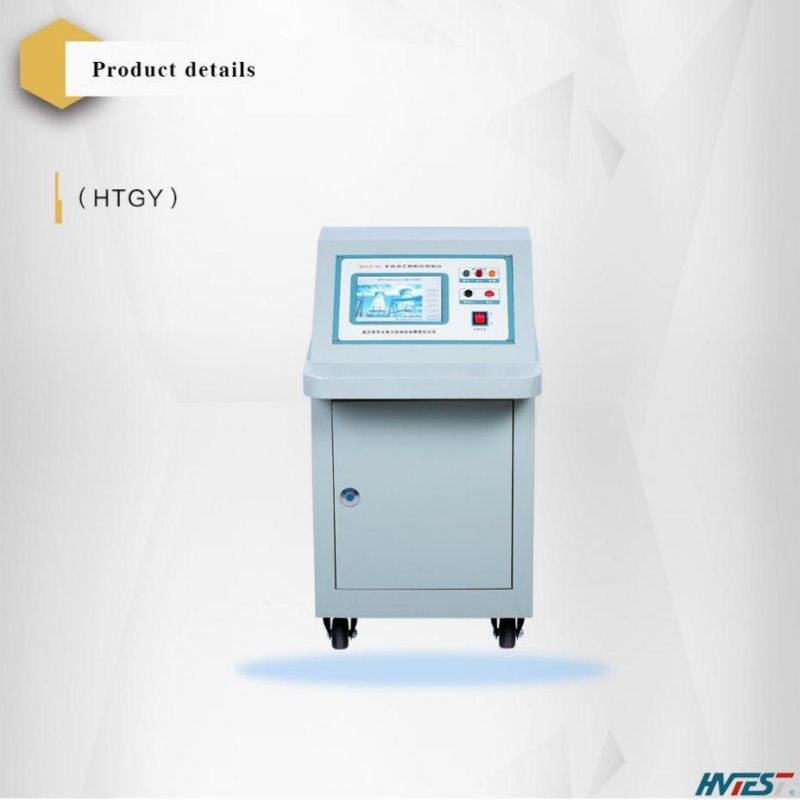

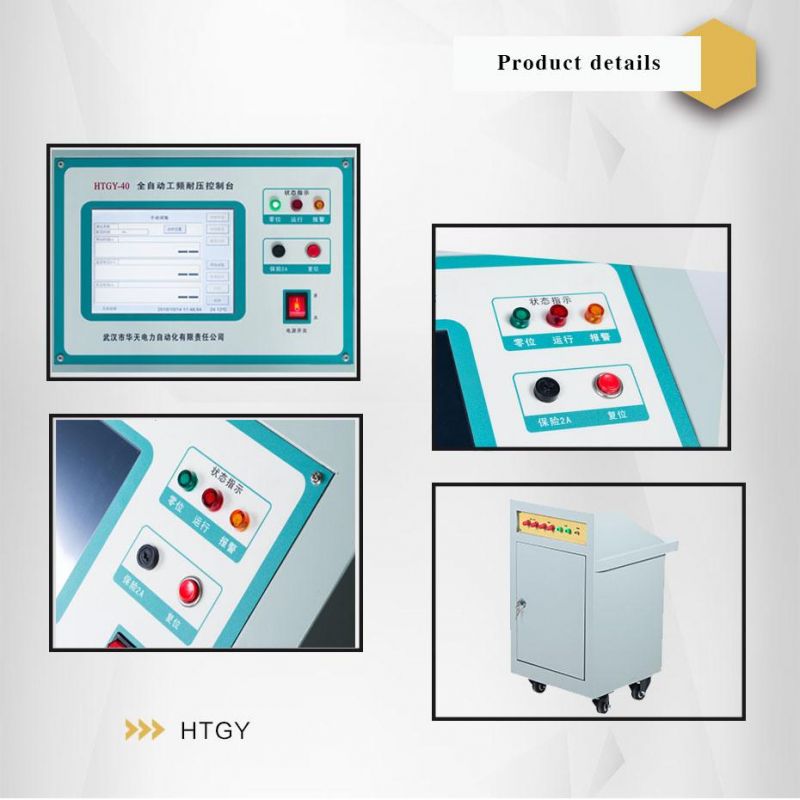

HTGY series automatic operation Cabinet is produced special equipment for light test transformer, easy to maintenance, superior performance, safety and reliability, good structure, durable, easy to move, etc. It is necessary equipment for supply enterprises, large factories, metallurgy, power plants, railways and other electricity maintenance department.
It uses advanced microelectronic processing techniques, all using  processes can be set in advance, and simple to operate. After setting all test items, automatically to test, without human intervention.

Products features1.  Voltage, current, time, and withstand voltage time large LCD display, clear and directly reading;2. The operation is simple and clear, can adapt to a variety of applications;3. Light touching keys operation, all functions are controlled by the keys, improved the security and reliability of products;4. Full digital calibration mode, abandoned old potentiometer adjustment, field use is very convenient, easy to control the accuracy (this function with password protection);5. Key directly set test transformer ratio (this function with password protection), application freely connection of different voltage levels of tester, and a console can match with many sets of transformers;6. Using hardware and software anti-interference technologies, stable performance, strong anti-jamming.7. With four-line output, can be used for overcurrent, overvoltage protection ;8. Time relay start, stop condition can be arbitrarily set. Time can be set from 1 second to 9999 seconds
 Product parameters

Measuring range	0~9999
Measuring accuracy	0.5%±2d
Setting mode	Light touching keys operation, after power off, the setting value will be saved up permanently
Protection mode	Abnormal work automatically reset (WaTChdog), undervoltage automatic reset
Power supply	AC220V ±15%,50Hz±2Hz
Dimension (50KVA)	500*400*900mm3
Weight (50KVA)	55kg
Dimension (20KVA)	500*400*1000mm3
Weight (20KVA)	85kg
Dimension (200C)	270*270*1300mm3
Weight (200C)	16kg

Common problem
1. Is your company a sales company or a manufacturer?
Wuhan Huatian Electric Power Automation CO., LTD.is an industrial and trade enterprise, with its own  factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.

2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
