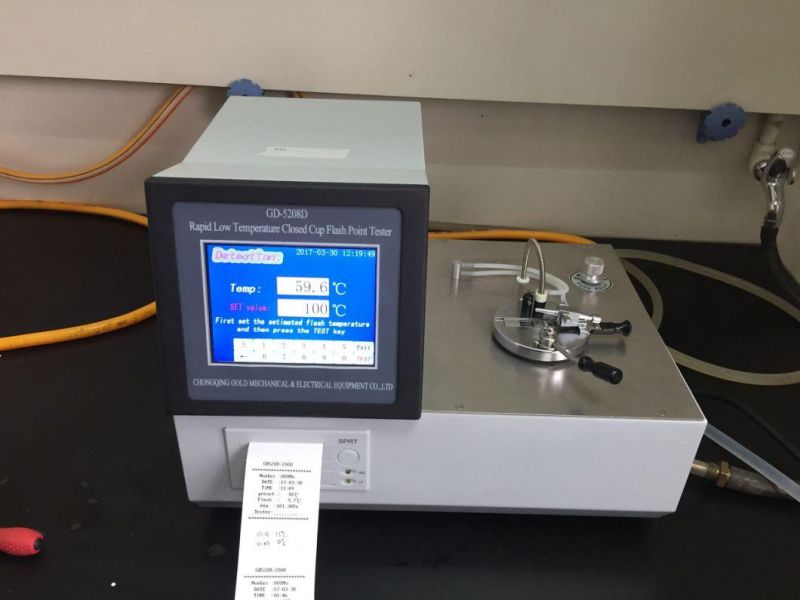

• Model NO.：GD-5208
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1.Power supply: AC(220±10%)V, 50Hz   2.Flash point measuring range: -30ºC~50ºC

3. Precision of determination:



Absolute difference between two determinations is lower than 2ºC(same operator)

  Absolute difference between two determinations is lower than 3ºC(different operators)

4. Temperature control precision: ±0.5ºC5. Igniting device:Electric igniting gun6. Cooling mode:Semiconductor(with cold water cycle at external connection)7. Maximum power consumption:300W8. Ambient temperature:5ºC~30ºC  9. Relative humidity:30%~80%10. Dimension:370mm×280mm×280mm11. Maximum power consumption: 300W

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China. Our products are sold to most countries in the world and they are highly popular because of our good

quality and after-sale service.




At present, there are more than 150 employees, of whom more than 70% are technical personnel with a college

degree or above. With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as the UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, the USA, Mexico, Kenya, Nigeria, South Africa, and other countries worldwide. And we have

gained a strong advantage and high reputation in the international market.

After several years' development, our products have become highly intelligent and wide coverage.
And our company has become one of the leading manufacturers of petroleum testing instrument and electrical testing

instrument.

Packing

Goods are packed in veneer case, which is firm and safe for overseas shipment.
