• Model NO.：STYE-2000G
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Specimen：for Concrete, Cement, Brick
• Loading Style：Manual Delivery Oil Valve and Back Oil Valve
• Certificate：ISO9001:2000
• Electric Safety：Ce Certificate
• Standard：ASTM E4
• Test Frame：Whole Casting
• Test Rang：20kn-2000kn
• Reading Accuracy：±1%
• Displacement Accuracy：±1%
• Noise：Below 40 dB
• Transport Package：Standard Wooden Packing
• Trademark：YF
• Origin：China
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. STYE-2000G Control Computer Control Weight 1000-2000Kg Power Source AC220V Oil Cylinder Position Under Specimen for Concrete, Cement, Brick Loading Style Manual Delivery Oil Valve and Back Oil Valve Certificate ISO9001:2000 Electric Safety Ce Certificate Standard ASTM E4 Test Frame Whole Casting Test Rang 20kn-2000kn Reading Accuracy ±1% Displacement Accuracy ±1% Noise Below 40 dB Transport Package Standard Wooden Packing Trademark YF Origin China Production Capacity 5000pieces/Year

Product Description

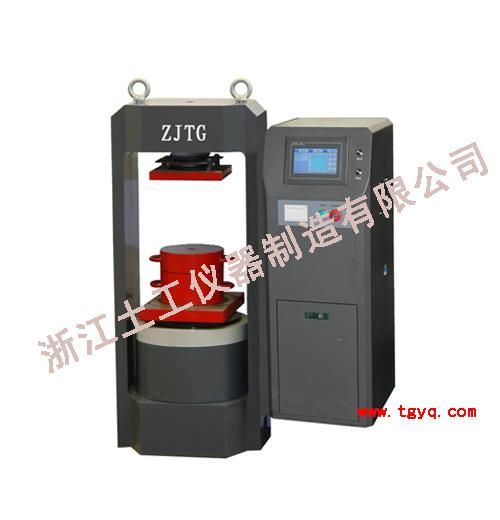

2000Kn Fully Automatic Compression  Machine
 Features: underneath type oil cylinder and hydraulic loading, pendulum testing; six-dimensional gamut; with high precision; easy to operate.
Application: Compression test of building materials including concrete, cement, airbrick, fire proofing tile, engineering ceramics and building stones;
1.Max. load:2000kN
2.Test frame:whole casting
3.Test rang:20kn-2000kN
4.Reading accuracy:±1%
5.Displacement accuracy:±1%
6.Noise:Below 40 dB
7.Working voltage:AC220V±10%
8.It is the latest technology, using servo pump control system for loading system, with Low noise, fast response, high stability and so on.
9.The operating interface uses 10 inch industrial tablet computer, with embedded control software, compact structure, easy operation.
10.The computer can automatically display the load, strength, speed and load curve in the test process, automatically determine whether samples are broken, calculate andsave test results. It can query and print the complete test report.

Packaging & Shipping

Packing Material: Plywood Case meeting export long transport requirement.

Packing Method: Horizontal Packing to saving more shipping cost.

Shipping : within 5-10 days after receive 100% payment .

Shipping way: shipped by sea or Air is available.

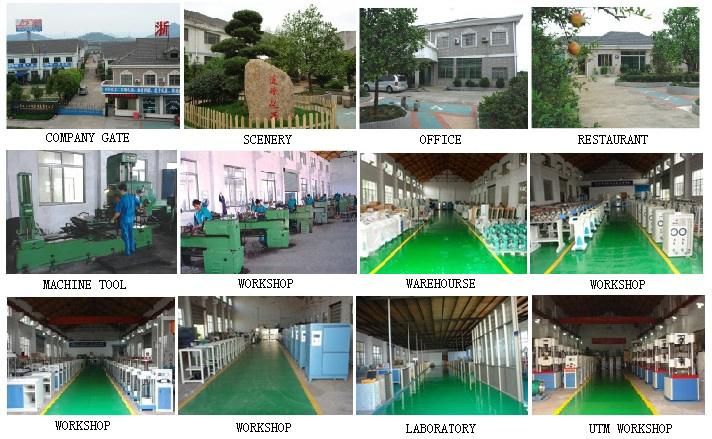

 Company Information

We are one of the professional manufacturing enterprises of geotechnical instruments, highway instruments and building material instruments in China.
Our company's main products are divided into 13 series:
1. Material Testing machines
2. Soil Testing Equipment
3. Cement Testing Equipment
4. Concrete Testing Equipment
5. Asphalt Testing Machines
6. Rock Testing Equipment
7. Aggregate
8. Highway Testing Equipment
9. Balances
10. Moulds
11. Sieves
12. Lab Equipment
13. Tools and Accessories for Lab
14. Testing Equipments for drilling liquid mud
