Skz402 High Quality Thermop Lastics Pipe Plastic Hydrostatic Burst Pressure Burst Laboratory Measuring Instrument

SKZ International Co., Ltd.
  • After-sales Service：24 Hours Online Customer Service
  • Warranty：1 Year
  • Type：Hydrostatic,Burst Tester
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg

Base Info

  • Model NO.：SKZ402
  • Power Source：AC380V
  • Size of Pipe：Dia2-2000
  • Station/Channel：3

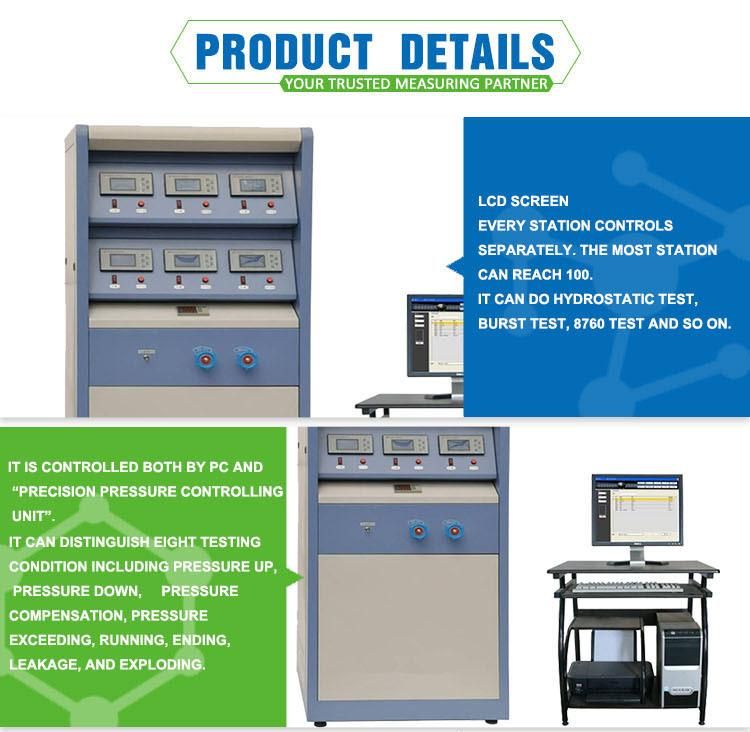

  • Controlling：PC Control and Precision Controlling Unit
  • Saving：PC Saving
  • Printing：Colorful
  • Power：380V 50Hz 1kw
  • Dimension：750*800*1500(mm)
  • Transport Package：Wooden Packing
  • Specification：750*800*1500(mm)
  • Trademark：SKZ
  • Origin：China
  • HS Code：90248000
  • Production Capacity：2000PCS,Year

Description

MaterialStainless SteelCarbon SteelDN10mmΦ48mmΦ3.55×1016Mpa√×DN16mmΦ54mmΦ3.5×1616Mpa√×DN18mmΦ54mmΦ3.55×1816Mpa√×DN20mmΦ50mmΦ3.55×2016Mpa√×DN25mmΦ63mmΦ3.55×2516Mpa√×DN32mmΦ61mmΦ3.55×3216Mpa√×DN40mmΦ69mmΦ3.55×4016Mpa√×DN50mmΦ80mmΦ3.55×5010Mpa√×DN63mmΦ103mmΦ3.55×6310Mpa√×DN75mmΦ122mmΦ5.3×7510Mpa√×DN90mmΦ137mmΦ5.3×9010Mpa√×DN110mmΦ170mmΦ5.3×11010Mpa√×DN125mmΦ185mmΦ5.7×12010Mpa√√DN140mmΦ205mmΦ5.7×13510Mpa√√DN160mmΦ232mmΦ7×16010Mpa√√DN180mmΦ255mmΦ7×18010Mpa√√DN200mmΦ277mmΦ7×20010Mpa√√DN225mmΦ302mmΦ7×22510Mpa√√DN250mmΦ335mmΦ8.6×24510Mpa√√DN280mmΦ382mmΦ12×2756Mpa√√DN315mmΦ425mmΦ12×3106Mpa√√DN355mmΦ465mmΦ12×3456Mpa√√DN400mmΦ516mmΦ16×3926Mpa√√DN450mmΦ566mmΦ16×4406Mpa√√DN500mmΦ642mmΦ16×4906Mpa√√DN560mmΦ702mmΦ18×5506MPa√√DN630mmΦ772mmΦ18×6206MPa√√DN710mmΦ857mmΦ20×7003MPa√√DN800mmΦ948mmΦ20×7903MPa√√DN900mmΦ1078Φ32×8903MPa√√DN1000mmΦ1178Φ32×9902.5Mpa√√DN1200mmΦ1378Φ32×11902.5Mpa√√DN1600mmΦ1678Φ32×15901.5Mpa√√

SKZ402-110-L  Water Tank
It is for hydrostatic/burst testers.

Features:
Matrial: inside: stainless steel, outside: coating plastic.
The water tank with cylinder can open and close very easy. It also has the lock to hold the cover.
The heating pipes are on the side of the water tank in order to maintain or change conveniently.
It has Al2(SiO3)3 asbestos felt with the thickness of 80mm as well as temperature saving device.
It has many pressure connecting ports on the inner side of it, and the frequency of cycling pump from Germany is 6 m3/h.
It has heating controlling system on the side. The temperature can go from room temperature to 95ºC. If the temperature must go to 15ºC, there is another cooling system needed.
It can connect with computer and display curves and temperature data.

Specification
1.Temperature Scope:15--95ºC
2. Display Accuracy: 0.01ºC
3. Temperature Accuracy: ±0.5ºC
4. Temperature Uniformity: ±0.5ºC
5.Controlling: Intelligent Meter.
6. Display:LCD Screen.
7. Open: Pneumatic
8. Automatic Top-Off.
ModelWe can customize the water tank according to your requirement.
