• Model NO.：FSY-150
• Loading Method：No
• Display：Digital
• Control：No
• Weight：41kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Fsy-150 Cement Negative Pressure Lab Sieve
• Application：Lab Sieve Is Widely Used to Determine Cement Finen
• Voltage：AC220V
• Power：600W
• Feeding：25g
• Fineness Range：0.030~1.000mm
• Sieve Time Range：0-599sec
• Negative Pressure：4000-6000 PA
• Transport Package：Wooden Case
• Specification：0.29CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FSY-150 Loading Method No Display Digital Control No Weight 41kgs Power Source AC220V Oil Cylinder Position No Product Name Fsy-150 Cement Negative Pressure Lab Sieve Application Lab Sieve Is Widely Used to Determine Cement Finen Voltage AC220V Power 600W Feeding 25g Fineness Range 0.030~1.000mm Sieve Time Range 0-599sec Negative Pressure 4000-6000 PA Transport Package Wooden Case Specification 0.29CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

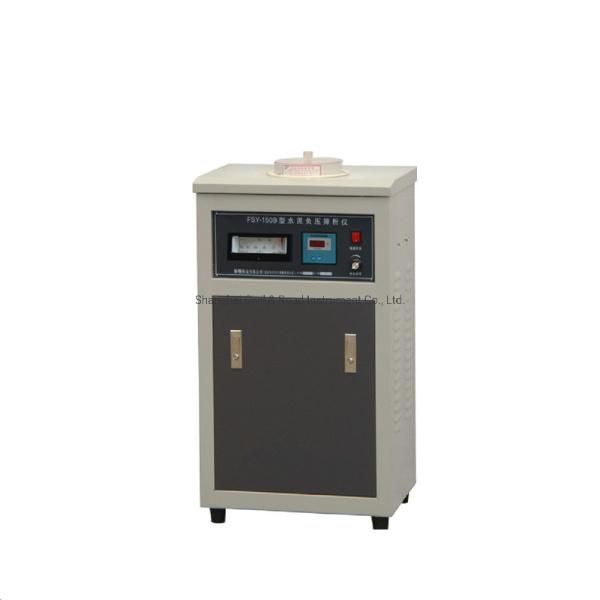

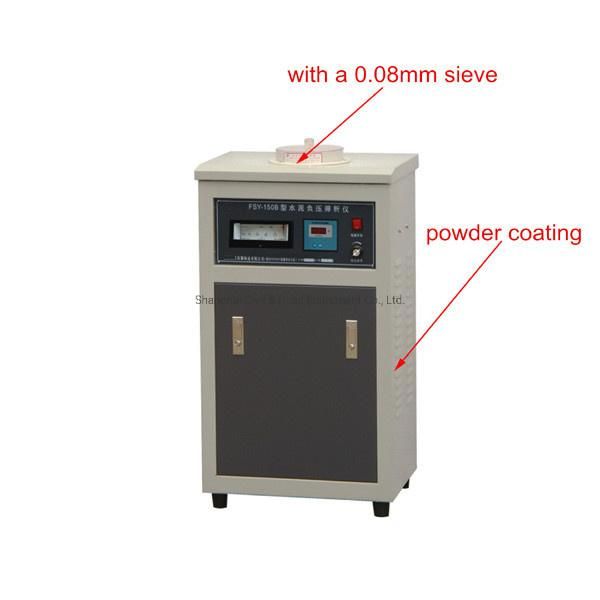

FSY-150 Cement Negative Pressure Lab Sieve

Standards:  GB1345-91 (Sieve Analysis method of cement fineness 80um )

Application: Lab sieve is widely used to determine cement fineness. Air flow takes the role as dynamic media. The whole system is under negative pressure,  specimen under test will be in flow state under the action of airflow sprayed by the rotating gas nozzel,  and travel along with airflow. Fine particles whose  size smaller than sieve aperture are extracted away, leaving particles whose size larger than sieve aperture.

The device can determine the fineness of Portland cement, ordinary cement, pozzolanic cement, flyash cement, etc.
It mainly consists of screen pedestal, micro motor, vacuum cleaner, cyclone, and electrical control components.

Specification:


Voltage	AC220V
Power	600W
Feeding	25g
Fineness range	0.030~1.000mm
Sieve time range	0-599sec
Negative pressure	4000-6000 Pa
Noise	< 75db
Overall dimensions	60X50X98cm
Weight approx	41 kg
