• Model NO.：STDKZ-5000
• Loading Method：No
• Display：Digital
• Control：Digital Control
• Weight：180kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stdkz-5000 Electric Antiflex Testing Machine
• Application：Test Antiflex Strength of Cement Mortar and Other
• Jolting Weight：20kg
• Max. Lever Ratio：10:1
• Double Lever Ratio：Max.50:1
• Table Tray Weight(Include Link Lever)：13.75kg;
• Loading Speed：50n,S
• Capacity：1000n for Single Lever, 5000n for Double Lever
• Precision：1%
• Supporting Roller Space：100mm
• Transport Package：Wooden Case
• Specification：0.42CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STDKZ-5000 Loading Method No Display Digital Control Digital Control Weight 180kgs Power Source AC220V Oil Cylinder Position No Product Name Stdkz-5000 Electric Antiflex Testing Machine Application Test Antiflex Strength of Cement Mortar and Other Jolting Weight 20kg Max. Lever Ratio 10:1 Double Lever Ratio Max.50:1 Table Tray Weight(Include Link Lever) 13.75kg; Loading Speed 50n/S Capacity 1000n for Single Lever, 5000n for Double Lever Precision 1% Supporting Roller Space 100mm Transport Package Wooden Case Specification 0.42CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

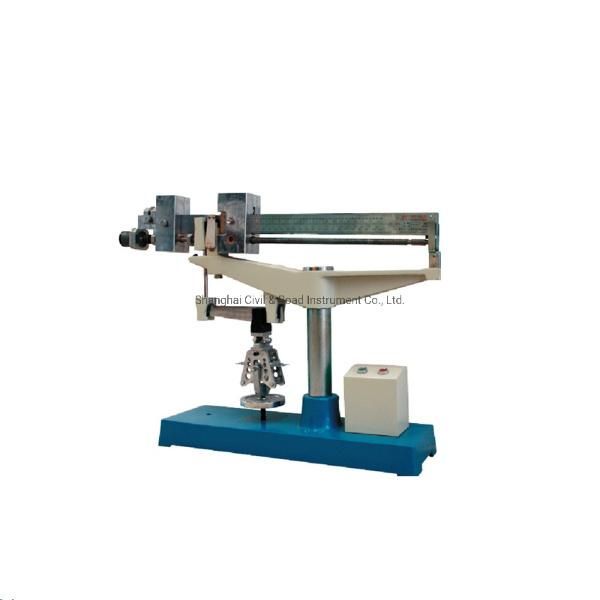

STDKZ-5000 Electric Antiflex Testing Machine

Application: test antiflex strength of cement mortar and other non-metal brittle materials.
Product Description:
Cement Antiflex Testing Machine is to test the bending strength of plastic mortar in cement plant, construction units and some related academy, research institute. Also it can be used to bending strength experiments on other non-metallic fragile materials.

The max testing force is 1000N when using single leverage, while 5000N when using double leverage. The scale has conversion scales specialized in cement plastic mortar bending strength and resistance power.. when the max testing force is 1000N, the reading accuracy can be 0.4N and 0.001MPa; while the max testing force is 5000N, the accuracy can reach 1N and 0.005MPa.
Feature:
1. Screw rod, rotating driven by motor
2. Second leveler
3. Up and down jigs
Specification:


Max. lever ratio	10:1
Double lever ratio(bottom beam distance ratio) (maximum)	max.50:1
Loading speed	(10±1)N/s  (50±5)N/s
Capacity	1000N for single lever, 5000N for double lever
Precision	±1%
Anti-bending fixture	Loading roller and support roller diameter φ10mm Support roll distance 100mm Spacing of draw plate 46mm
Sensitivity	Correct the lever balance when double lever, and add 1g at the level of 500mm from the fulcrum. Lever angle> 1/50
Supporting roller space	100±0.1mm
Bending fixture	Diameter of loading roll and supporting roll :10mmΦ
	Support roller spacing:100mm
	Baffle plate span:46mm
