• Model NO.：HZDD-19
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Name：Dropping Point Tester
• Power Supply：AC 220V±10% 50 Hz
• Input Power：1250W
• Temperature Range：Ambient to -69ºC
• Temperature Control Accuracy：±0.5ºC
• Refrigeration System：New Type Refrigeration Compressor
• Ambient Temperature：10-35ºC
• Relative Humidity：≤85%
• Heating Power：400W
• Filtration Filter：363 Mesh Stainless Steel Wire Mesh
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9027809900
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZDD-19 Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Name Dropping Point Tester Power Supply AC 220V±10% 50 Hz Input Power 1250W Temperature Range Ambient to -69ºC Temperature Control Accuracy ±0.5ºC Refrigeration System New Type Refrigeration Compressor Ambient Temperature 10-35ºC Relative Humidity ≤85% Heating Power 400W Filtration Filter 363 Mesh Stainless Steel Wire Mesh Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9027809900 Production Capacity 100 PCS/Month

Product Description

ASTM D2265 Petroleum Products Appartus Lubricating Grease Dropping Point Tester

Application

measuring the grease dropping point of wide temperature range

Features
The wide temperature range grease drop point tester adopts metal bath; digital display temperature control; lighting is provided at the rear of observation window; 6 holes for easy observation.

Technical Parameters

Model	HZDD-19
Metal bath power	700W
Temperature Control Range	bath temperature~400ºC(digital display);
Temperature control accuracy	±3ºC
Grease Cup	chrome plated copper
Temperature Control Point	121ºC,232ºC,288ºC,343ºC
Power Supply	AC220V±10% 50Hz
Input Power	800W
Standard	GB/T3498, ASTMD2265

Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

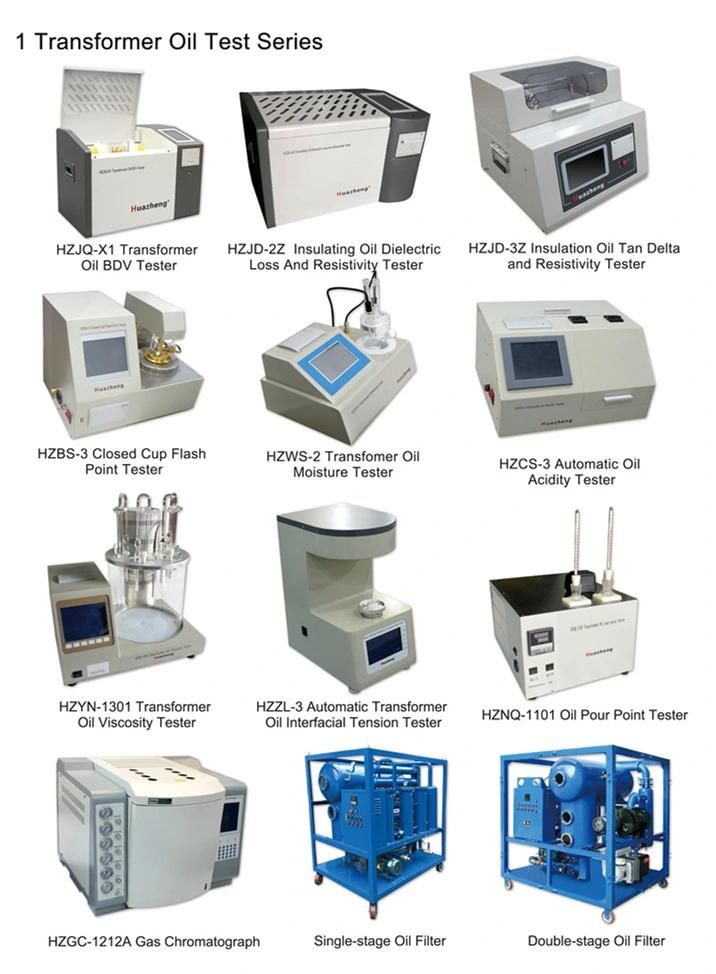

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
