• Model NO.：SXVLF
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：at Customized
• Test Voltage Range：30kv
• Fuse：10 a
• Transport Package：Plywood Case
• Specification：ISO9001 SGS
• Trademark：Sansion
• Origin：Wuhan, China
• HS Code：9030339000
• Production Capacity：100 Units

Basic Info.

Model NO. SXVLF Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source at Customized Test Voltage Range 30kv Fuse 10 a Transport Package Plywood Case Specification ISO9001 SGS Trademark Sansion Origin Wuhan, China HS Code 9030339000 Production Capacity 100 Units

Product Description

80kV Vlf High Voltage AC Hipot Tester For Switchgear

General information:

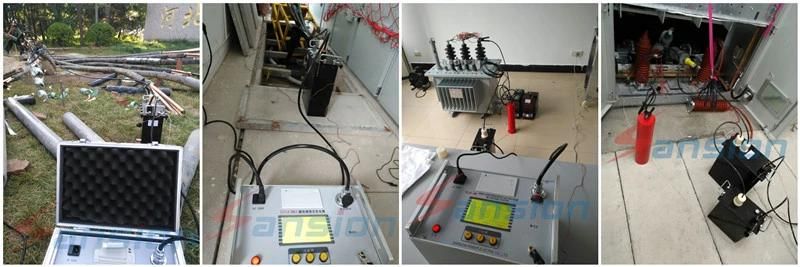

VLF stands for Very Low Frequency. VLF is generally considered to be 0.1 Hz and lower, its major application is for testing solid dielectric cable, transformers, motors, generators, switchgear and other electrical apparatus.

A VLF hipot is just an AC output tester but with an output frequency of 0.1 Hz or lower rather than 50/60Hz. Although the frequency is very low, it is still an alternating current with polarity reversals every half cycle. At 0.1 Hz output, rather than 60Hz, it takes 600 times less current and power to apply an AC voltage to a capacitive load, like a long cable.

Features:
√  Adapts microprocessor controlled, can realize voltage set-up/down, measuring and protecting automatically. Manual intervention is allowable even during the auto voltage boosting.
√  Portable, easy to move.
√  Large LCD can display waveform clearly, and test report can be printed. Built-in printer.
√  The data of current, voltage, and waveform can be sampled at HV side.
√  A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.
√  Closed-loop negative feedback circuit is adopted. No capacity rising during outputting.
√  Over voltage and current protection: When the output is beyond the limitation, the control unit will shut itself down within 20ms.

Features:
√  Adapts microprocessor controlled, can realize voltage set-up/down, measuring and protecting automatically. Manual intervention is allowable even during the auto voltage boosting.
√  Portable, easy to move.
√  Large LCD can display waveform clearly, and test report can be printed. Built-in printer.
√  The data of current, voltage, and waveform can be sampled at HV side.
√  A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.
√  Closed-loop negative feedback circuit is adopted. No capacity rising during outputting.
√  Over voltage and current protection: When the output is beyond the limitation, the control unit will shut itself down within 20ms.



Specifications:
√   Peak voltage: 30kV
√   Output frequency: 0.1Hz, 0.05Hz and 0.02 Hz (selectable)
√   Fuse: 10A
√   Maximum load capacity: 1.1μF@0.1Hz; 2.2μF@0.05Hz; 5.5μF@0.02Hz
√   Power supply: 220V ±10%, 50Hz ±5% (If using a portable generator, make sure the output voltage and frequency are stable. Power >3kW. Power supply @ 110V 60Hz is optional)
√   Output voltage accuracy: peak voltage instability ≤1%; frequency instability ≤3%.
√   Voltage waveform distortion: ≤5%.
√   Working environment:       indoor or outdoor; -10ºC-+50ºC; 85%RH.
√   Weight: Control unit - 4kg; HV unit: 25kg.

Warranty: One year quality guarantee after shipment.

More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!

Please contact Sansion Power Electric for details information, we can select correctly designed products for you.
