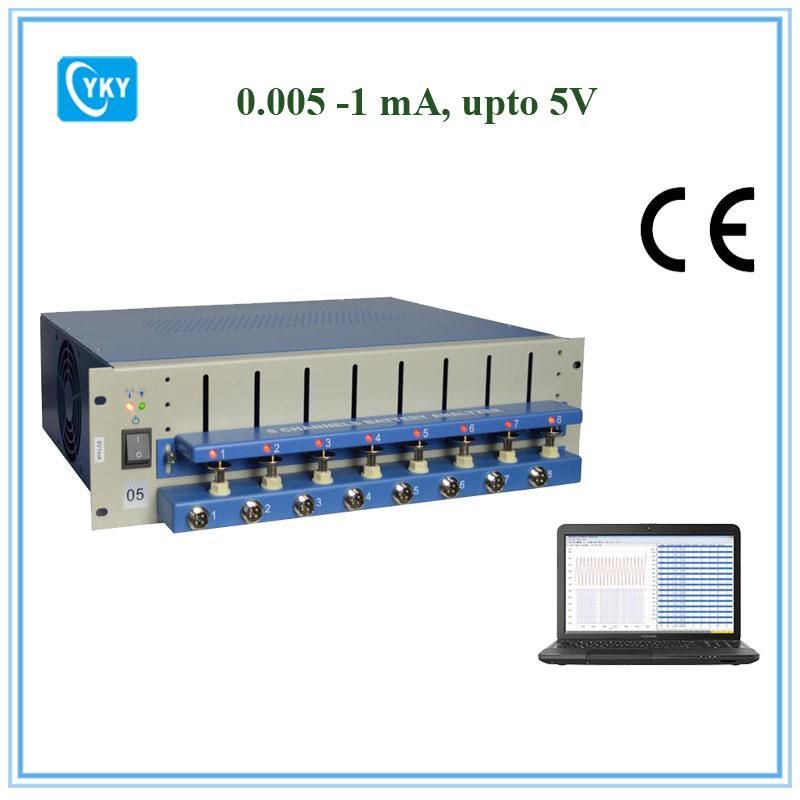

8 Channel Battery Analyzer (0.005 -1 mA, upto 5V) W/ Adjustable Cell Holders Laptop & Software
Zhengzhou CY Scientific Instrument Co., Ltd.- Type：8 Channel Battery Analyzer
- Test Region：Current
- Application：Small Coin Cells and Cylindrical Batteries
- Customized：Non-Customized
- Item Name：8 Channel Battery Analyzer
- Current Range：0.005 Ma - 1.0 Ma
Base Info
- Model NO.：BST8-WA
- Transport Package：Wooden Case
- Specification：8 Channel Battery Analyzer
- Trademark：CYKY
- Origin：China
- Production Capacity：500 Sets Per Month
Description
- Range: 0.005 mA - 1.0 mA
- Accuracy: ±(0.05% of reading + 0.1% of range)
- Range: 0.5 - 5V programmable
- Accuracy: ±(0.05% of reading + 0.1% of range)
- Eight independent programmable channels
- Each channel can set different working modes and functions independently
- Two types of battery holders are included in the BST8-WA Standard package:

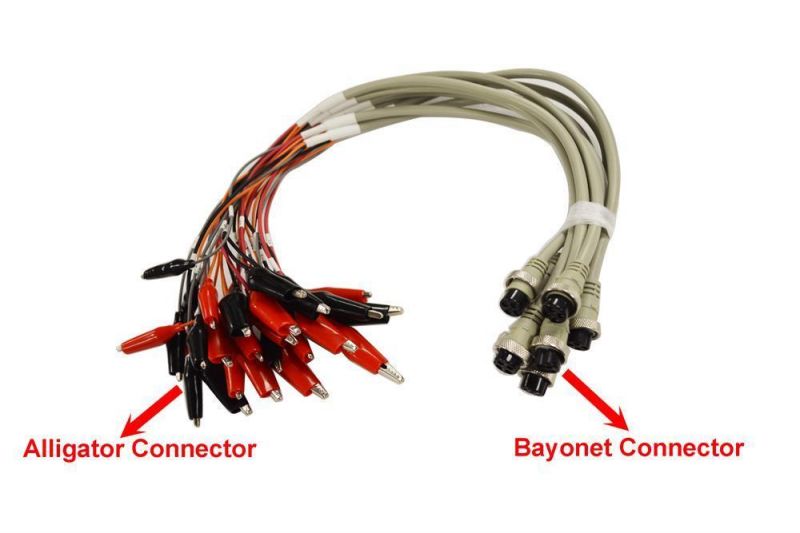

- 8 alligator clips with cable for universal connecting (especially for pouch cell, pls reference picture 1-2 below )

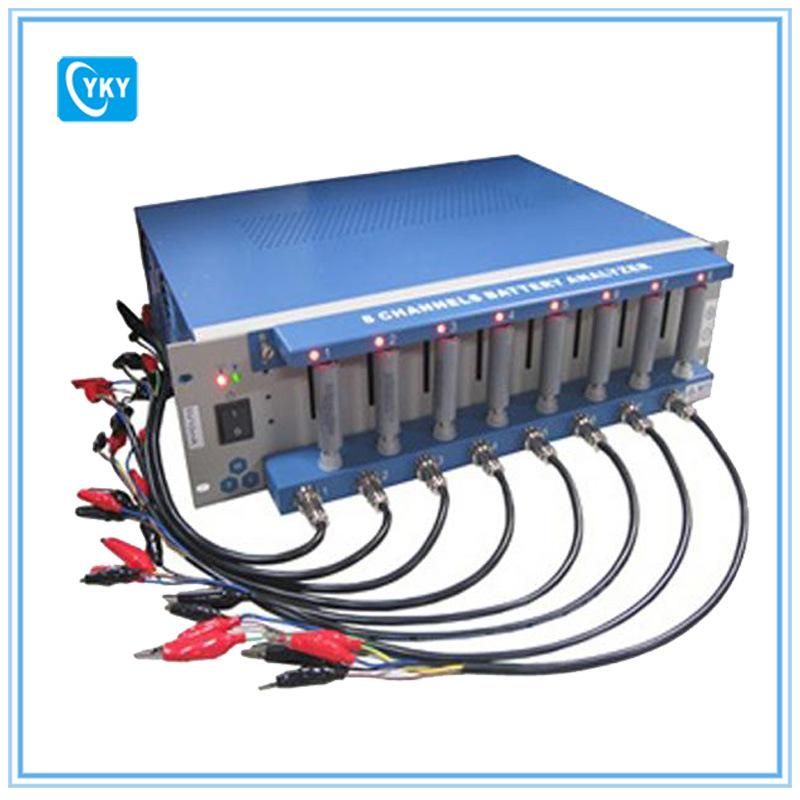

- 8 spring load holders with adjustable height for measuring cylinder or coin cell up to 70mm(H) (picture below 3-4

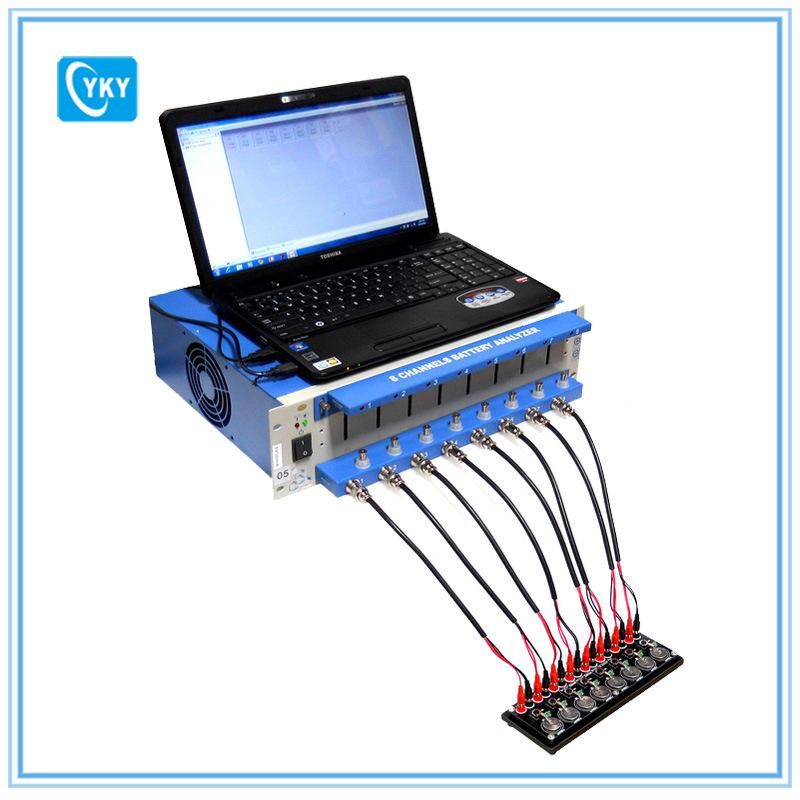

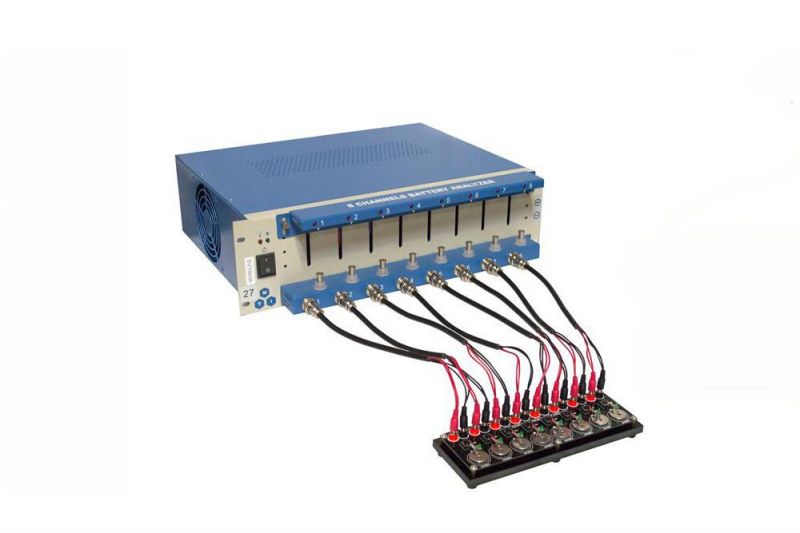

- Optional holder: 8-Channel coin cell testing board for measuring coin cells easily ( Pic 5 )
- The testing software (TC5.3) is included to set various working modes for measuring capacity and lifecycle of all types of rechargeable batteries
- Working modes Include constant current discharge, constant current charge, constant voltage charge, constant resistance discharge, rest, etc
- Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc
- With real-time monitoring interface and integrated graph/data windows, the testing process can be observed more directly and efficiently
- During the test, the software will provide instructions and warnings for assistance
- The calibration software can be used to calibrate the analyzer
- MS Excel 2013 30 days free trial is pre-installed for you to output the Excel data file.(Note: Updated information on 5/21/2015)
- Different types of curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
- Forms of data are created by software. User can easily compare the performance of the batteries tested in channels both visually and statistically
- Brand new laptop with MS Window 8, MS Excel 2013 30 days free trial is included and latest version testing software are installed and calibrated for immediate use
- Up to 20 sets of analyzers can be simultaneously controlled by one PC
- Notice: It is suggested to use an external hard drive to keep an instant backup of the collected data.
- CE Certified
- MET, TUV, CSA, UL certification are available upon request at extra cost
- New buyers must buy the software installed laptop to avoid trouble from installation. If you like to run multiple battery analyzers on one Laptop, you can just buy multiple analyzers with one laptop which are offered at a discounted price.
- $500 will be deducted if one analyzer is purchased without the basic laptop.
- The customer can easily combine up to 20 battery analyzers (0.005-1mA, 0.1-10mA, 6mA-3000mA) by using normal Ethernet cable connector via one computer.
- You may order our movable rack to organize the battery analyzers
