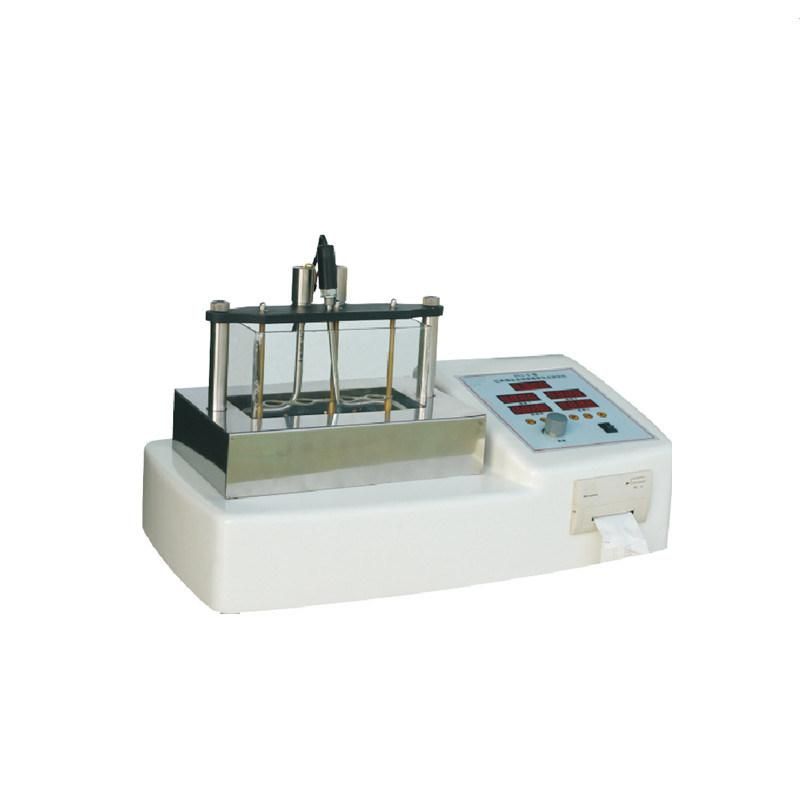

Stll-5 Automatic Digital Ring and Ball Apparatus
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service:24 Hours Online Support
- Warranty:1 Year
- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:<900kg
- Type:Ring and Ball Apparatus
- Maxcapacity:No
Base Info
- Model NO.:STLL-5
- Accuracy Grade:1
- Load Way:Digital Display
- Loading Method:No
- Display:Digital
- Control:No
- Weight:35
- Power Source:AC220V
- Oil Cylinder Position:No
- Product Name:Stll-5 Automatic Digital Ring and Ball Apparatus
- Application:The Softening Point Is a Fundamental Property of a
- Suitable for Testing:4 Samples Simutaneously
- Rea Time Monitor by Infrared Ray:Record Softening Temperature and Print Data Automa
- Temperature Measurement Precision:0.1c
- Temperature Rise:5c,Min
- Temperature Display Resolution:0.02c
- Temperature Control:Binders with Softening Points Below 80c
- Feature:ABS Plastic Overall Casing.
- Transport Package:Wooden Case
- Specification:63X41X41cm
- Trademark:SHTG
- Origin:China
- HS Code:9031809090
- Production Capacity:100PCS,Month
Description
Basic Info.
Model NO. STLL-5 Accuracy Grade 1 Load Way Digital Display Loading Method No Display Digital Control No Weight 35 Power Source AC220V Oil Cylinder Position No Product Name Stll-5 Automatic Digital Ring and Ball Apparatus Application The Softening Point Is a Fundamental Property of a Suitable for Testing 4 Samples Simutaneously Rea Time Monitor by Infrared Ray Record Softening Temperature and Print Data Automa Temperature Measurement Precision 0.1c Temperature Rise 5c/Min Temperature Display Resolution 0.02c Temperature Control Binders with Softening Points Below 80c Feature ABS Plastic Overall Casing. Transport Package Wooden Case Specification 63X41X41cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STLL-5 Automatic Digital Ring and Ball ApparatusProduct name | STLL-5 Automatic Digital Ring and Ball Apparatus |
Application | The softening point is a fundamental property of asphalt. |
Suitable for | testing 4 samples simutaneously |
Rea time monitor by infrared ray | record softening temperature and print data automatically; |
Temperature measurement precision | ±0.1ºC |
Temperature rise | 5ºC/min; |
Temperature display resolution | 0.02ºC |
Temperature control | Water is used as the bath medium for binders with softening points below 80ºC. Above this temperature glycerol is used in place of water.Feature: ABS plastic overall casing. |
