• Model NO.：KMH-512
• Controller：Touch Screen Programmable Controller
• Compressor：Semi-Hermetic Compressor(Imported)
• Transport Package：Strong Plywood Case
• Specification：Standard and customs made
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：100-500kg

Specifications Model ESS-LL225LL5225LL10408LL5408LL101000LL51000LL10Working Chamber Volume(L)2254081000Temp Rate of Change( ºC/Min)510510510Performance -70ºC~+100ºC Rapid Temp Change -40ºC~+85ºC Full Linear ControlHumidity Constancy±0.5ºCTemp Constancy±3.0ºCExterior MaterialCold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless SteelInterior Material Stainless Steel Plate(SUS 304)Insulation MaterialRigid Polyurethane FoamSafety Devicesover pressure,over heat and over current protection for compressor, over temp. protection,CompressorSemi-Hermetic CompressorCooling ModeWater CooledControl systemBalanced Temperature & Humidity Control System(BTC type)HeaterIron-chrome wire heaterBlowerCentrifugal BlowerObservation WindowGlass incorporating heat generatorTemp SensorPt-100 ControllerTouch screen programmable controller Ambient Temp.+5ºC~+35ºCPowerAC 380V/50Hz 3phase 5 wires+ Ground wire Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
Features
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.

Standards Implemented and met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode

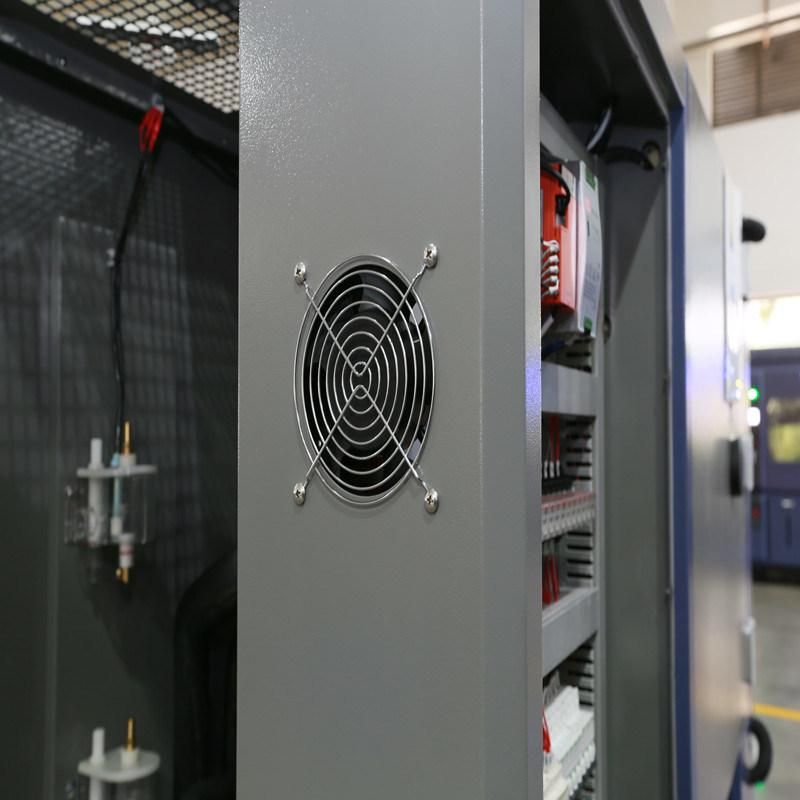

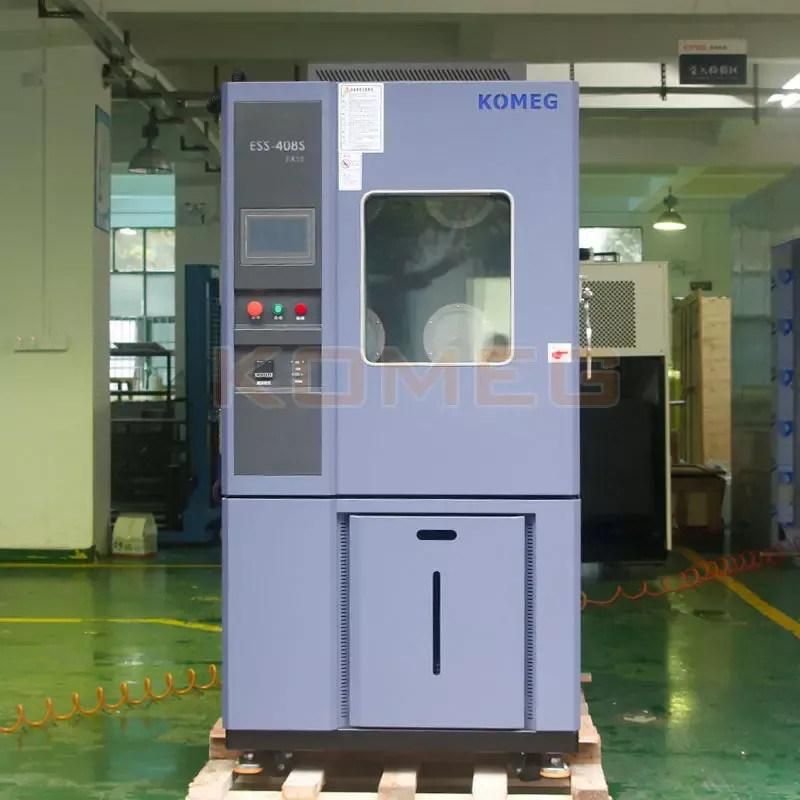

Photos show
