• Model NO.：FOT-80KV Oil BDV Tester
• Oil Cylinder Position：Under
• Capacity：1.6 kVA
• Waveform Distortion：<3 %
• Voltage Inspection Accuracy：1 %
• Output Voltage：80kv
• Speed of Voltage Increase：About 2 Kv,S
• Breakdown Sensitivity：< 0.1 Kv
• Electrode Distance：2.5mm (Electrode Gap Can Be Adjusted)
• Minimum Resolution：0.1kv
• Testing Times：6 Times (1~6 Times Optional)
• Certificate：ISO, CE, IEC156, SGS
• Oil Cup Numbers：1
• Delivery Time：7 Days
• Net Weight：45 Kgs
• Transportation：by Sea, Air, Courier, etc.
• Warranty Period：1 Year

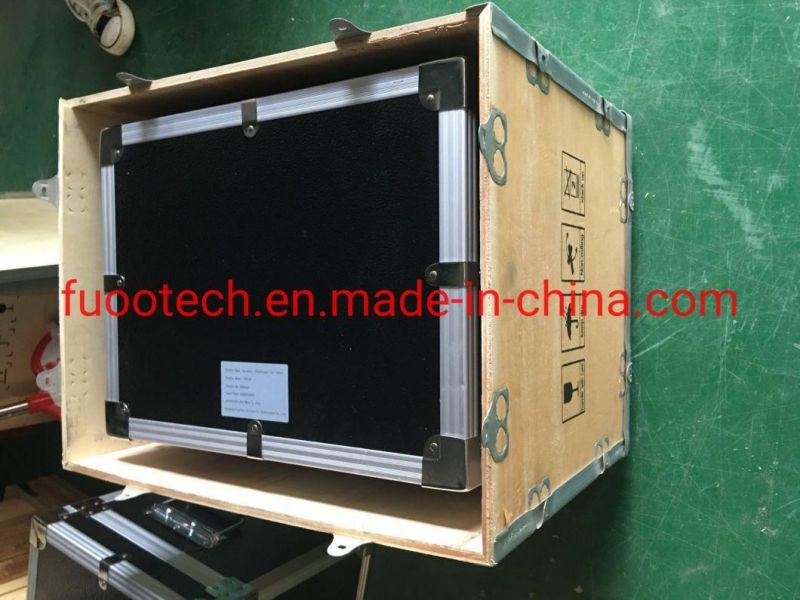

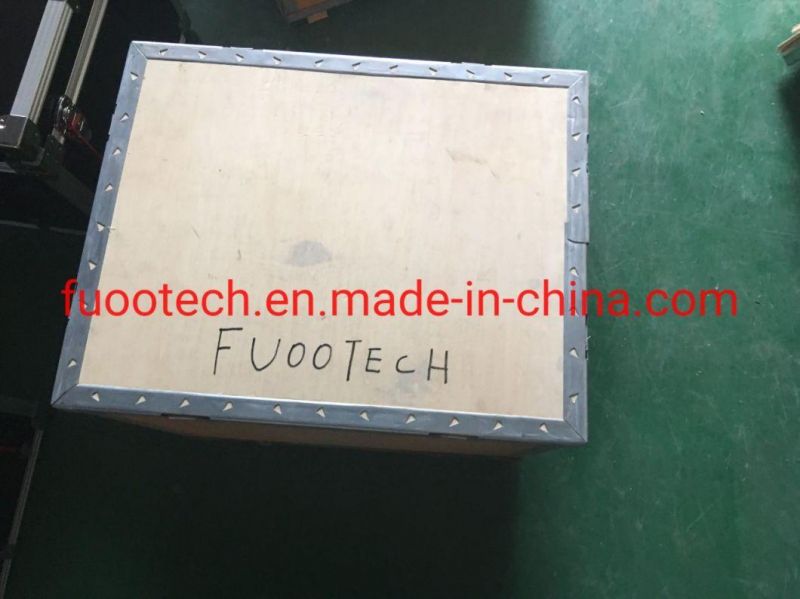

• Transport Package：in Standard Exportation Plywood Case
• Specification：400mm*390mm*390mm
• Trademark：FUOOTECH Oil Tester
• Origin：Chongqing, China
• HS Code：9030899090
• Production Capacity：1000 Units Per Month

Basic Info.

Model NO. FOT-80KV Oil BDV Tester Oil Cylinder Position Under Capacity 1.6 kVA Waveform Distortion <3 % Voltage Inspection Accuracy 1 % Output Voltage 80kv Speed of Voltage Increase About 2 Kv/S Breakdown Sensitivity < 0.1 Kv Electrode Distance 2.5mm (Electrode Gap Can Be Adjusted) Minimum Resolution 0.1kv Testing Times 6 Times (1~6 Times Optional) Certificate ISO, CE, IEC156, SGS Oil Cup Numbers 1 Delivery Time 7 Days Net Weight 45 Kgs Transportation by Sea, Air, Courier, etc. Warranty Period 1 Year Transport Package in Standard Exportation Plywood Case Specification 400mm*390mm*390mm Trademark FUOOTECH Oil Tester Origin Chongqing, China HS Code 9030899090 Production Capacity 1000 Units Per Month

Product Description

Brief Introduction:

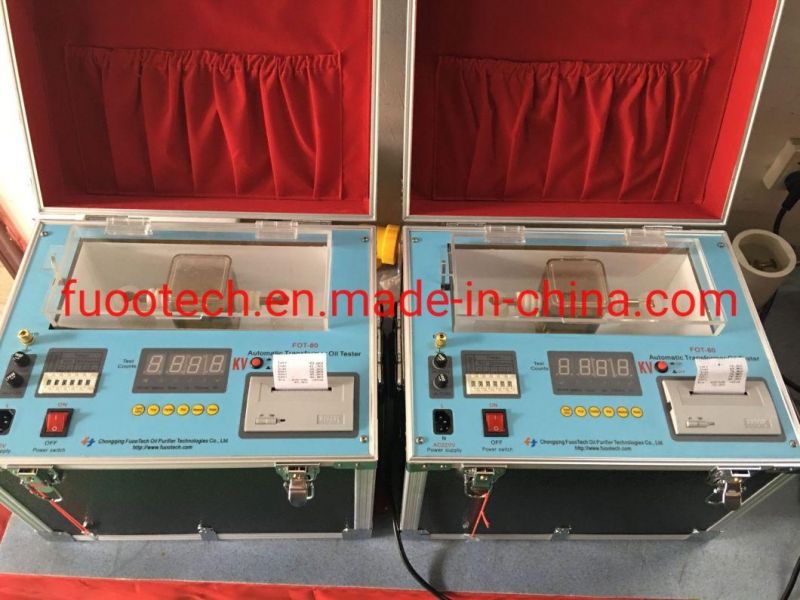

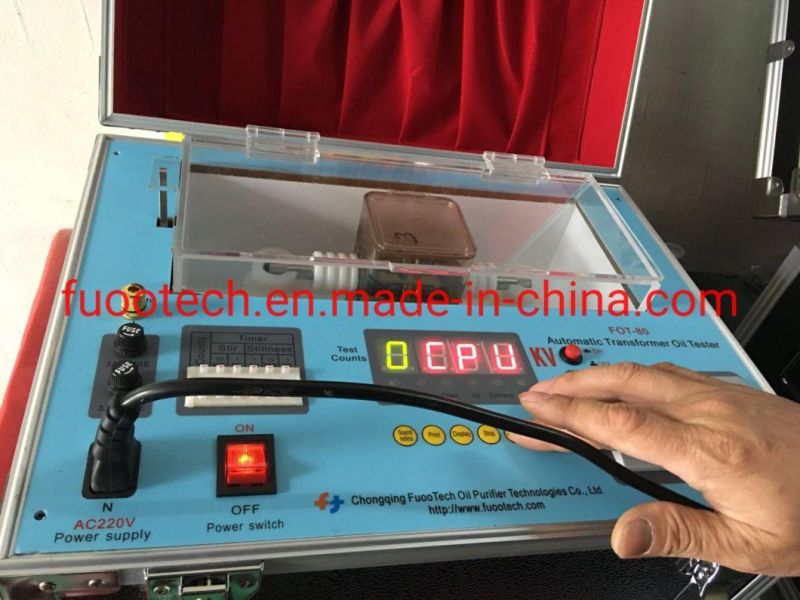

FUOOTECH Series FOT-I-80kV Fully Automatic Transformer Oil BDV Tester (One Cup) is applied to test the insulating oil's dielectric strength (break-down voltage value), which is designed as per the requirement of IEC60156 Testing Method of Insulation Oil Medium Strength, which via proper programming, has got functions of auto boosting, step down, stirring, display and print out.

Series FOT-I-80kV Fully Automatic Transformer Oil BDV Tester adopts industrial SCM to control, which is applied to integrate circuit, new model I/O connection, particular testing and anti-jamming technology which largely improve the machine's capacity.





Main features:

1.    Simple operation, fully automatically.
2.    Menu controlled. Input data can be cleared
3.    Can store 99 groups' oil testing data which is convenient to reading and print.
4.    Can upgrade software through RS232 (Optional)
5.    High capacity of anti-jamming and high precision of testing.

6.    Small volume, light which operated in the open air very conveniently.
7.    The set shall be provided with smooth and continuous of output voltage between zero and maximum having no distortion of waveform.
8.    Audio sound and visual signal will indicate at the instant of sample failure.


Technology and parameter data

 1.  Power supply: AC220V ±10% , 50 HZ ±5%
 2.  Output voltage: 0 to 80KV, 100KV
 3.  Capacity: 1.6KVA (for 80KV), 2.0KVA (for 100 kV)
 4.  Speed of Voltage increase: about 2 kva/s
 5.  Voltage inspection accuracy: 3%
 6.  Dielectric strength sensitivity : <2KV

 7.  Wave form distortion : ≤ 3%
 8.  Time of dielectric strength: ≤ 10ms
 9.  Working Environment: Temperature: 0ºC~ 80ºC, humidity: ≤ 85%
10. Storage environment: temperature:-30ºC~ 60ºC, humidity: ≤ 75%
11. Test cell: Glass, with protective cover and stirrer.
12  Electrodes:  hemispherical 2.5mm gap
13. Dimension: 400mm*390mm*390mm
14. Net Weight:  48 KGS
