Jp Small Vertical Balancing Machine for Fan Blower Impeller
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Vibration Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：PHLD-5
- Loading Method：Dynamic Load
- Display：Needle
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Length：1100 mm
- Width：650 mm
- Height：1000 mm
- Gross Weight：150 Kg
- Transport Package：Packed in Fumigated Wood Box
- Specification：ISO. CE SGS
- Trademark：Jp
- Origin：Shanghai China
- HS Code：903110009
- Production Capacity：1000 Sets,Month
Description
Basic Info.
Model NO. PHLD-5 Loading Method Dynamic Load Display Needle Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Length 1100 mm Width 650 mm Height 1000 mm Gross Weight 150 Kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE SGS Trademark Jp Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/MonthProduct Description

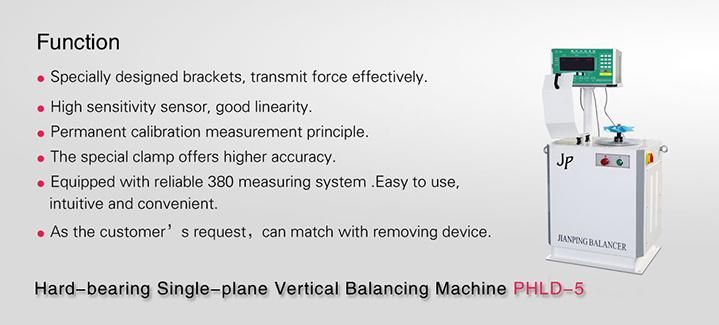

Jp Small Vertical Balancing Machine for Fan Blower Impeller
Production Description
Specially designed, solid brackets can effectively transmit mechanical force
Durable and reliable sensor possesses high sensitivity and good linearity
Permanent calibration brings high accuracy
Special clamp offers higher accuracy and easier operation
Advanced electrical measuring system and friendly man-machine interface
As the customer's request, the de-weighting system can be equiped
Delivery inspection
Range of Application
Mainly used in balancing fan impeller, pump impeller, range hood fan, flywheel, grinding wheel, chuck, clutch, brake disc, saw blade, brake, tool, torque converter, belt pulley etc.
It can be equipped weight-removing equipment for customer if demanded.
Factory Outlook
Special Features
JP-380 Micro-computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor, The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support models available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability Several different electric testing systems(JP-580B, JP-580) are available.
Certificates
Production Parameters
| Technical data at a glance | PHLD-5 |
| Weight of Workpiece (kg) | 5 |
| Max. Outer Diameter of Workpiece (mm) | 350 |
| Height of Workpiece (mm) | 120 |
| Rotating Speed of Main Shaft (r/min ) | 900 |
| Motor Power (KW) | 0.18 |
| Min Achievable Residual Unbalance Amount. (e mar ) | 2g. mm/kg |
