• Model NO.：HZWS-X2
• Weight：0-100Kg
• Power Source：AC220V
• Usage：Auto Testing Machine
• Power Supply：AC100V~240V , 50Hz
• Size：340*295*155 mm
• Measuring Range：3ug-100mg
• Largest Power：<40
• Resolution：0.1ug
• Largest Electrolytic Speed：40 Ug,S
• Oil Content Analyzer：Water Content in Oil Tester
• Net Weight：5.5kg
• Electrolysis of Water：10ug~1000ug
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9027809900
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZWS-X2 Weight 0-100Kg Power Source AC220V Usage Auto Testing Machine Power Supply AC100V~240V / 50Hz Size 340*295*155 mm Measuring Range 3ug-100mg Largest Power <40 Resolution 0.1ug Largest Electrolytic Speed 40 Ug/S Oil Content Analyzer Water Content in Oil Tester Net Weight 5.5kg Electrolysis of Water 10ug~1000ug Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9027809900 Production Capacity 100 PCS/Month

Product Description

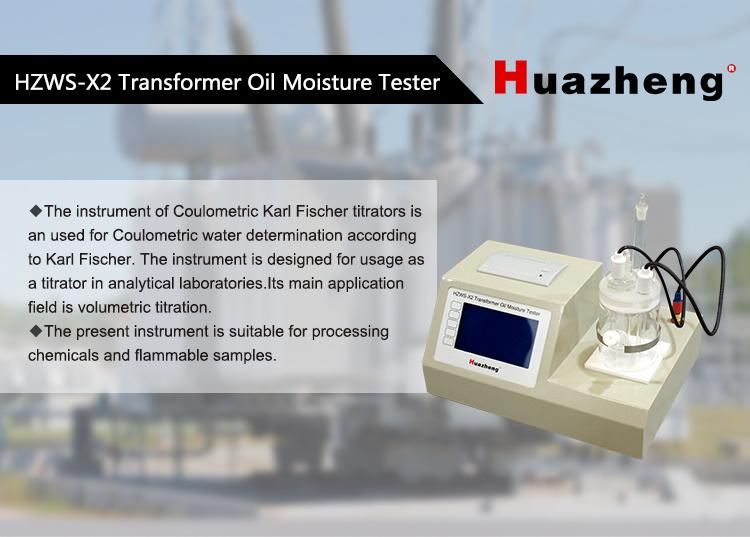

Easy Operation Transformer Oil Trace Moisture Water Content Testing Equipment

I.Introduction

Insulating oil trace moisture analyzer used powerful next-generation processors and peripheral circuit of new, excellent low-power operation makes it possible to compact battery, enables portable function;Criterion for measuring electrode signal for the electrolysis end, its stability and accuracy are key factors affecting the measurement accuracy, due to the use of advanced devices and methods to achieve precise measuring electrode signal detection;Further insight into the characteristics of electrolyte,puts forward a new software compensation correction algorithm, improves the accuracy of measurement;Chinese characters Graphic LCD screen,display the interface intuitive and friendly.

Note: The user matching battery may act according to the actual demand in order to achieve portable feature!




II.Features

1.Used 240*128 graphic dot matrix liquid crystal.

2.Low Power Consumption.

3.High-precision, and it has a strong anti-jamming capability.

4.Three formulas for users to choose, automatically calculate the moisture content.

5.Automatic detection function

6.Automatically stored with time stamp historical records, store up to 255.

7.With screen protection function.

8.USB interface

III.Parameter

1	Method	Karl Fischer Coulometric Titrator Principle
2	Type	Portable
3	Measuring Range	0ug-100mg
4	Resolution	0.1ug
5	the Largest Electrolytic Speed	40 ug/s
6	Power Supply Voltage	AC220V ±20%( customization)
7	Largest power	30w
8	Work Temperature	10~35ºC
9	Work Humidity	≤85%
10	Dimensions	320*240*150mm
11	Weight	5kg

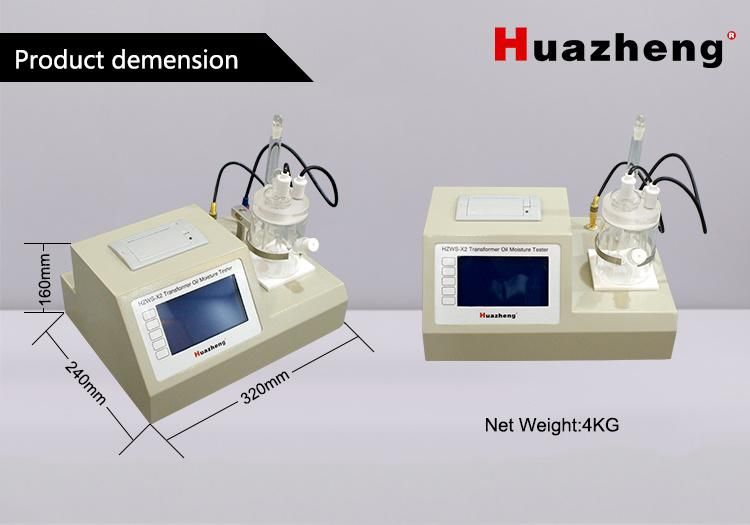

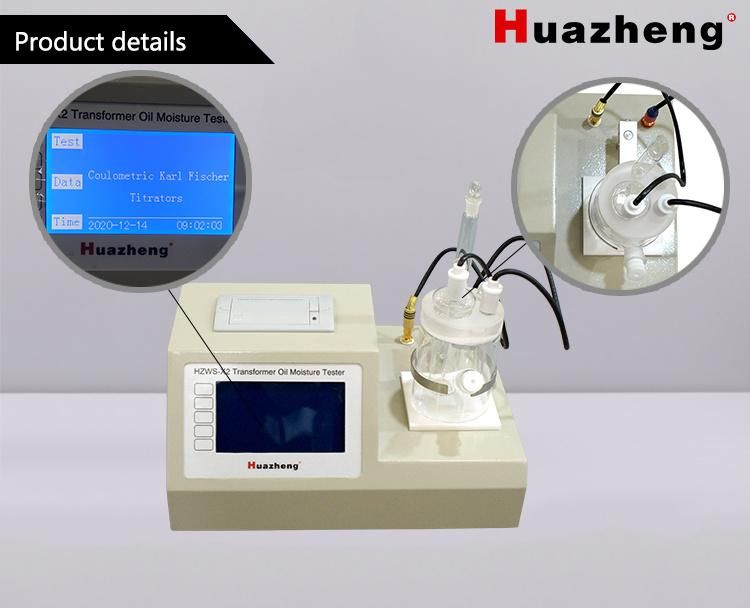

IV.Detailed Photos

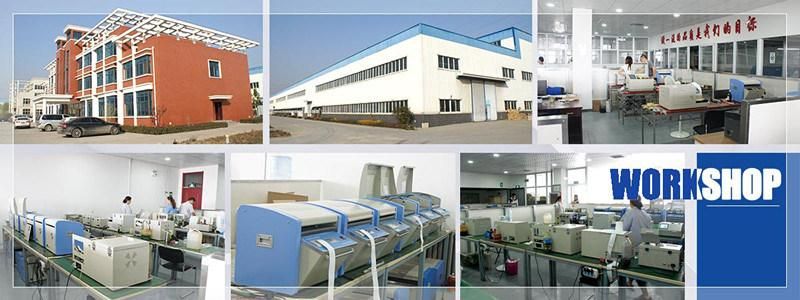

V.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

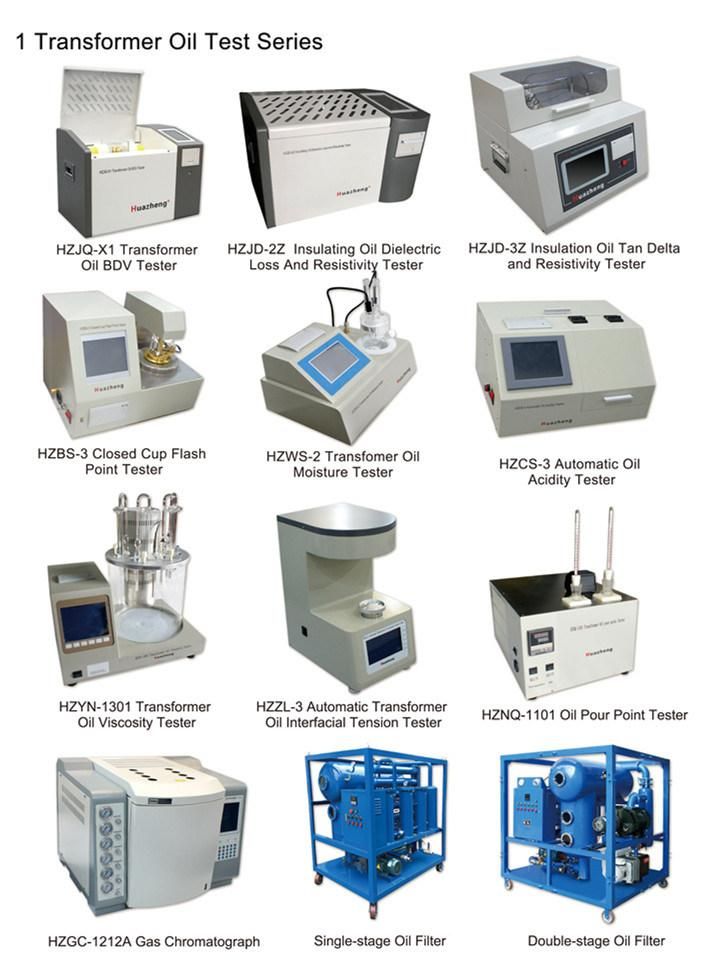

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.





VI.Customer Visit



VII.Exhibition



VIII.Similar Recommendation
