• Model NO.：RTT-01
• Test Mode：Standard
• Tensile & Pressing Force：300n, Optional with Customization
• Torque：2nm
• Specimen Thickness：3mm(Customization)
• Flex Angle：440 Degree , 400 Degree
• Horizontal Stroke：155 mm , 80 mm
• Stations：4
• Trademark：Pubtester
• Origin：China

Basic Info.

Model NO. RTT-01 Test Mode Standard Tensile & Pressing Force 300n, Optional with Customization Torque 2nm Specimen Thickness 3mm(Customization) Flex Angle 440 Degree / 400 Degree Horizontal Stroke 155 mm / 80 mm Stations 4 Trademark Pubtester Origin China

Product Description

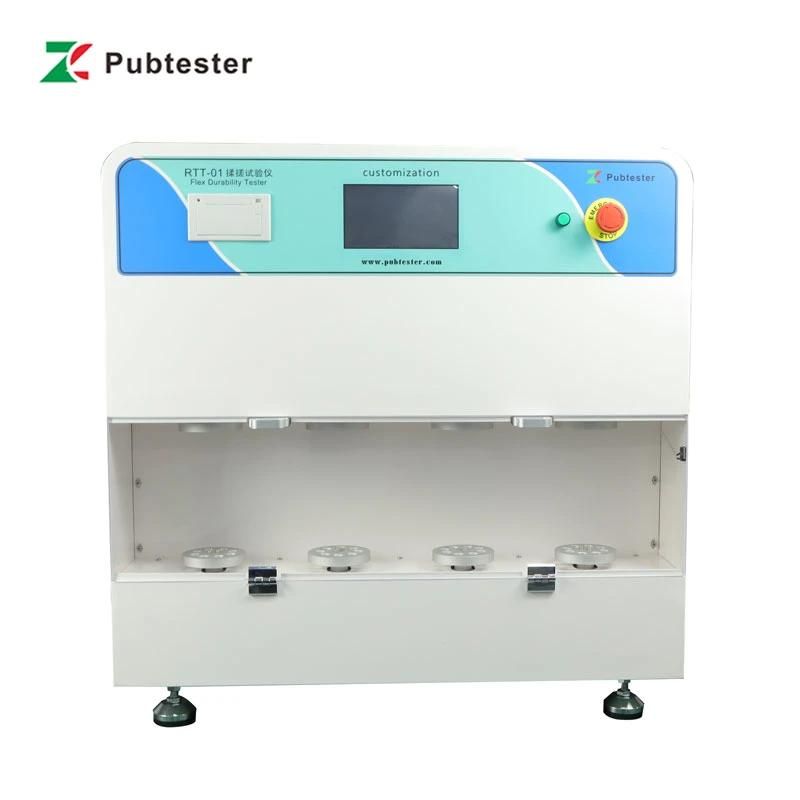

RTT-01 Flex Durability Tester

RTT-01 Flex Durability Tester is professionally applicable to the determination of flex durability of flexible films, composite films and coating films. The instrument can simulate the kneading and creasing behaviors of films happened during production, processing and transportation. The flex durability can be obtained by measuring the changes in number of pinholes or barrier properties after test, which can provide quantitative basis for package design and practical usage.


Product Features
High-end Configuration

• Six standard test modes including condition A, B, C, D, E and F.
• High-frequency data acquisition system, up to 500 times/s to ensure accurate data collection
• High-performance servo motors with closed-loop feedback to ensure full functionality of testing
• Four stations improve the testing efficiency
• Equipped with micro-printer that can print number of experiments, mode and other information

Intelligence and Efficiency

• 7" HD colorful touch screen operation, display test parameters in real time
• With automatic data storage, statistical analysis, power-down automatic memory and other functions, convenient for users to manage data
• Storage up to 5000 test records
• Equipped with an emergency stop button to ensure test safety
• Provides professional customization services to meet the individual needs of users in fixtures, software, etc.
• Free software upgrade service lifetime

Test Principle
Mount the clamping tool on the test bench to fix the sample, set a test number and rotation parameters, and realize sample pretreatment work by rotating, compressing, and stretching the sample.

Applications

Basic Application	Extended application
Flexible Films, Composite Films and Coating Films including plastic films, sheets and composite films e.g. composite films, aluminized films, aluminum plastic composite films, nylon films and coating films for food or drug packages	Test the flex durability of paper materials

Technical Specifications

Specifications	RTT-01
Flex Frequency	45 cpm
Test Mode	Condition A (2700 cycles), Condition B (900 cycles),  Condition C (270 cycles), Condition D (20 cycles),  Condition E (20 cycles partial flex), Condition F (Set freely)
Tensile & Pressing Force	300N, optional with customization
Torque	2Nm
Specimen Thickness	≤3mm(customization)
Flex Angle	440° / 400°
Horizontal Stroke	155 mm / 80 mm
Stations	4
Specimen Size	280 mm x 200 mm
Dimension	800 mm (L) × 450mm (W) × 680mm (H)
Power Supply	220VAC±10% 50Hz
Net Weight	90 kg

Standards
ASTM F392, YY/T0681.12

Configurations
Standard configuration: Instrument, Adjustable Positioning Ring, Micro-printer, Sampler

Optional configuration: Stainless steel clamping tool 64(91mm~114mm)

About Us

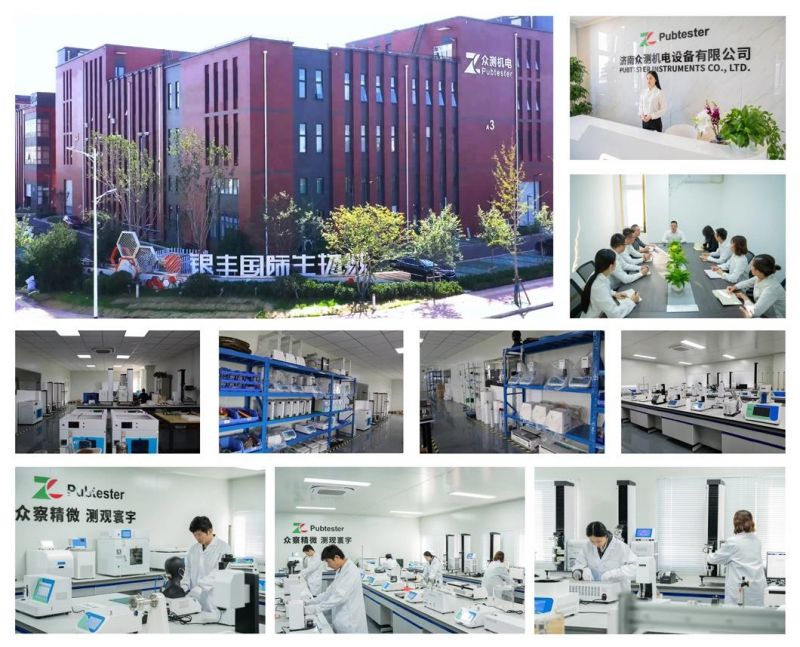

Established in Jinan, China, Pubtester Instruments Co., Ltd has developed into a major manufacturer and supplier of flexible packaging testing instruments in China. In the year of 2020, Pubtester launched a series of testing instruments specilized in medical device (medical dressings, syringes, catheters, gloves and aseptic packaging, etc), which meet the increasing testing demand for medical industry since 2019. Pubtester has its own packaging testing center, equipped with more than 80 sets of testing instruments, which can perform barrier, force and strength, heat sealing, hot tack, coefficient of friction, thickness, tearing, impact, heat resistance, leakage, flex durability , adhesion, color, fastness and other testing items, and provide testing services to customers. By 2021, Pubtester instruments have been exported to more than 40 countries and areas including UK, Germany, Portugal, Spain, Turkey, Greece, Ukraine, UAE, Saudi Arabia, Tunisia, Nigeria, Morocco, Kenya, Thailand, Malaysia, India, Indonesia, Vietnam, Columibia, Mexico, etc. Pubtester has a great technical team of professionals, all of whom have more than 10 years experience in packaging testing industry, which provide our customers with comprehensive technical services and solutions all the time.
