• Model NO.：KMH-36l
• Custom Made：Available
• Humidity Range：30~98%R.H
• Quality：Assurance
• Factory Visit：Welcome
• Other Model：Yes
• Volume：36L
• Temperature Change Speed：10°c ,Min
• Temp Range：-60~50c
• Transport Package：Plywood Case
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan China
• HS Code：90321000
• Production Capacity：1000 PCS,Year.

Environmental Temperature and Humidity ChamberSecifications ( at +20ºC room temp.  Or+25ºC water temp   with empty load)ModelKMH-R   seriesKMH-L   seriesKMH-S  series36R36L36STemp. range-20ºC~150ºC-40   ºC~+150ºC-60ºC~+150ºCInterior sizelW(mm)300300300H(mm)400400400D(mm)300300300Exterior sizeW(mm)460460460H(mm)780780780D(mm)102010201020Power(KW)4.54.54.5Weight(KG)150150150Humidity uniformity±3.0%R.H±3.0%R.H±3.0%R.HHeat up time-20ºC~+100ºC,within   35 min-40ºC~+100ºC,   within 45 min-60ºC~+100ºC,within85   minPull down time+20ºC~-20ºC,   within 45 min+20ºC~-40ºC   , within 60 min+20ºC~-60ºC,within   80 minStandard accessoriesSight   window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1,   power cable *2mSafety device  (standard)No   fuse breaker, over pressureover heat and over current protection for   compressor,Over temp. protect, over load protect of   blower, dry heat protectionControl SystemBalanced   Temperature & Humidity Control SystemRefrigeration systemAir   CooledHermetic compressor,Single stage refrigeration   systemCFC-Free refrigerant(HFC-507/HFC-23)ControllerPanel:7-inch   LCD Touch panel,    Chinese or English display selectableOperation model :Program or fix point runningMemory capacity :120programs,1200steps,All repeat 999 cycles, part repeat 99 cyclesHumidity Range20~98%R.HTemp. constancy±0.5ºCHumidity constancy±2.5%R.HTemp. uniformity±2.0ºCInterior materialStainless   Steel Plate(SUS 304)Exterior materialBaked   Painting Steel Or Stainless steel(SUS304)Insulation materialRigid   polyurethane Foam and Glass Fiber WoolAmbient Temp.+5ºC~+35ºCWiring methodAC   380±10%50Hz ,3 phase 4 wires +Ground WiresNote: 1. We reserve the right to change specifications without   prior notice      2. Customized sizes and configurations available

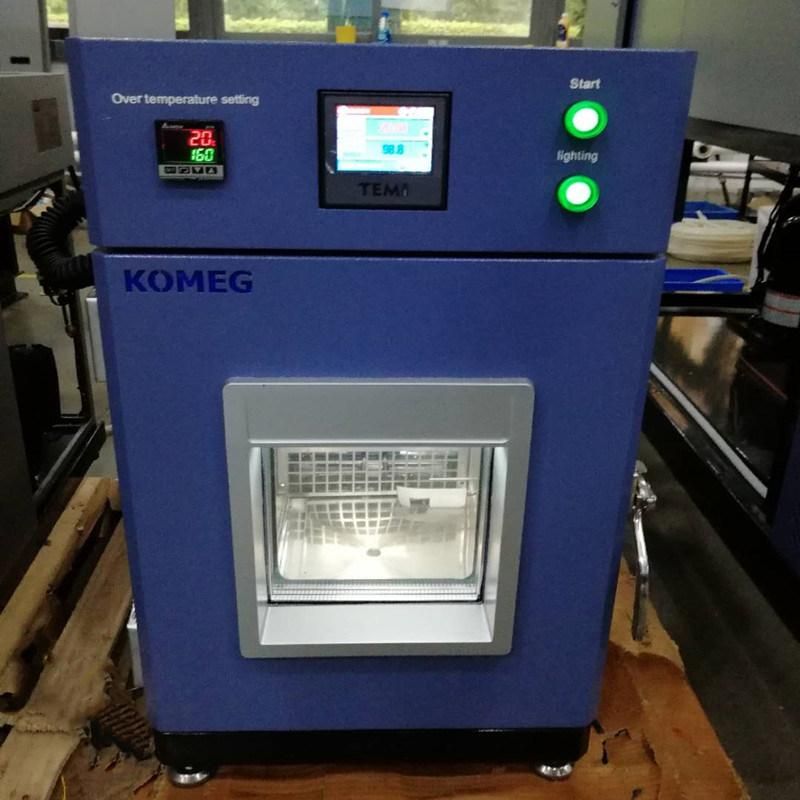

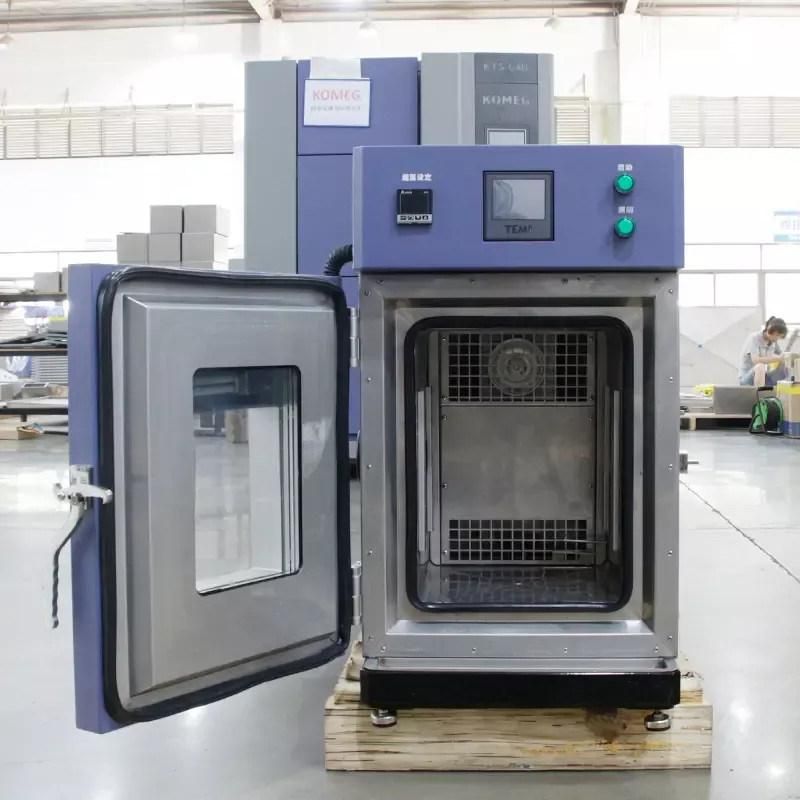

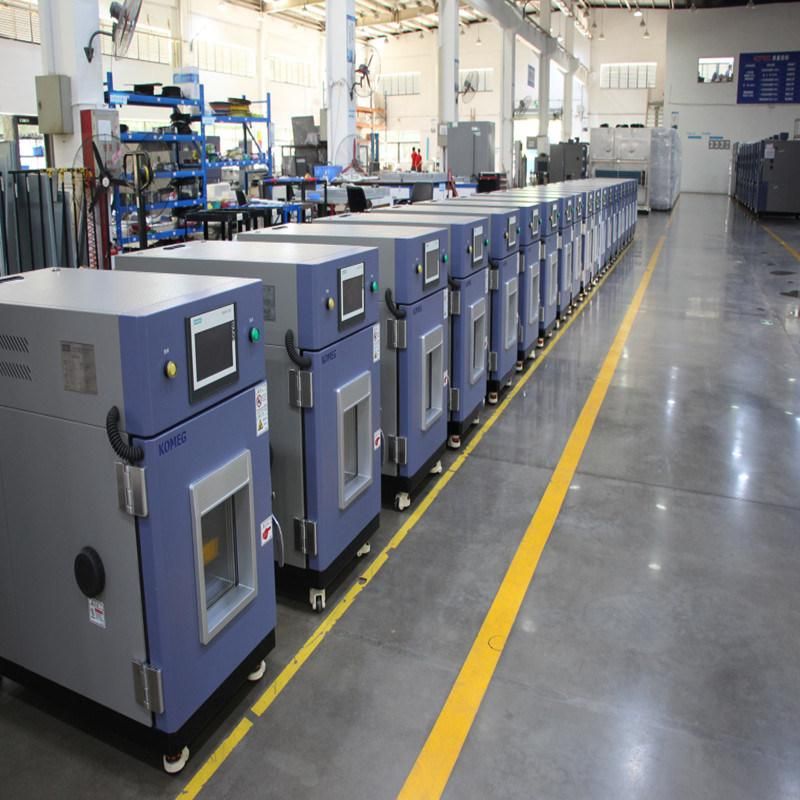

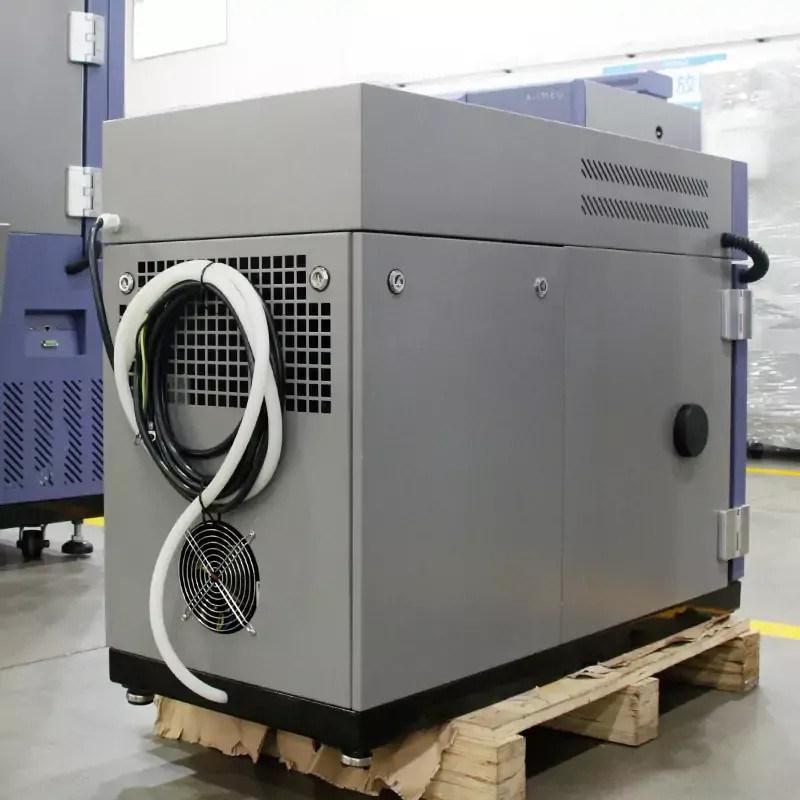

Photos show
