• Model NO.：PHZY-1.6,5,16
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Length：800 mm
• Width：700 mm
• Height：1400 mm
• Gross Weight：200 Kg
• Transport Package：Packed in Fumigated
• Specification：CE SGS ISO9001: 2008
• Trademark：Jp
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. PHZY-1.6/5/16 Control Computer Control Weight 100-500Kg Power Source AC220V Length 800 mm Width 700 mm Height 1400 mm Gross Weight 200 Kg Transport Package Packed in Fumigated Specification CE SGS ISO9001: 2008 Trademark Jp Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets Per Month

Product Description

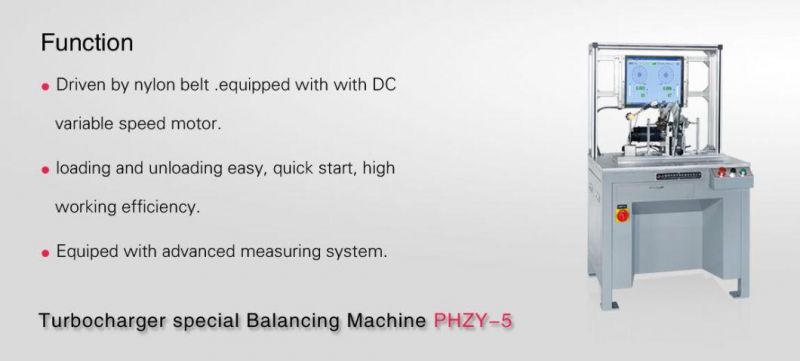

Gas Supercharger Auto-positioning Balancing Machine






Production Description:

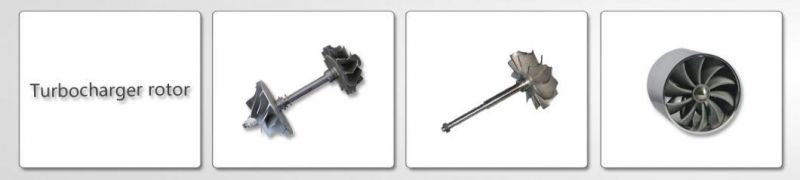

1 Widely used in balancing turbocharger, turbocharger impellers,turbocharger compressors ,turbocharger turbines etc .

2 Auto-positioning  bed,17#LCD screen,large tool carriage structure3 Dedicated bracket,driven by Nylon belt ,variable speed motor 230W



Range of Application:



This balancing machine is widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by Nylon belt , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency .

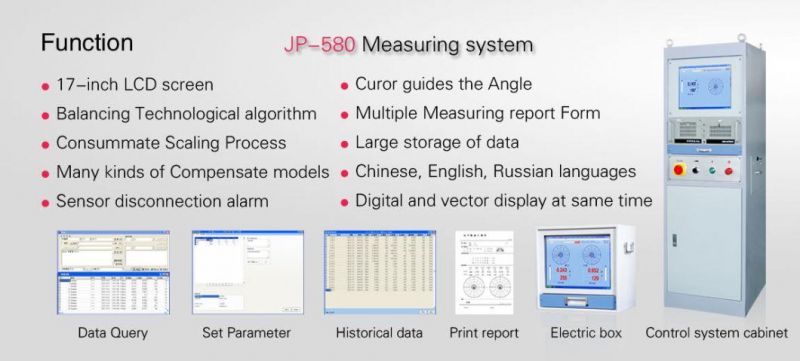

Electrical Measuring System (Option):



The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.




Technical data at a glance	PHZY-1.6/5/16
Maximum weight of workpiece(kg)	1.6/5/16
Maximum diameter of workpiece(mm)	300
The distance between two bearing pedestals (mm)	25-480
Journal diameter on roller carriages(mm)	3-40
Belt driving diameter(mm)	15-150
Rotation speed when the diameter of operating transmission is 100mm(r/min)	~1470
Motor power (kw)	0.23DC
Minimum achievable residual unbalance (emar)	<=0.3g.mm/kg

After Sale Service:

Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement

Warranty period:

Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.

About Us

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. Is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical-electro-mechanical Integration,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
