• Model NO.：KM-F-160A,C
• Heater Power：15kw+1kw
• Air Compressor：2HP
• Volume：800
• Max. Temp：35oc or 50oc
• Powr：AC120V 50Hz
• Custom Made：Yes
• Trade Agency：Welcome
• Transport Package：Strong Plywood Case for Long Journey Delivery
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Yesr

ModelKM-60CKM-90CKM-120CKM-160CKM-200CInner size (cm)60x45x4090x60x50120x100x50160x100x50200x100x60External size(cm)107x60x118141x88x128190x110x140230x130x140270x150x150Inside tempBrine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method(CASS)50°C±1°CBrine temp35°C±1°C 50°C±1°CTest chamber volume108L270L600L800L1200LBrine chamber volume15L25L40L40L40LCompressed air pressure1.00±0.01kgf/cm2Spray volume1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)PH6.5~7.2 3.0~3.2PowerAC220V1Φ10AAC220V1Φ15AAC220V1Φ20AAC220V1Φ20AAC220V1Φ30A
Photos Show

Details and Specifications

1, Use Hard PVC, anti-corrosion.
2, PID control.
3, Spray time adjustable.
4, Fine glass nozzle
5, Need 2HP air compressor (Not included).

Product Description

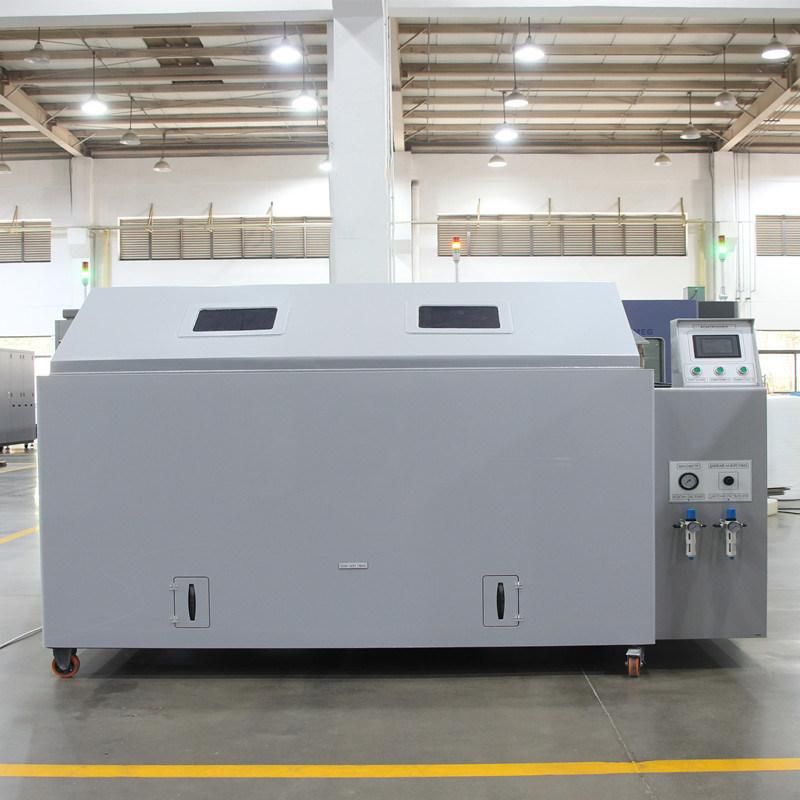

Salt spray corrosion test chamber (Salt spray test chamber, salt box, salt spray test machine, salt spray corrosion test chamber) can be used to assessing the ability of salt spray corrosion resistant materials. It can be used to assessment materials and their resistance to salt spray corrosion protection layer capacity, whether you are testing hardware industry, screw industry, electroplate industry, automotive and motorcycle parts, communication industry, computer industry, electronic industry, coating industry, research institution, etc, our salt spray test chamber can give you a best solution.


Control system:

Smart high precision digital PID control microcomputer control instruments, error of ± 0.1 ° C, thin film KEY BOARD buttons,digital and direct display, temperature control, power output by the microcomputer algorithm to achieve high precision and high efficiency power efficiency. Our salt spray test chamber are equipped with water shortage warning system, all heaters are over-temperature protection with electronic and mechanical devices. Multiple system protection, the use of safe and reliable.

Characteristics

1, Interior and exterior use hard PVC, anti-corrosion, anti-aging with smooth and beautiful surface

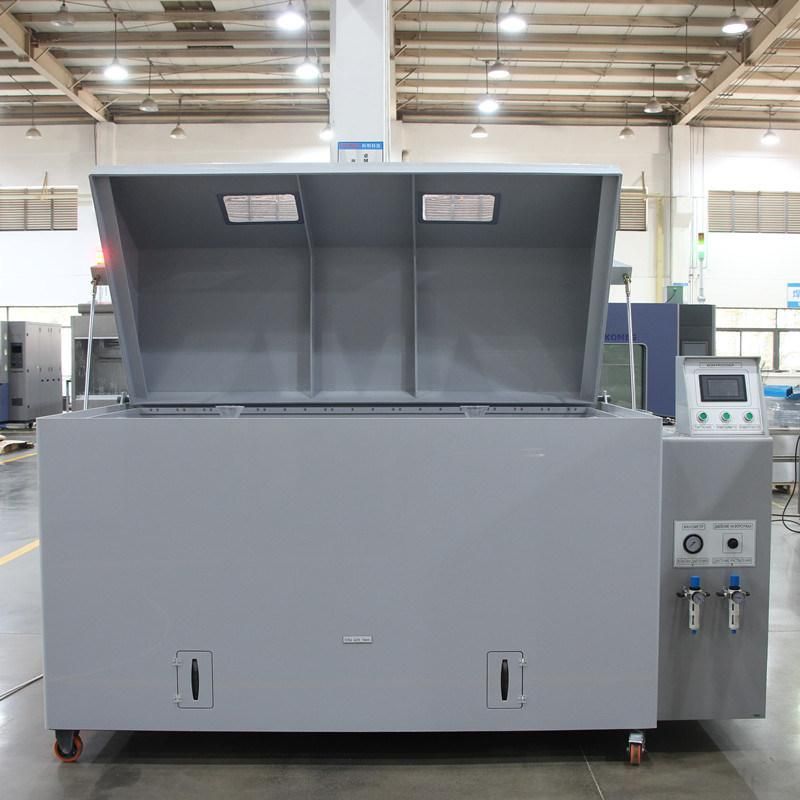

2, Cover use hard transparent PMM or hard PVC, can view specimen status anytime

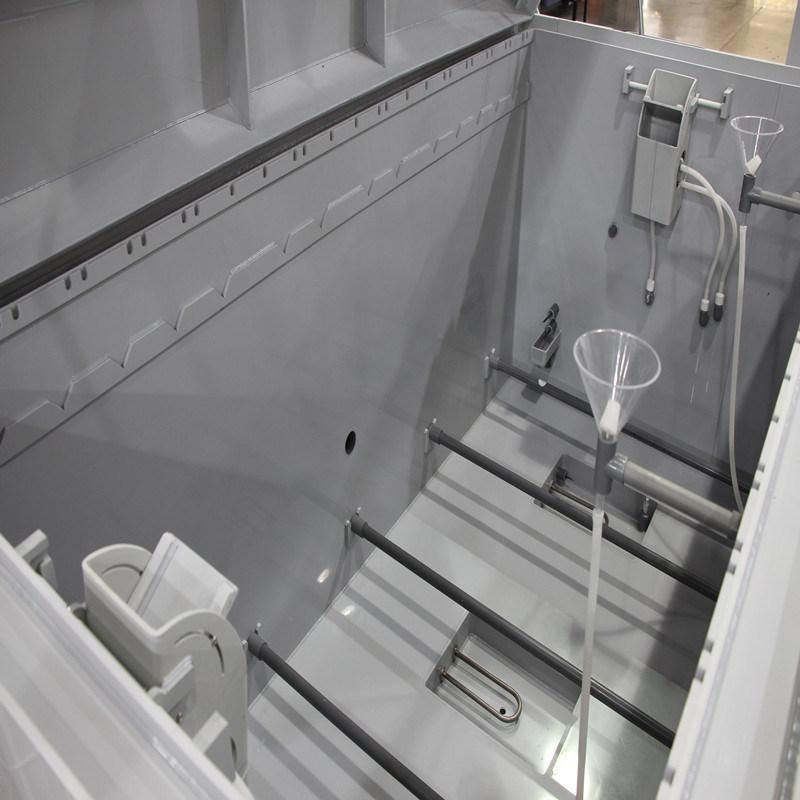

3, Fine glass nozzle ensures uniform diffusion of spray and not being blocked by crystal, which further maintain standard and quality of continuous test.
4, Spray time is adjustable
5, High precision temperature controller with digital display introducing P.I.D. automatic tuning control.
6, Double over heating protection and low water level alarm ensures operation safety.
7, Demist function: water sealed chamber cover
8.Comply with international standard like ISO 9227, ASTM B117, CNS, JIS, DIN, GB, BS, IEC, MIL, etc.
Application

Corrosion resistance test for products after treated by plating, anodized, spraying, and anti-rust.

Why Choose KOMEG ?
High temperature resistant material imported from Germany to ensure long-term use
Complete system for water level and water temperature protection to ensure safe use

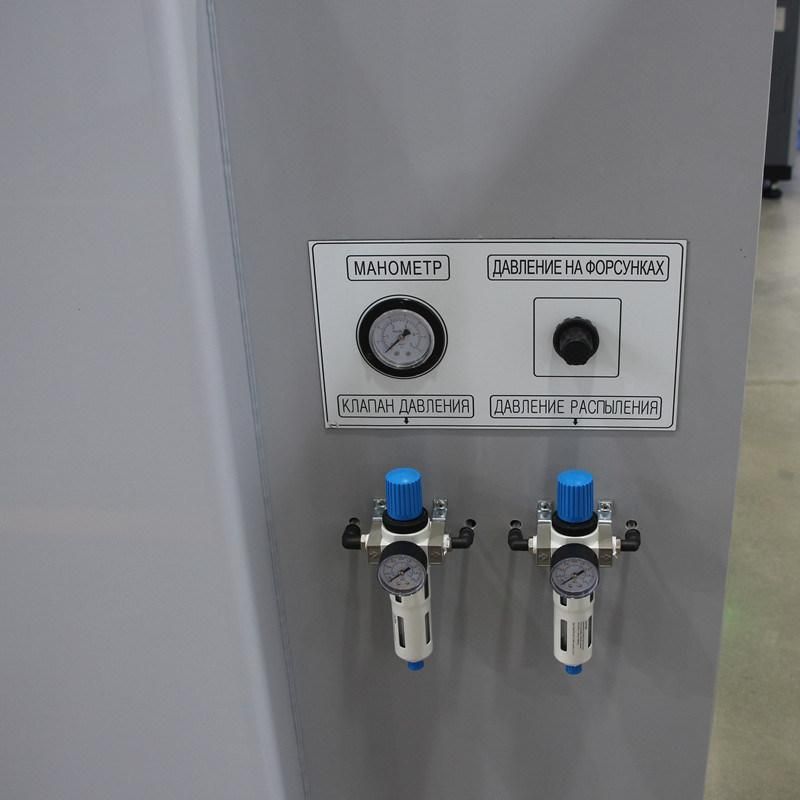

Nozzle spray pressure, work room temperature and working time adjustable, easy operation
Accurate glass nozzle to assure evenly spread and no crystallization block.



Standards implemented and met
1 GB/T 2423.17-1993 salt spray test
2 GB/T 2423.18-2000 salt spray test
3 GB/T 10125-1997 salt spray test
4 ASTM.B117-97 salt spray test
5 JIS H8502 salt spray test
6 IEC68-2-11 salt spray test
7 IEC68-2-52 1996 salt spray test
8 GB.10587-89 salt spray test
9 CNS.4158 salt spray test
10 CNS.4159 CASS Copper accelerated acid salt spray test
11 GB/T 12967.3-91 CASS Copper accelerated acid salt spray test
