• Model NO.：BE-8202-SERIES
• Object Holder Moving Speed：6000mm,Min (Adjustable)
• Refractory Rack Moving Speed：6000mm,Min (Adjustabl
• Control System：PLC Touch Screen Close Control + Computer Remote C
• Ignition Mode：Automatic High Pressure Pack Ignition
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：W1500 X D2500 X H800mm
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：9030899090
• Production Capacity：100set ,Month

External Fire Exposure Test MachineModelBE-8202-2500BE-8202-3000Test SpaceW1500 X D2500 X H800mmW2000 X D3000 X H1000mmEquipment DimensionW7500 X D3700 X H960mmW8500 X D4200 X H960mmMovable RackW1500 X D3000 mmW2200 X D3200 mmMax. Load1000KG (2000KG,3000KG can be customized)Object Holder Moving Speed6000mm/min (Adjustable)Refractory Rack Moving Speed6000mm/min (Adjustable)Control SystemPLC touch screen close control + computer remote controlIgnition ModeAutomatic high pressure pack ignitionDistance Between Burning Plate and gasolineThe distance between the gasoline and the test object can be adjusted within the range of 450cm~550mm. The defaulted 500mm; the bottom of the gasoline plate is filled with water.Refractory Brick SizeIn accordance with the standard of ECER100, Refractory Brick Size 240mm*120mm*70mm.Gasoline Plate Size3 gasoline plates-can be changed easily according to the test object size. the height of gasoline plate is no more than 80cm from the gasoline levelPower SupplyAC 380V,7.0KWAC 380V,8.0KWWeightApprox 3.5 TonsApprox 4.0 TonsOther requirementsThe ignition area of gasoline plate can be adjusted according to requirements.

Automatic gasoline filling.

Remote control.

Electrical ignition according to test requirements.

The video monitoring system, lighting system.

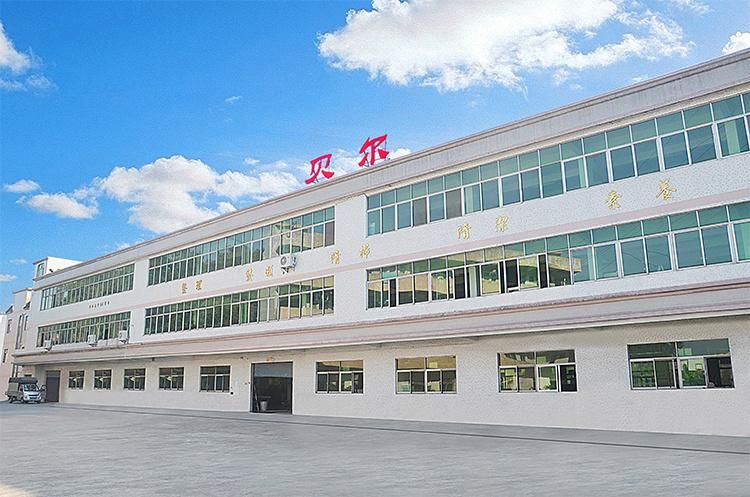

  Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.


FAQ
Q1 : Can you customize the product?
   A:  Yes, we can customize any products according to requirements. Hot selling lab electronic
         temperature humidity cabinet/Environmental climate test chamber/Car Battery Safety Test Chamber also can be                         customized.

Q2 : How to choose the most suitable products?
   A:  Our professional team will give you the best suggestion, just be patiently to tell us the information
        about the parameters you require.

Q3 : Can you arrange installations and commissioning in our lab?
   A:  Firstly, for standard chamber we had 3-5 days commissioning before shipping,
         you just need link power in your lab, then you can start to operate.

        Secondly, we had detailed operation manual with chamber , any problems you can find and solve in it.
        Thirdly, some customized chambers we should install and teach your team to operate .
