Electrodynamic Vibration Mechanical Shaker High Frequency Vibration Tester Xyz Axis Vibration Test
Ai Si Li (China) Test Equipment Co., Limited- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Vibration Testing Machine
- Maxcapacity：10kn
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：ES-10
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Max. Speed：1.8m,S
- Input：1 Channel
- Sweep-Frequency Mode：Linear, Logarithmic, Sweep Back
- Application：Plastic Products
- Vibration Direction：Three Axis
- Moving Coil：14kg
- Transport Package：Standard Export Polywood Case
- Specification：10KN
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：90312000
- Production Capacity：50 Sets,Month
Description
Electrodynamic High Frequency Vibration Test Machine
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s2) Rated Speed(m/s) Rated displacement (p-p)mm Max. Loading (Kg) moving coil (Kg) Dimension of Moving coil (mm) ES-6 6000 6000
3-3500 1000 1.6 25 180 6.5 Φ230 ES-6a 6000 6000
3-3500 1000 1.6 51 250 12 Φ230 ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240 ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320 ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450 ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450 ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450 ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450 ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

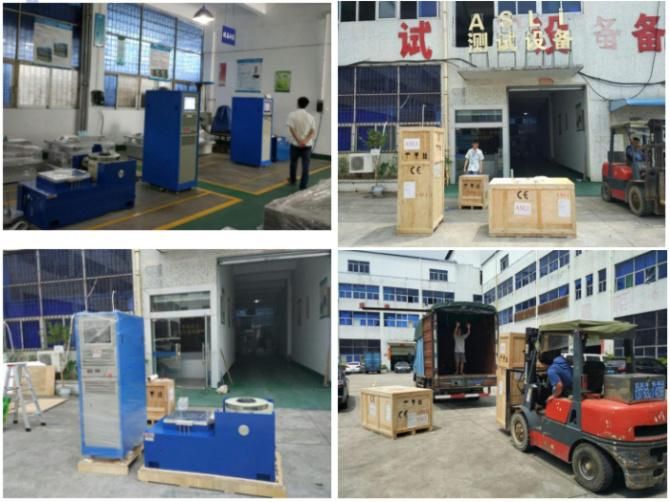

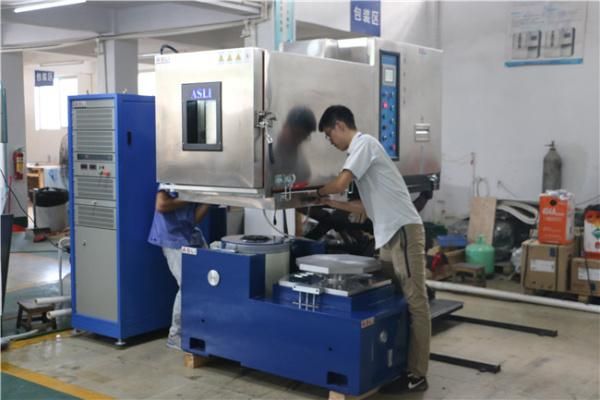

Detailed Images
Our CompanyASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement and Testing Center and South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.
Our Service1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 months.
Specifications
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

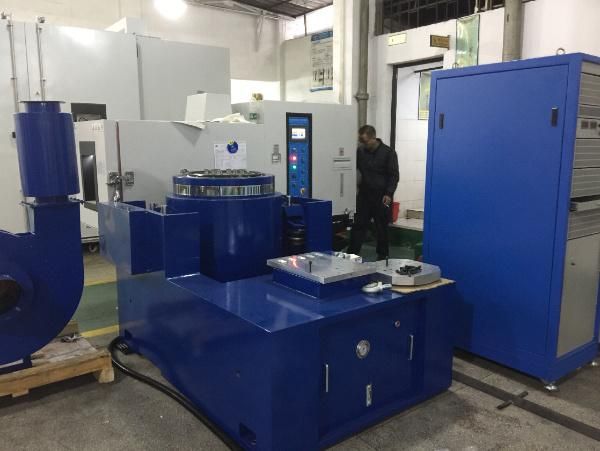

Detailed Images
Our CompanyASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement and Testing Center and South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.
Our Service1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 months.
