ASTM D1434 Gas Transmission Rate Tester Customization Available for Explosive Gas
Pubtester Instruments Co., Ltd.- Warranty：12 Months
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Test Range：0.05~50,000 Cm3,M2
Base Info
- Model NO.：GTR-G1
- Number of Specimens：3
- Vacuum Resolution：0.1 PA
- Test Gas：O2, N2 and CO2 (Outside of Supply
- Trademark：Pubtester
- Origin：China
Description
Extended ApplicationPetrochemical Including transportation pipelines, such as MDPE plastic CO2 testing Various Gases Test the permeability of various types of gases, e.g. O2, CO2, N2, Air and He Inflammable, Explosive Gases Test the permeability of inflammable and explosive gases Biodegradable Films Test gas permeability of various sorts of biodegradable films, e.g. starch-based biodegradable bags Materials for Aerospace Usage Test the Helium permeability of airship gas bags Paper and Paper Board Test gas permeability of paper and paper-plastic composite materials, e.g. aluminized paper for cigarette packages, Tetra Pak sheeting, paper bowls for instant noodles and disposable paper cups Paint Films Test gas permeability of substrates coated paint films Glass Fiber Cloth and Paper Including glass fiber cloth and paper materials, e.g. Teflon paint cloth, Teflon welding cloth and Teflon silicon rubber cloth Soft Tube Materials for Cosmetics Including various types of cosmetic tubes, aluminum-plastic tubes and toothpaste tubes Rubber Sheeting Including various sorts of rubber sheeting, e.g. car tires Vacuum Packaging Including vacuum packaging manufacturing sheets that are easily susceptible to gas oxidation and corrosion, such as electronic products, such as consumable sensors, etc.
Technical Specifications
Standards
ASTM D1434, GB/T 1038, YBB 00082003, ISO 2556, ISO 15105-1, JIS K7126-A
Configuration
Standard configuration: Instrument, vacuum pump, vacuum pipe, gas tube, pressure regulator, sampler, vacuum grease, reference film, temperature controlling device.
Optional configuration: Computer, container testing fixture, sampler blades, vacuum grease, filter paper, humidity generator.
Note: Customer need to prepare testing gas.
ABOUT US

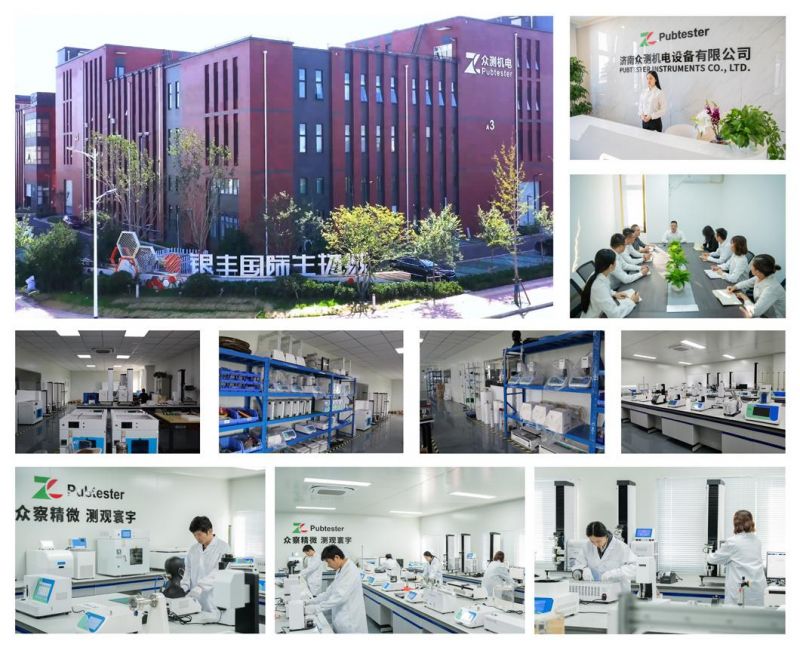

Established in Jinan, China, Pubtester Instruments Co., Ltd has developed into a major manufacturer and supplier of flexible packaging testing instruments in China. In the year of 2020, Pubtester launched a series of testing instruments specilized in medical device (medical dressings, syringes, catheters, gloves and aseptic packaging, etc), which meet the increasing testing demand for medical industry since 2019. Pubtester has its own packaging testing center, equipped with more than 80 sets of testing instruments, which can perform barrier, force and strength, heat sealing, hot tack, coefficient of friction, thickness, tearing, impact, heat resistance, leakage, flex durability , adhesion, color, fastness and other testing items, and provide testing services to customers. By 2021, Pubtester instruments have been exported to more than 40 countries and areas including UK, Germany, Portugal, Spain, Turkey, Greece, Ukraine, UAE, Saudi Arabia, Tunisia, Nigeria, Morocco, Kenya, Thailand, Malaysia, India, Indonesia, Vietnam, Columibia, Mexico, etc. Pubtester has a great technical team of professionals, all of whom have more than 10 years experience in packaging testing industry, which provide our customers with comprehensive technical services and solutions all the time.
Technical Specifications
| Specifications | GTR-G1 |
| Test Range | 0.05~50,000 cm3/m2·24h·0.1MPa |
| Resolution | 0.01m3/m2·24h·0.1MPa |
| Number of Specimens | 1 |
| Number of Sensors | 1 |
| Test Mode | Single chamber |
| Vacuum Resolution | 0.1 Pa |
| Vacuum Degree of Test Chamber | <20 Pa |
| Test Temperature | 5°C~95°C ±0.1°C (dry gas at standard atmospheric pressure) standard atmospheric pressure)standard atmospheric pressure) |
| Temperature Accuracy | ±0.1ºC |
| Air Pressure | 0.1 MPa~0.8 MPa |
| Test Gas | O2, N2 and CO2 (outside of supply scope) |
| Carrier Gas Interface | Ф6 |
| Vacuum Pipe Diameter | 1/4" |
| Correction Method | Standard film calibration, external calibration of vacuum sensor |
| Specimen Thickness | ≤3mm |
| Specimen Size | Φ97 mm |
| Instrument Dimension | 740 mm (L) x 415 mm (W) x 430 mm (H) |
| Power Supply | AC 220V 50Hz |
| Net Weight | 50 kg |
Standards
ASTM D1434, GB/T 1038, YBB 00082003, ISO 2556, ISO 15105-1, JIS K7126-A
Configuration
Standard configuration: Instrument, vacuum pump, vacuum pipe, gas tube, pressure regulator, sampler, vacuum grease, reference film, temperature controlling device.
Optional configuration: Computer, container testing fixture, sampler blades, vacuum grease, filter paper, humidity generator.
Note: Customer need to prepare testing gas.
