• Model NO.：GD-0624
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-0624 HS Code 9031809090 Production Capacity 100sets/Month

Product Description

GD-0624 Asphalt Bituminous Mixture Toughness and Tenacity Tester for Asphalt Materials

Introduction:

The Asphalt Mixture Toughness and Tenacity Tester is designed and made as per T0624-2011 and ASTM D5081 "Test of Asphalt Tenacity" in the Industry Standard of People's Republic of China JTG E20-2011 " Highway Engineering Bitumen and Bituminous Mixtures Test Code" .
The Bituminous Mixture Toughness and Tenacity Tester is also used to design as per Petrochemical Industry Standard SH/T 0735-2003"Test Method for Asphalt Tenacity ". It is suitable to determine the tenacity under specified conditions and evaluate the effect of asphalt adding modification agent .

Characteristics:

1.The Bituminous Mixture Toughness and Tenacity Tester adopts the requirements of traffic industry and chemical industry .It can choose 300mm or 610mm stretch elongation .The tensile testing machine adopts double wire rod design.Stable and reliable operation , it also has high measuring precision .

2.The test software that we designed can draw load changing curve ,calculate the tenacity and toughness automatically and print test report .

3.The Bituminous Mixture Toughness and Tenacity Tester test and test results calculation can be finished by the computer.It is convenient to use .

4.The design of the control panel is simple ,it can be easy to operate and finish the determination by the uplink key ,down key and the stop key.The test results calculation can be finished by the computer automatically .

5.It is equipped with A4 printer,so it can automatically draw and print out load-deformation curve ,and tenacity of asphalt .

6.The Bituminous Mixture Toughness and Tenacity Tester adopts advanced design ,making fastidious ,beautiful appearance and simple operation.It also has noble character for high grade instrument.It is ideal choice of relevant construction ,supervision,scientific research institutes and colleges.

The best characteristic :it can operate and control the whole procedure by computer.And it can realize the test automatically for the tenacity of asphalt.

Specifications:

1. Drag speed: (500mm+10mm)/min;

2. Max drag force: 1000N;

3. Dragging force un-linear error: <0.5%;

4. Dragging force sampling interval: 0.5mm;

5. Max dragging length: 610mm;

6. Power supply: AC220V+10%,50Hz;

7. Maximum power consumption: ≤500W;

8. Dimension: 520mm*400mm*1220mm

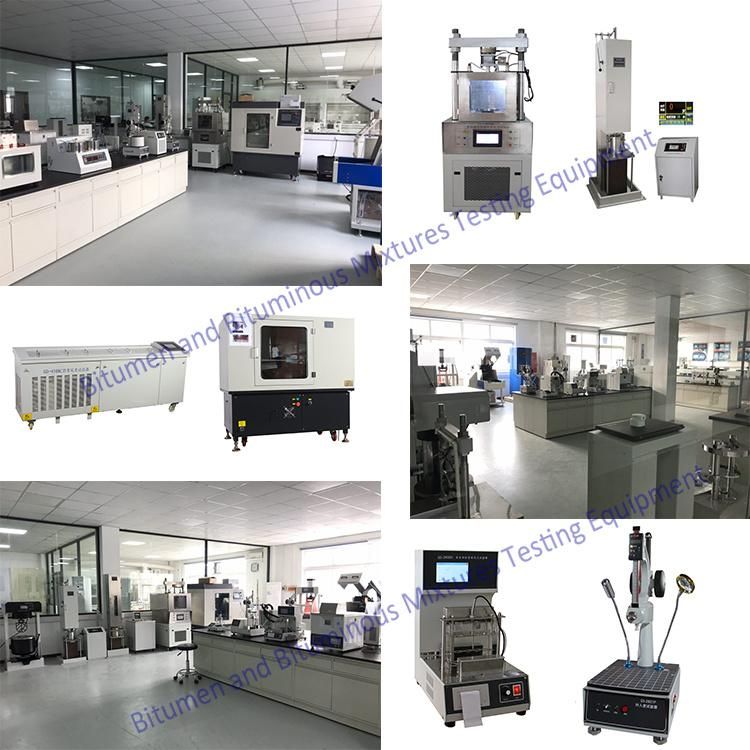

All Bitumen and Bituminous Mixture Testing Equipment are available here!
