• Model NO.：HD-R811-1
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Temperature Measurement Range：Room Temperature-200 ºC
• Temperature Measurement Accuracy：100~200 ºC,≤ ± 0.3 ºC
• Equipment Weight：Approx. 250kg
• Dimensions：540 mm× 560 mm× 1120mm
• Standard：Astmd5289-95, ISO6502-1999 (E)
• Transport Package：Strong Plywood Case
• Specification：ASTM, ISO, GB standard
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-R811-1 Control Computer Control Weight 500-1000Kg Power Source AC220V Temperature Measurement Range Room Temperature-200 ºC Temperature Measurement Accuracy 100~200 ºC,≤ ± 0.3 ºC Equipment Weight Approx. 250kg Dimensions 540 mm× 560 mm× 1120mm Standard Astmd5289-95, ISO6502-1999 (E) Transport Package Strong Plywood Case Specification ASTM, ISO, GB standard Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

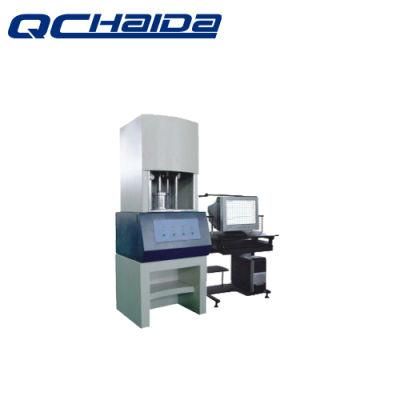

New Technology Rubber Viscosity Measuring Rheometer for Lab Testing Use

Product Introduction:
The Rotorless vulcanizer is the most widely used instrument in rubber processing industry to control the quality of rubber materials, fast test and rubber basic research. It provides accurate data for the optimal formula combination of rubber, and can accurately measure the scorch time, positive vulcanization time, vulcanization index, maximum and minimum torque and other parameters.

The vulcanizer consists of a host, a computer, a temperature measuring device, a temperature control device, a data acquisition and processing device, a sensor and an electrical interlock device. The temperature measurement and control circuit is composed of measurement and control module, platinum resistance and heater, which can automatically track the changes of grid and environment temperature, automatically correct PID parameters, and achieve the purpose of rapid and accurate temperature control.

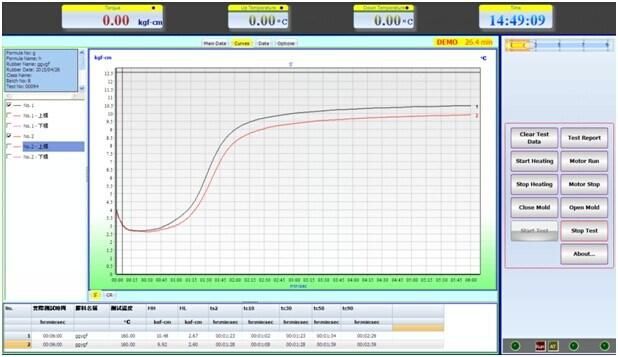

The data acquisition system and electromechanical interlock can automatically detect the moment signal of rubber vulcanization process, and automatically display the temperature value and set value in real time. After vulcanization, it can automatically process, calculate and print vulcanization curve and process parameters. Display curing time and moment. The computer shows the vulcanization process in real time, from which the change of "temperature" and "time torque" can be seen at a glance.

Product Features:
1. High temperature control precision and wide range. (± 0.3 ºC)
2. Clock programming function. (Setting and modification time)
3. Advanced technology switching power supply, wide voltage range.
4. Imported integrated circuits and control components.
5. All Chinese and English display.
6. Comply with the requirements of GB / T16584 (Testing the vulcanization characteristics of rubber with a rotorless vulcanizer) and ISO6502.

Standard Parameters:

Item	Parameter
Equipment alias	Sulphurometer,Rotorless Sulphur Transformer
Executive standard	ASTMD5289-95 ISO6502-1999 (E) GB / T16584-1996
Temperature measurement range	Room temperature-200 ºC
Temperature measurement accuracy	100~200 ºC,≤ ± 0.3 ºC
Temperature stability	100~200 ºC,≤ ± 0.3 ºC
Setting range	0--200 ºC; setting minimum unit:0.1 ºC
Temperature display range	0--200 ºC; display resolution:0.1 ºC
Setting time range	0-200 minutes; setting minimum unit:1 minute
Automatic range switching	automatically increase according to actual torque
Power supply	50HZ, ~ 220V ± 10%, 50 ± 1Hz, must be well grounded
Compressed air	0.4Mpa (4KG) controlled by pneumatic regulating valve
Swing frequency	100 times / minute (about 1.7HZ)
Ambient temperature	normal temperature -40 ºC, relative humidity less than 80%, no corrosive gas in the air
Quality	Approx.  250kg
Power	600W
Dimensions	540 mm × 560 mm× 1120 mm
