• Model NO.：HJ-85
• Weight：0-100Kg
• Power Source：AC220V
• Controller：Full Computer Operation
• Maximum Force：Optional Within 100kn
• Use Itinerary：900mm
• Double Column Width：425mm
• Speed：0.01~500mm,Min
• Force Display Accuracy：0.001kg
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-85 Weight 0-100Kg Power Source AC220V Controller Full Computer Operation Maximum Force Optional Within 100kn Use Itinerary 900mm Double Column Width 425mm Speed 0.01~500mm/Min Force Display Accuracy 0.001kg Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Applications
A. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
B. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
C. Deformation under defined load: Test deformation under defined load of tested sample
D. Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

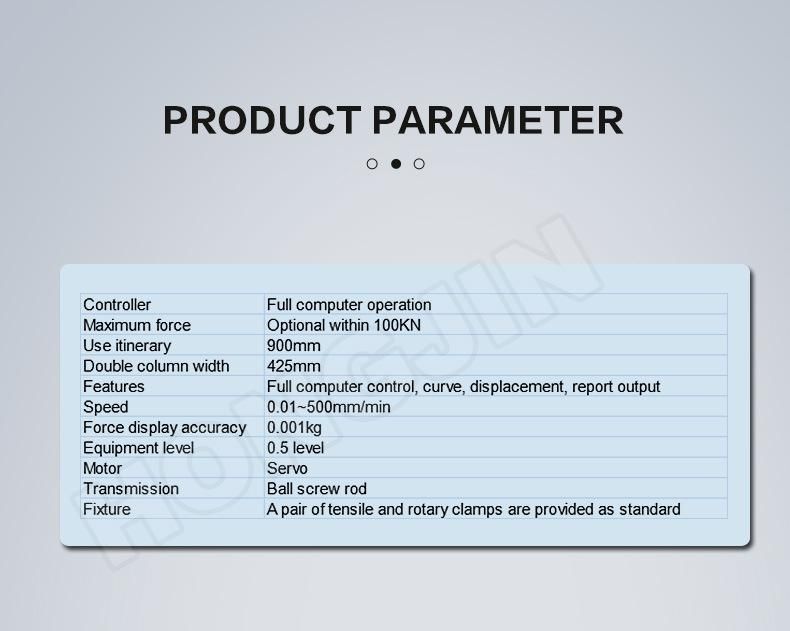

Controller	Full computer operation
Maximum force	Optional within 100KN
Use itinerary	900mm
Double column width	425mm
Features	Full computer control, curve, displacement, report output
Speed	0.01~500mm/min
Force display accuracy	0.001kg
Equipment level	0.5 level
Motor	Servo
Transmission	Ball screw rod

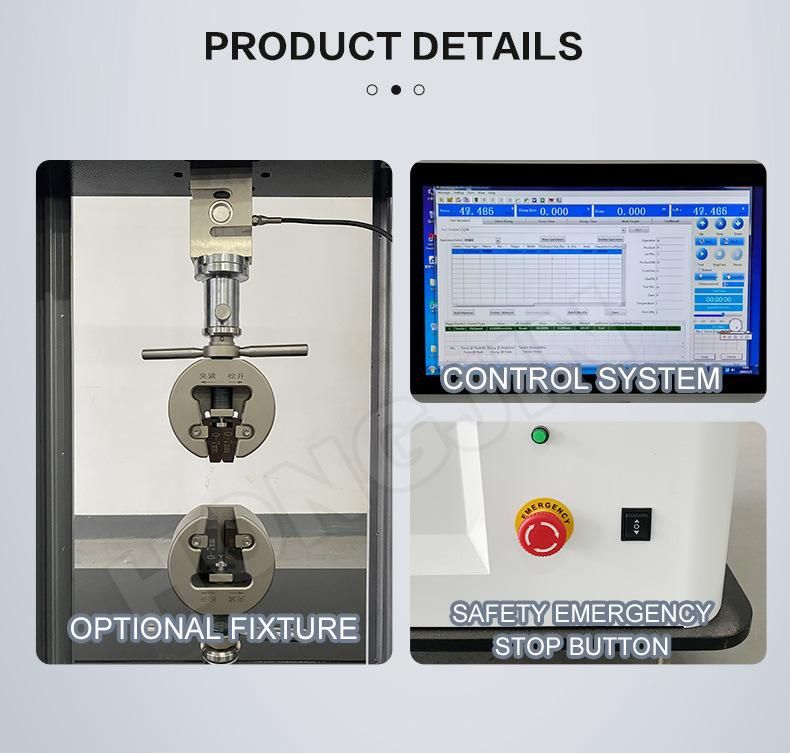

Fixture	A pair of tensile and rotary clamps are provided as standard

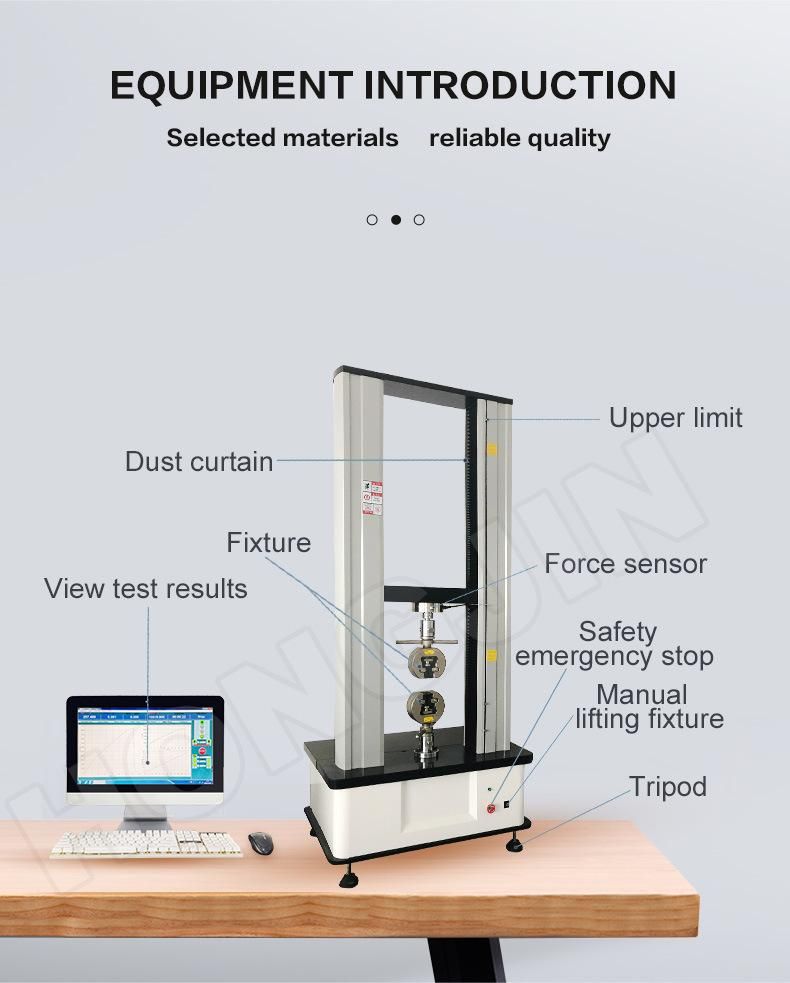

Main features:

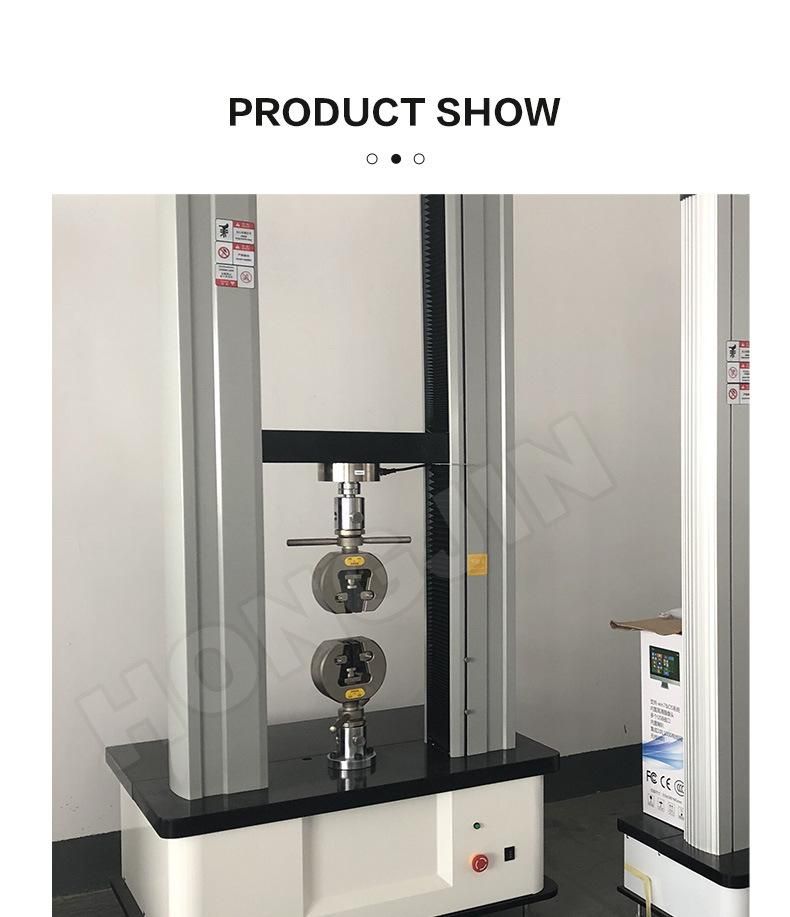

1. Adopt  Panasonic servo motor,the beam moves up and down to test the load through the transmission.
2. The whole control system is safe and high reliability.
3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation,testing speed and testing curves.
4. Microcomputer for data processing and  analysis, testing results can be saved automatically, testing curves can be transferred out after the test, you can know the testing process through the testing curves, or compare with others curves, or amplify the curves.
5. The testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and other safe protective functions.

Test function:
1. The use of mulch-threaded parallel processing technology, the testing process is displayed at the same time force - displacement, force - time, displacement - time, stress - strain curve, you can easily switch to the curve of the screen to see, and can view the user settings, etc.
2. The flexible and powerful way to customize the test method, with constant speed, position shift, given the strength, will power rates, given stress, stress rate constant, constant strain, strain rate and other fixed control mode, enabling complex multi-step nested loop control. It can be set to automatic return, automatic judgment fracture, auto-zero function
3. Standardized test process control and report output templates so that you can define as many test standard for users to call, covering GB, ASTM, DIN, JIS, BS ... almost all test criteria
4. Combining different fixtures and accessories, do all kinds of products and materials most strongly, breaking strength, peel strength, tensile strength, shear strength, tear strength, maximum deformation, yield strength, elongation, modulus of elasticity, ring stiffness, non-proportional elongation, interval minimum force, interval average power, power take constant elongation, elongation given power to take as many as more than 400 pilot projects

Standard:
Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.

Technical characteristics:
1. Imported motor, low noise and precise control
2. Computer LCD display, Chinese menu, HP printer
3. During the test, the tensile time and the maximum test force are displayed in real time; and can be displayed.
4. The accuracy can reach 0.001N and the resolution is 0.001N. It is professional for the measurement of the corresponding parameters of waterproof materials.
5. High degree of automation, the instrument design uses advanced domestic and foreign devices, single chip microcomputer for information sensing, with automatic reset, data memory, overload protection
6. Get measurement results directly: After completing a set of tests, you can easily directly display the measurement results and print statistical reports, including averages, standard deviations and coefficients of variation
7. Optional with standard serial RS232 interface, which can provide data communication for the upper computer comprehensive report system
8. Multi-function, flexible configuration: the instrument is mainly used for measurement of metal and non-metal materials, changing the configuration of the instrument can be widely applicable to the measurement of other materials



The Introduction Of Hongjin
Hongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience.

Hongjin's services:
If you encounter any problems during future testing, we promise we will reply you within 48 hours and provide a solution within 3 working days. We can provide operation video and English operation manual. We can provide video conferencing.
1. Pre-sales service
    --24-hour online service for your consultation.
    -- Help with choosing the right model, and a range of services, people, advice.
   --Provide laboratory planning and pre-sales technical guidance.
2. Intermediate service
    -- give you the best offer
    --Provide discounts on multiple sets of orders
    -- Do the customer's request:
    --Choose a payment term that is convenient for you.
    --Prompt production and delivery, keep you informed.
    -- Invoice value can be provided according to your needs to reduce tax.
3. After-sale service
   --1 year warranty service and lifetime maintenance.
   --Technical engineers can provide 24-hour after-sales guidance.
   --Replacement of some parts
   --Remote control technical consultation
   --Machine lifetime maintenance service
4. Commitment:
We will sign a letter of commitment at the same time as signing the contract, which will increase your confidence in us.
5. Good packaging:
Simulation animation customers cover with bubble film before putting them into wooden boxes, which not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof and corrosion-proof, and good transparency.
