• Model NO.：HJ-68
• Minimum Resolution：0.001GF
• Z-Axis Measurement Stroke：120mm
• Z-Axis Display Stroke：0.001mm
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-68 Minimum Resolution 0.001GF Z-Axis Measurement Stroke 120mm Z-Axis Display Stroke 0.001mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Scope of application

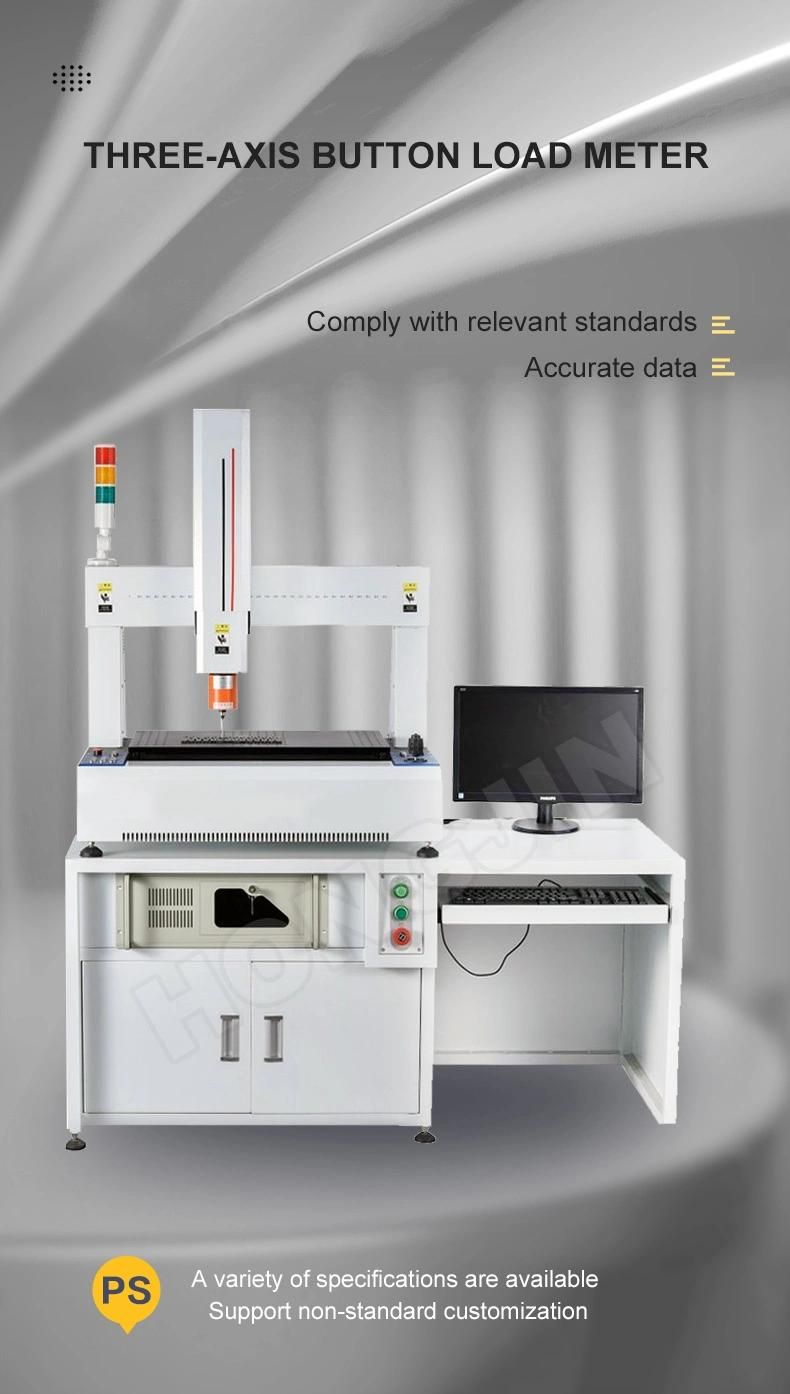

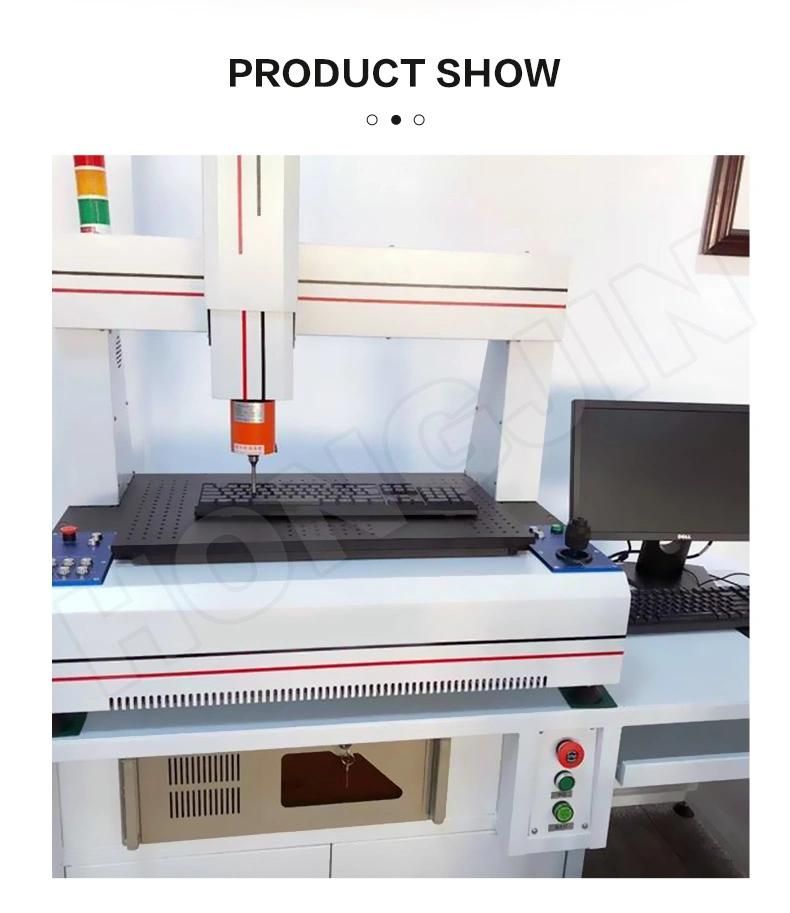

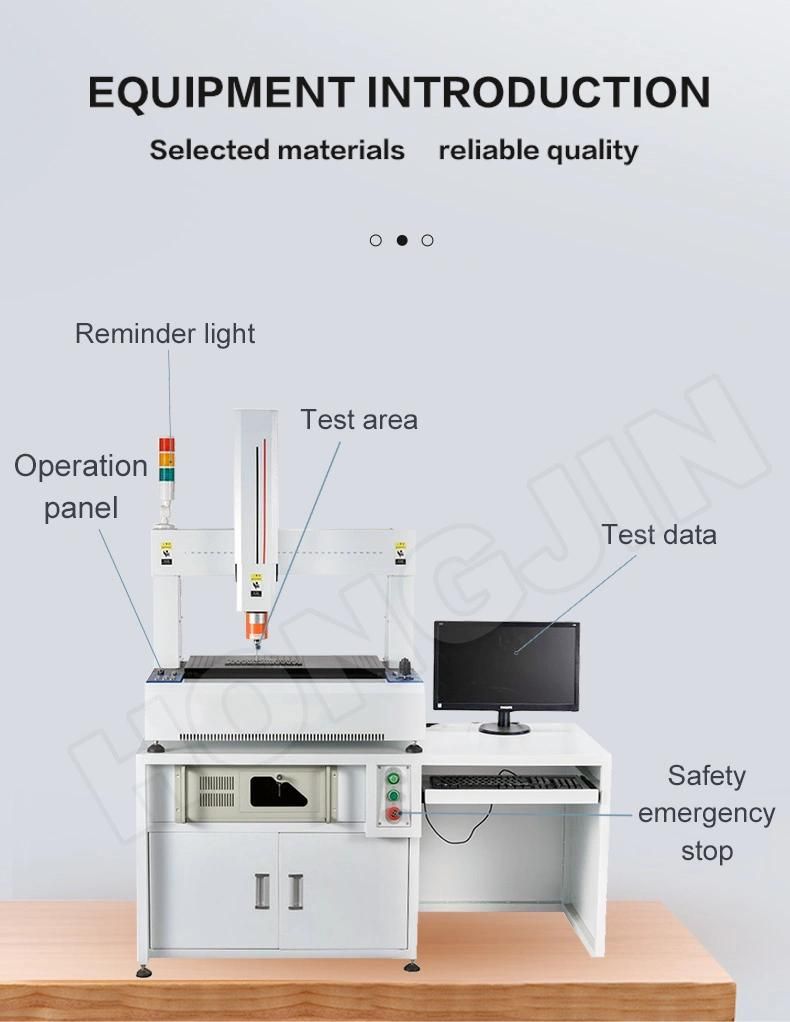

The multi-function high-precision load curve tester is mainly suitable for (load-stroke) curve test of various buttons and switches. It is set in writing in the Windows Chinese window, and the operation is simple and convenient, and all data can be stored (test conditions, load curve diagrams) , test results, inspection reports, etc.). This machine is driven by a high-precision motor, which can provide high-precision (load-stroke) measurement, and can obtain completely accurate button and switch curve tests.

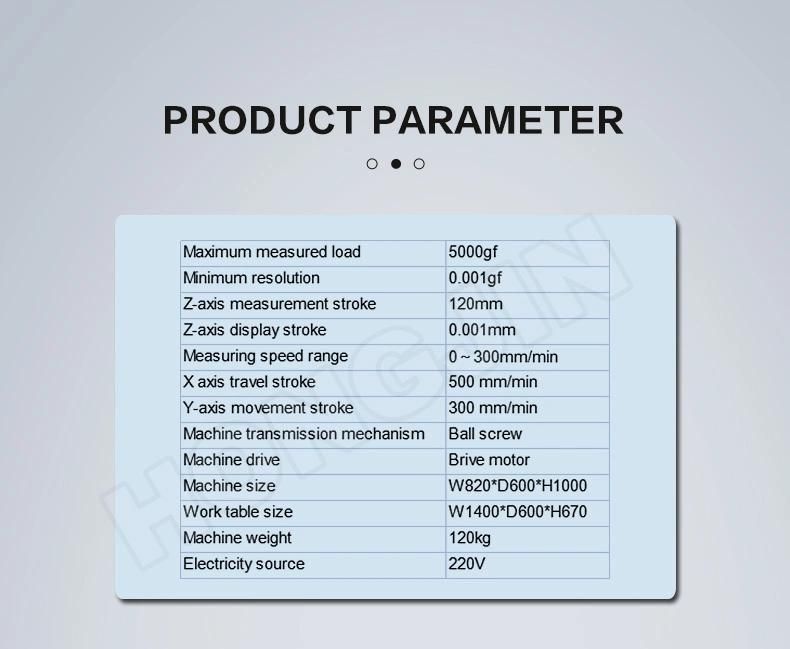

Maximum measured load	5000gf
Minimum resolution	0.001gf
Z-axis measurement stroke	120mm
Z-axis display stroke	0.001mm
Measuring speed range	0~300mm/min
X axis travel stroke	500 mm/min
Y-axis movement stroke	300 mm/min
Machine transmission mechanism	Ball screw
Machine drive	Brive motor
Machine size	W820*D600*H1000 mm
Work table size	W1400*D600*H670 mm
Machine weight	120kg
Electricity source	220V

Test product:

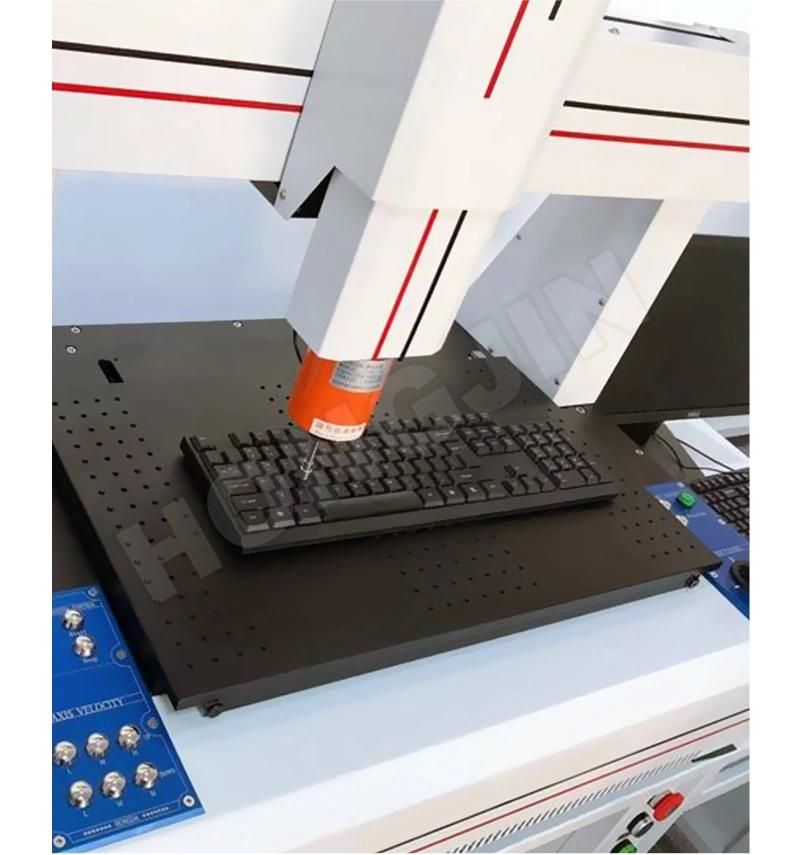

1.Keyboard of computer keyboard
2.Laptop keyboard keys
3.Keyboard keycap
4.Mobile phone button
5.Calculator button
6.Remote control button
