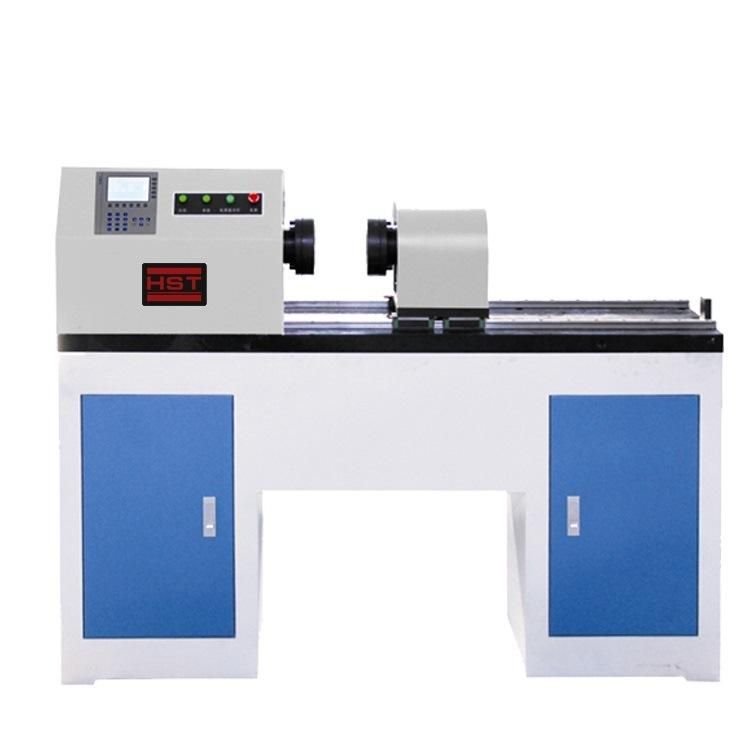

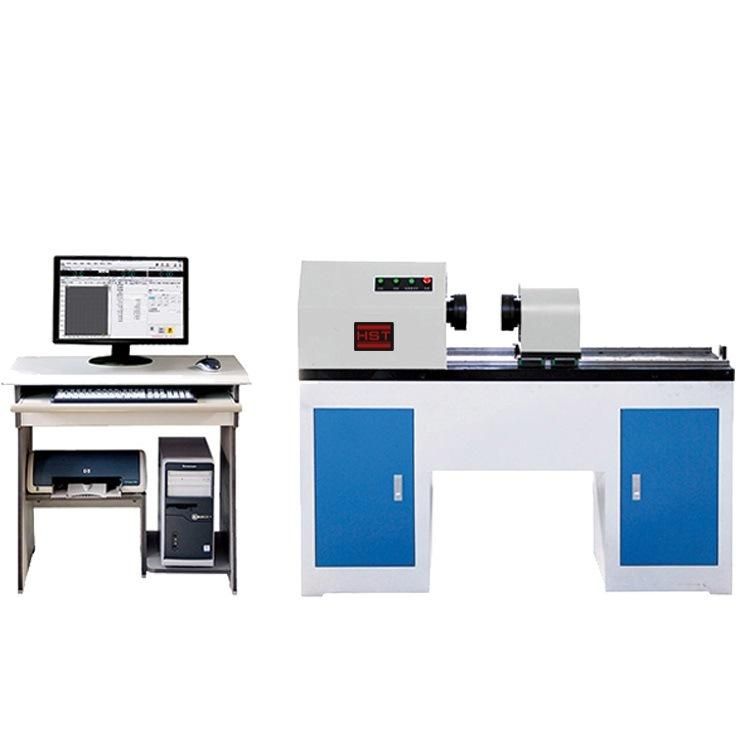

Ez-3 Wire Torsion Testing Machine for Wire Diameter 0.2-3.0mm

Jinan Kason Testing Equipment Co., Ltd.
  • Type：Torsion Testing Machine
  • Accuracy Grade：1
  • Loading Method：Static Load
  • Display：Digital
  • Control：Manual Control
  • Weight：100-500Kg

Base Info

  • Model NO.：EZ-3
  • Power Source：AC380V
  • Transport Package：Plywood Exporting Package
  • Specification：350kg, 1.35CBM, color can customize
  • Trademark：HST
  • Origin：Jinan, Shandong, China
  • HS Code：9024109000
  • Production Capacity：1000 Sets,Month

Description

Auto-loadingMax. Clamp metal wire diameter (mm)Ф0.2-Ф3.0Ф1-Ф10Parallelism of the full moving guide≤0.2Max. distance of two chucks  (mm)320520Rotation speed adjusting range (r/min)0-1800-60Velocity error<±1%Min. number of circle values0.1Two chuck alignment(mm)<Ф0.4Jaw hardness(HRC)55-65Farmar error±0.5%Work Noise (dB)≤70Min. revolutions reading values(r)1Power SupplyAC 220V±10%,50Hz5. Configuration :

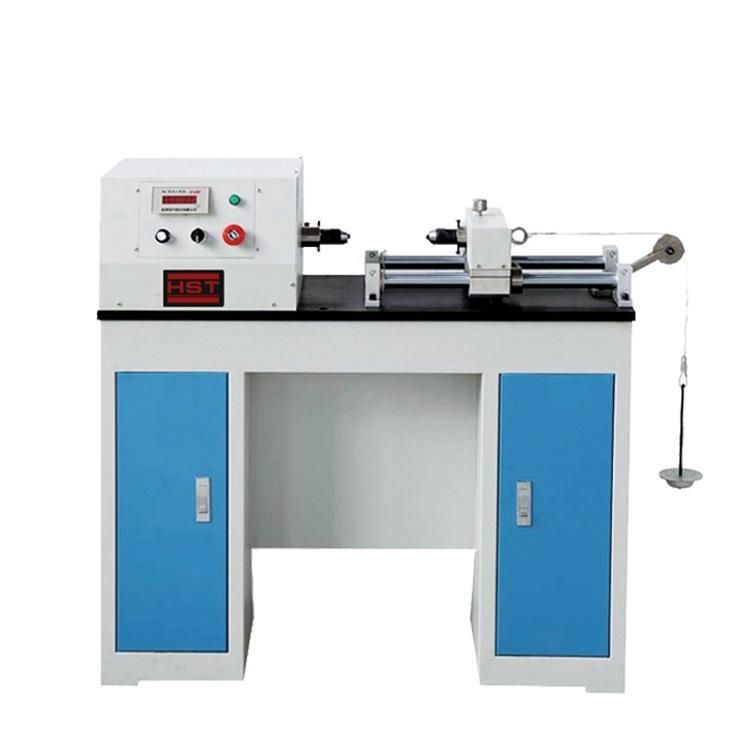

Desktop high strength wire torsion host--- 1 Set
1.1 High performance deceleration system --- 1 Set ;
1.2 High precision Taiwan ABBA linear bearings ---- 2 Set ;
1.3 Dedicated wire grip fixtures --- 1 Set ;
1.4 Special tension weights ---- 1 Set ;
Measurement and Control Systems:
2.1 Photoelectric revolving speed measuring device ---- 1 Set ;
2.2 DC speed governing drive ---- 1 Set ;
2.3 DC variable speed motors---- 1 Set ;
2.4 Monitoring and electrical control system ---- 1 Set.
