• Model NO.：GBS-60
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Transport Package：Plywood Exporting Package
• Specification：270kg 1.3CMB
• Trademark：HST
• Origin：Jinan, Shandong, China
• HS Code：9031809090
• Production Capacity：800 Set,Month

Basic Info.

Model NO. GBS-60 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Transport Package Plywood Exporting Package Specification 270kg 1.3CMB Trademark HST Origin Jinan, Shandong, China HS Code 9031809090 Production Capacity 800 Set/Month

Product Description

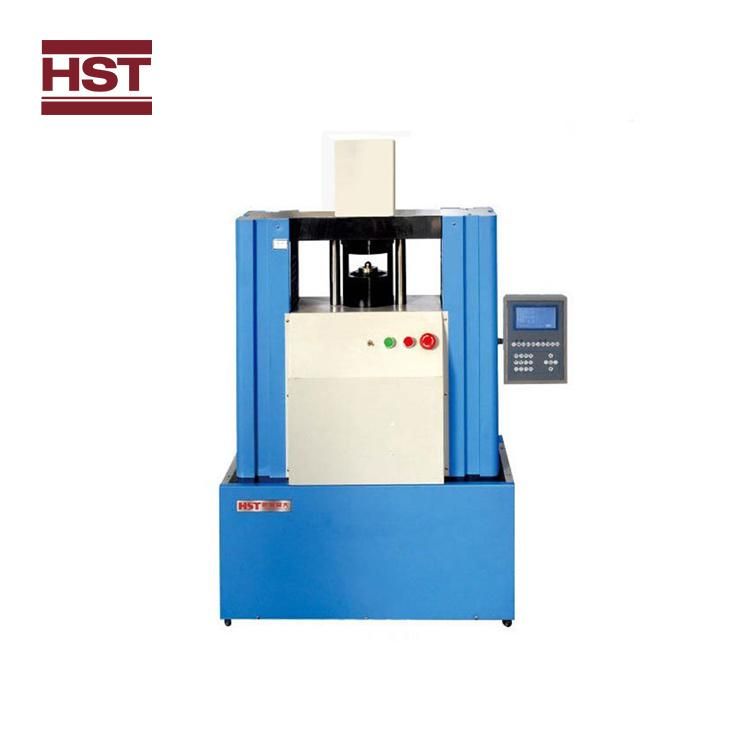

GBS-60 Digital Display Erichsen Cupping Testing Machine
 1. Application & Features:
The cupping testing machine is used to test extend and stretch capacity of metal thin plate and band. It is the only instrument to test the metal's plastic deformation. Also it can be used to test non-ferrous metals anisotropic character if adding impact cup mould. The machine adopts high precision raster measure instrument to test Erichsen value so it has a high testing precision. It adopts the electric control machinery onload and LCD spoke sensor so it raised the testing precision of the main test force and accuracy of controlling sample breaking.

2. Standards:
ISO20482: 2003 Metallic materials-Sheet and strip-Erichsen Cupping Test, GB/T4156-2007 Metallic materials-Sheet and strip-Erichsen Cupping Test.

3. Feature:
1.Use a servo motor to load instead of hydraulic piston and cylinder;
2. Change oil pressure cylinder to load cell, more precision and reliable;
3.Auto stop when crack appears, convenient to observe the crack;
4.With peak value memory function, like max. punch load, max. deformation deep etc;
5,Turnover grips, punch and sample is easy to change;

4. specification:

Model	GBS-60
Specimen thickness	0.1-2mm
Max Specimen width	100mm
Max Punch stroke	60mm
Clamping piston stroke	19-21mm
Max. punching load	60Kn
Max. clamping load	25Kn
Standard punch diameter	Φ20±0.05mm
Standard cushion mold hole diameter	Φ33±0.1mm
Standard press mold hole diameter	Φ27±0.05mm
Display resolution	0.01mm
Speed	2-100mm/min
Display resolution	0.01mm
Display mode	LCD display
Display value	Clamping force, stamping force, displacement and cup drawing value, speed rate
Control mode	Manul adjust speed rate, Automatic adjust and record cup drawing value
Structure	Composite cylinder, double oil pump supply oil, grating measurement

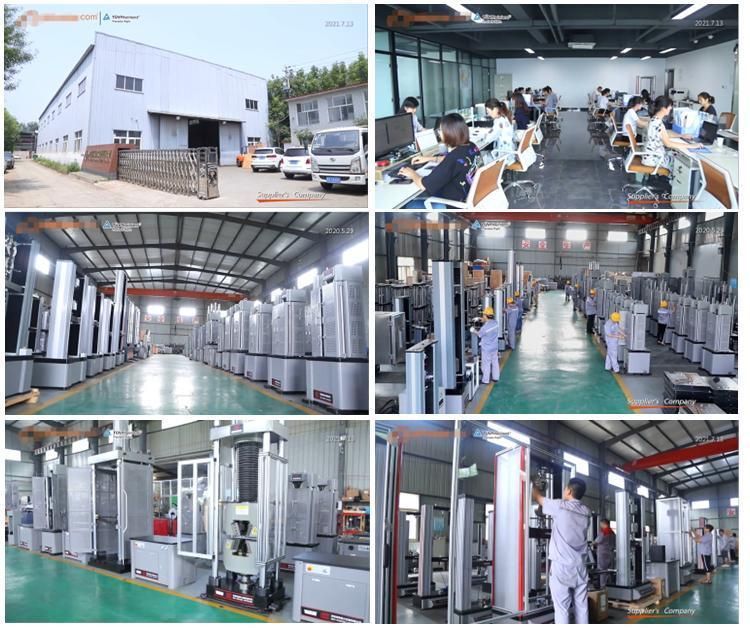

WORK SHOP  EXHIBITON  OUR Customers all over the world    CERTIFICATE  Packaging&Shipping
