• Model NO.：YOT-1000
• Control：Controller
• Weight：100-500Kg
• Power Source：AC220V; AC380V
• Oil Cylinder Position：N,a
• Inner Size：1000*1000*1000mm
• External Size：1500*1900*1550mm
• Resolution：0.01 Degree
• Temp. Range：Rt~80 Degrees
• Circulation：Cooling Fan
• Temp. Fluctuation：+,- 0.5 Degree
• Temp. Uniformity：+,- 1.5 Degree
• Ozone Concentration：0~1000pphm, Adjustable
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Exterior Chamber Material：Cold Rolled Sheet+Powder Coating
• Insulaiton：PU
• Ozone Control Precision：+,- 10%
• Ozone Production Mode：Ozonator
• Sample Frame：Static and Dynamic Fixtures
• Service：Customized
• Transport Package：Strong Wood Carton
• Specification：SGS, BV Certification
• Trademark：Yuanyao
• Origin：China
• HS Code：8514109000
• Production Capacity：100 Sets,Month

RT~80ºCTemperature fluctuation±0.5ºCTemperature uniformity±1.5ºC; Empty load, 30 mins after stanlizationResolution0.01ºCOzone concentration0~1000PPHM, adjustable (Optional: 0~500ppm non-standardozone control precision±10%Ozone production modeOzonatorSample frameStatic and Dynamic fixturesSample frame speed360° rotation (1 circle/minuteMaterialSUS#304 Stainless steel for inner chamber, cold rolled sheet + powder coating for external chamberInsulationPUCirculation systemCooling fanHeating systemSUS# stainless steel high speed heaterControlling systemDigital electrinic indicator + SSR+ PIDRefrigeration systemcompressor + Fin type evaporator + air/water cooling systemOzone concentration analyzerImported ozone concentration analyzerOzone generatorSilent discharge ozone generatorOther components1. Muti-layer vacuum glass obvervation window2. Controlling status indicator lamp 3. Chamber lightSafety protection device1. Over-heat protection 2. phase sequence protection 3. overload protectionPower supplyAC 1ψ220V; 3ψ380V 60/50HzCustomization serviceNon-standard or special requirements are all welcome

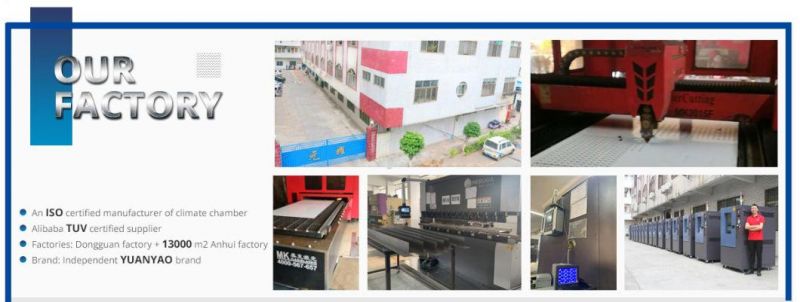

Company Introduce





Product Package


Overseas Installation, Training and Maintenance



Customers Visit Us



Exhibition




Certification



Customers' Feedback

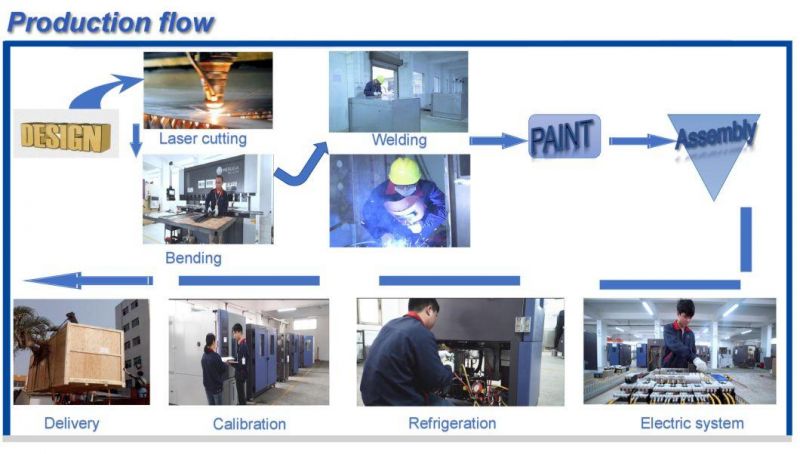

Production Process


Except laboratory plastic ozone aging test chamber, Guangdong Yuanyao Test Equipment Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.


Welcome to enquire and purchase!
