• Model NO.：STWKY-1
• Loading Method：No
• Display：No
• Control：Manual Control
• Weight：15kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stwky-1 Standard Vicat Apparatus
• Needle：1mm Diameter and 50mm Long
• Mould：70mm Base Diameter and 60mm Top Diameter, 40mm Lon
• Plunger Diameter：100mm and Weight 300g, Scale Gratuated in Millimet
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STWKY-1 Loading Method No Display No Control Manual Control Weight 15kgs Power Source AC220V Oil Cylinder Position No Product Name Stwky-1 Standard Vicat Apparatus Needle 1mm Diameter and 50mm Long Mould 70mm Base Diameter and 60mm Top Diameter, 40mm Lon Plunger Diameter 100mm and Weight 300g, Scale Gratuated in Millimet Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

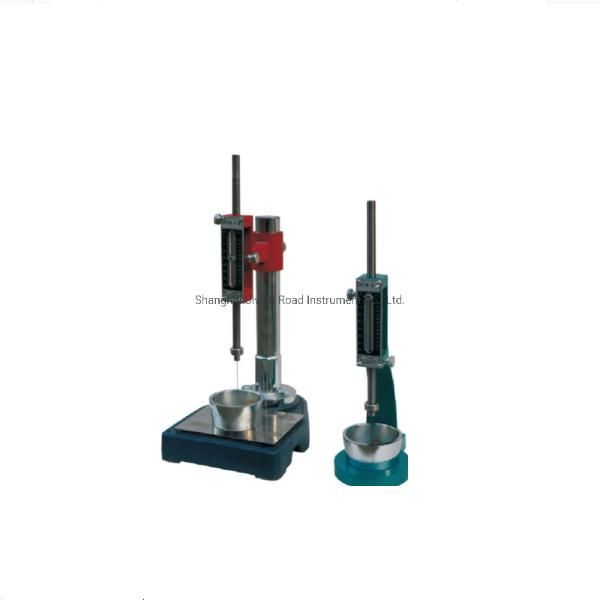

STWKY-1 Standard Vicat apparatus
Meet Standards:GB/T1346 , ASTM C187, ISO9597 standards.
I. Application
Used for determination of setting time and consistency of cement by Vicat Method.The apparatus consists of a metal frame with a sliding rod. An adjustable indicator moves over a graduated scale. The needle or plunger is attached to the bottom end of the rod to make up the test weight of 300g. The frame is supplied without accessories,which have to be ordered separately depending on the requirement.

Comprising:Vicat frame,Vicat mould,Consistency plunger 10 mm dia.,Supporting glass plate

Specification:

Product Model	STWKY-1
Weight of sliding part	300g
Max. fall distance	70mm
Net weight	3.8kg
Initial needle	Diameter 1.13mm
Final needle	Diameter 1.13mm
Needle	50mm long
Mould	70mm base diameter and 60mm top diameter, 40mm long
Features	Plunger diameter 100mm and weight 300g, scale gratuated in millimeters
